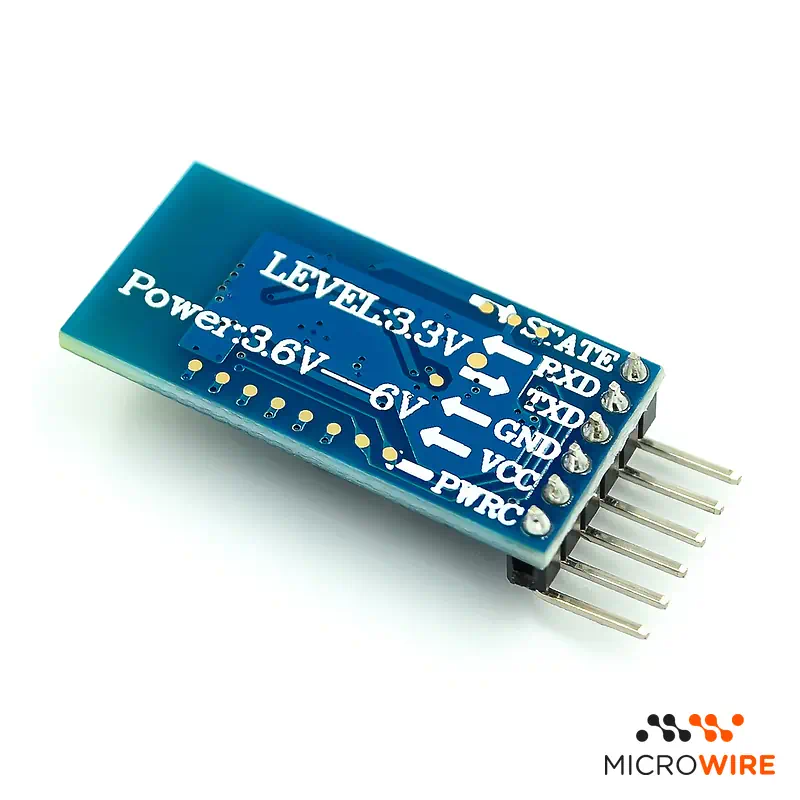

JDY-33 Bluetooth Module

JDY-33 Bluetooth Module

The JDY-33 Bluetooth Module is a circuit composed of a bluetooth transmitter and receiver with communication via Serial UART, which facilitates the connection with Arduino, PIC or Raspberry Pi, since its voltage is 1.8-3.6V. This module is an improved version of the most well-known versions, namely: HC-05, HC-06, JDY-30 and JDY-31 and is also compatible with them.

Specifications:

• Model No.: JDY-33
• Compatibility:
  • HC-05
  • HC-06
  • JDY-30
  • JDY-31
• Operating Frequency Band: 2.4GHZ
• Communication Interface: UART
• Operation Voltage: 1.8V to 3.6V (3.3V recommended)
• Operating Temperature: -40ºC to +80ºC

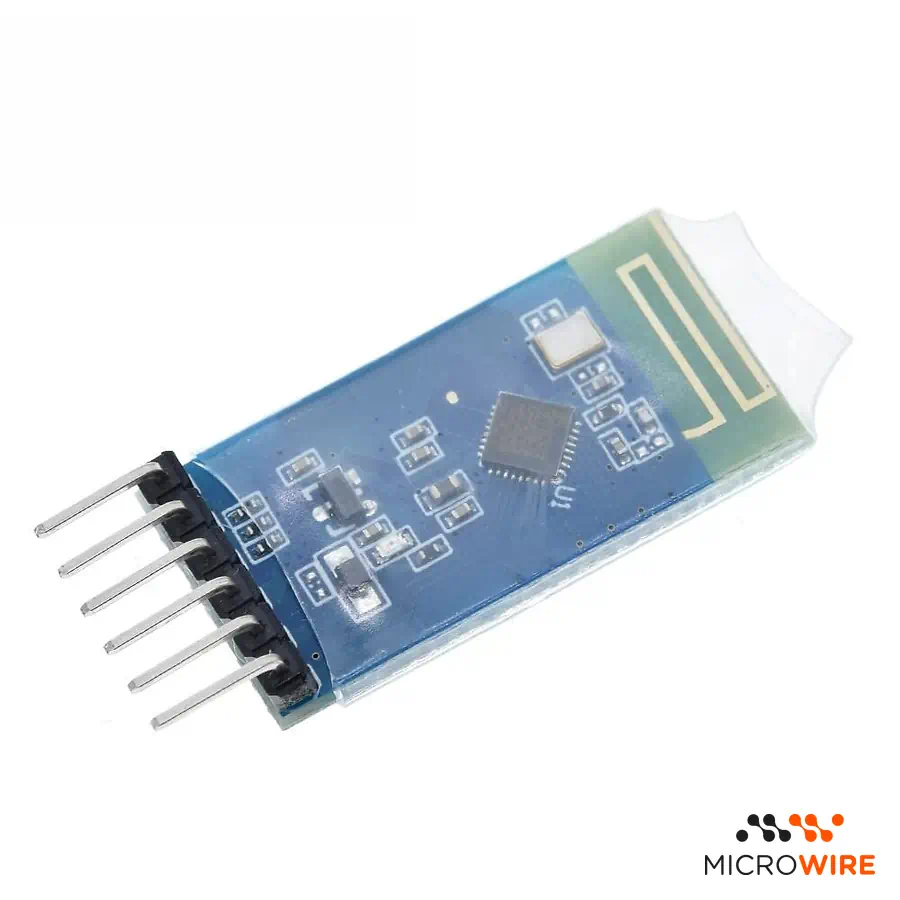

• Antenna: Integrated into PCB
• Transmission Distance: 30m
• Dimensions: 26.7 x 13 x 1.7mm
• Current: +/- 6.5mA
