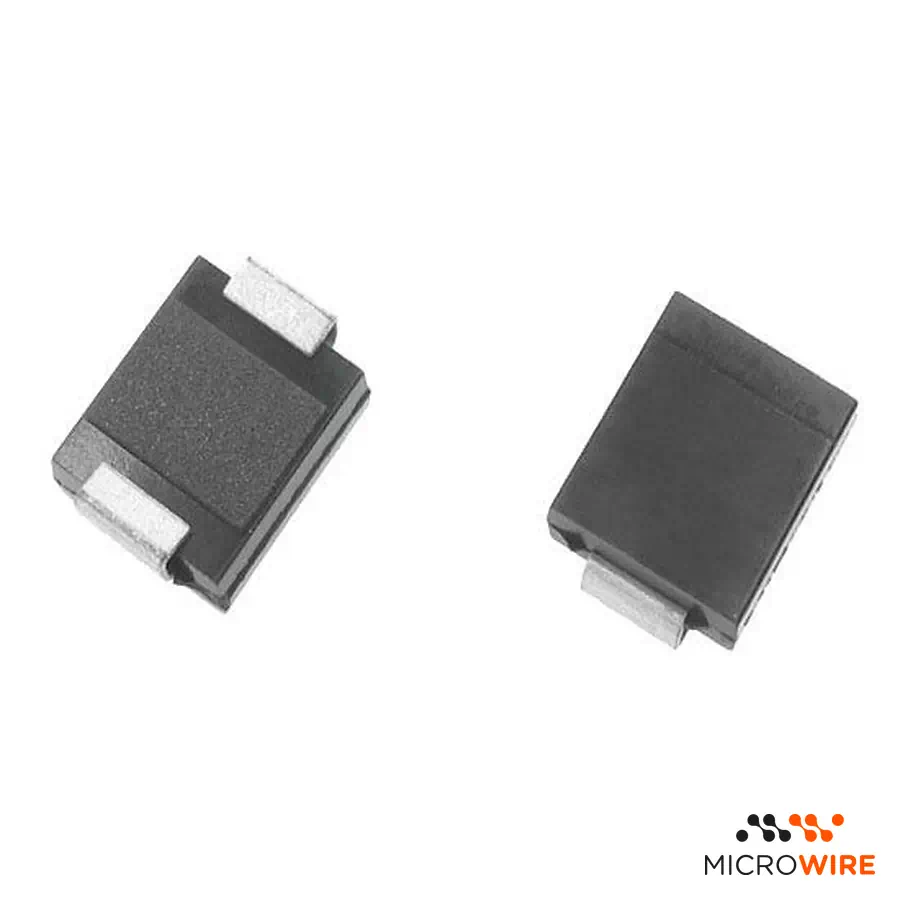

SS34 – Schottky Diode 3A 40V SMD

Manufacturer Information:

Product: Schottky Rectifiers
Mounting Style: SMD/SMT
Box/Cabinet: SMC (DO-214AB)
Configuration: Single
Technology: Si
If – Direct current: 3 A
Vrrm – Repetitive Reverse Voltage: 40 V
Vf – Forward Voltage: 500 mV
Ifsm – Surge current in direct direction: 100 A
IR – Reverse current: 500 uA
Minimum operating temperature: -55 C
Maximum operating temperature: +150 C
Series: SS34
Packing: Reel
Packing: Cut Tape
Packaging: MouseReel
Brand Name: onsemi / Fairchild
Height: 2.45 mm
Length: 7.15 mm
Product Type: Schottky Diodes & Rectifiers
