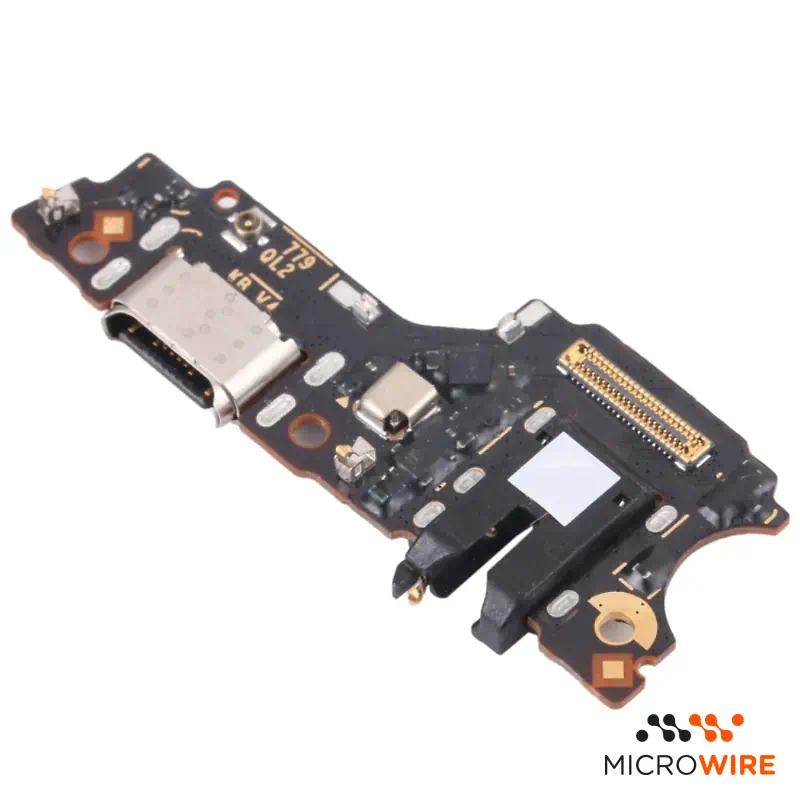

Charging Port Oppo A32 A33 A53 A53S

Charging Port for Oppo A32, A33, A53 and A53s: Stable and Efficient USB Connection

Esta charging port restructures the power and data flow in Oppo A32, Oppo A33, Oppo A53 and Oppo A53s mobile phones. Suitable to replace a charging sub-board with a damaged connector or looseness caused by daily use. It allows you to recover the firm contact of the cable and the stable operation of the lower circuit.

Technical Specifications

• Part type: Sub-board with USB-C charging port
• Compatibility: Oppo A32; Oppo A33 (CPH2137); Oppo A53 (CPH2127); Oppo A53s (CPH2135, CPH2139)
• Quality: Premium

When to Replace

• The mobile phone does not detect the cable when plugging in the charger.
• Poor contact or the need to position the cable at a specific angle to charge.
• Difficulty of recognition when connecting the device to the computer for data transfer.
• Presence of compacted dirt, broken pins or visible corrosion inside the USB inlet.
• Excessively slow or intermittent charging — confirm the diagnosis.

Notes for the Technician

• Test before applying: before securing, confirm charging and, if applicable, data transfer and the microphone. Thus, if there is any problem, the return or warranty is handled quickly and simply.
• Difficulty: Medium. Access is gained by removing the rear cover and the intermediate frame.
• Disconnect the battery before unplugging the coaxial antenna cables and the main interconnection flex from the sub-board.
• Transfer the protective and alignment sealing rubbers from the old component, if applicable to the model.
• Check that the USB connector and coaxial antenna cable are perfectly fitted before closing the chassis.

What Distinguishes This Version

This is a Premium level part, the highest range available in the aftermarket for these devices. It is the appropriate choice for technicians who want a high quality and reliable repair without resorting to lower range components.

Frequently Asked Questions

Does this charging board fit any of the Oppo A32, A33, A53 and A53s models?
Yes, the sub-board shares the same dimensions and connection points between the Oppo A32, Oppo A33, Oppo A53 and Oppo A53s models.

Is it necessary to solder any component to install this part?
No, the component comes ready for direct assembly via the pressure connectors and device fixing screws.
