Charging Port Samsung Galaxy A04E A042

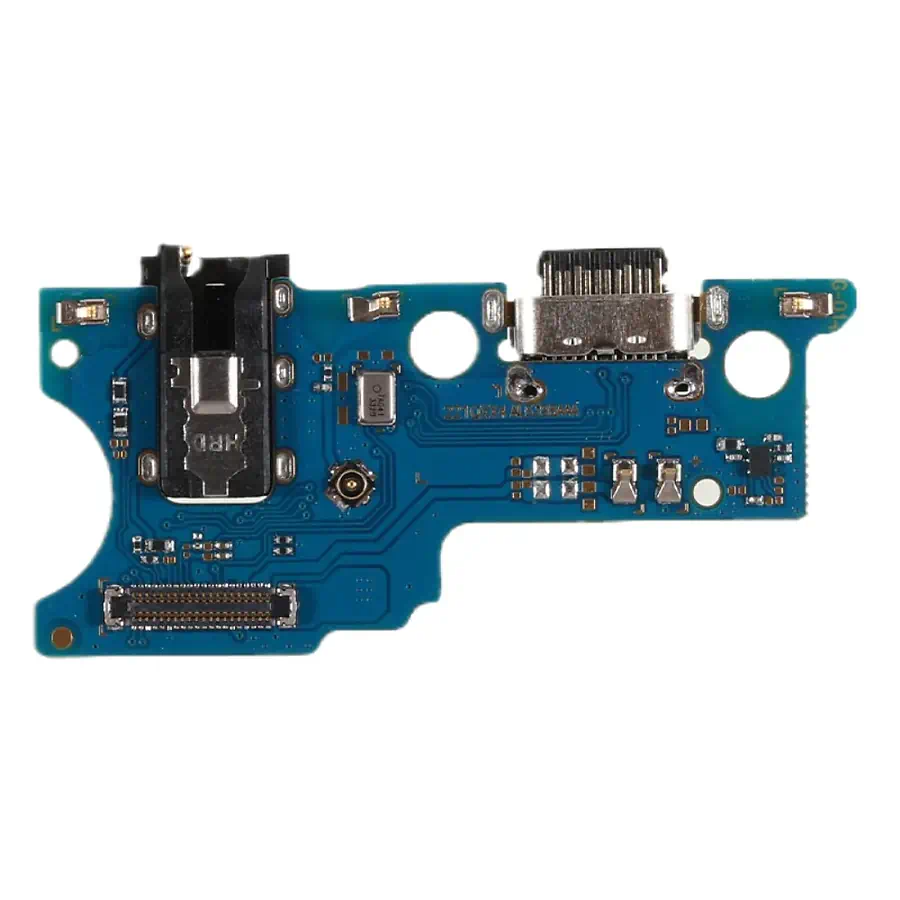

Charging Port for Samsung Galaxy A04e: Stable Charging Replacement

This charging port is intended for replacing the damaged connector on the Samsung Galaxy A04e. It allows you to restore power connection and data transfer via the mobile phone's charging sub-board.

Technical Specifications

• Part type: Charging port (sub-board)
• Compatibility: Samsung Galaxy A04e (SM-A042F, SM-A042M)
• Quality: Compatible

When to Replace

• The phone does not detect the charging cable
• Poor contact when plugging in the USB cable — confirm the diagnosis
• Intermittent charging when moving the plug
• The computer does not recognise the USB connection

Notes for the Technician

• Test before applying: before fixing, confirm charging and, if applicable, data transfer and the microphone. Thus, if there is any issue, return or warranty is handled quickly and simply.
• Difficulty: Easy
• Necessary to remove the plastic back cover and unscrew the lower speaker module
• Disconnect the battery before handling the intermediate flex cable and the charging board
• Re-connect the antenna coaxial cable carefully to the corresponding sub-board connector
• Check correct fitting of the microphone in the lower chassis seal

What Distinguishes This Version

This compatible part offers a practical and economical solution for workshops and professional technicians. It was selected according to Micro Wire reliability criteria to ensure a precise fit in the device chassis.

Frequently Asked Questions

Is this charging board compatible with the standard Samsung Galaxy A04?
No, it was designed exclusively for the dimensions and connectors of the Samsung Galaxy A04e variant (SM-A042).

Is soldering required to install this charging port?
No, it is a complete module that connects directly via pressure connectors (FPC) and snap-in cables.
