Charging Port Samsung Galaxy M53 M536

Charging Port for Samsung Galaxy M53: USB-C Connectivity Restoration

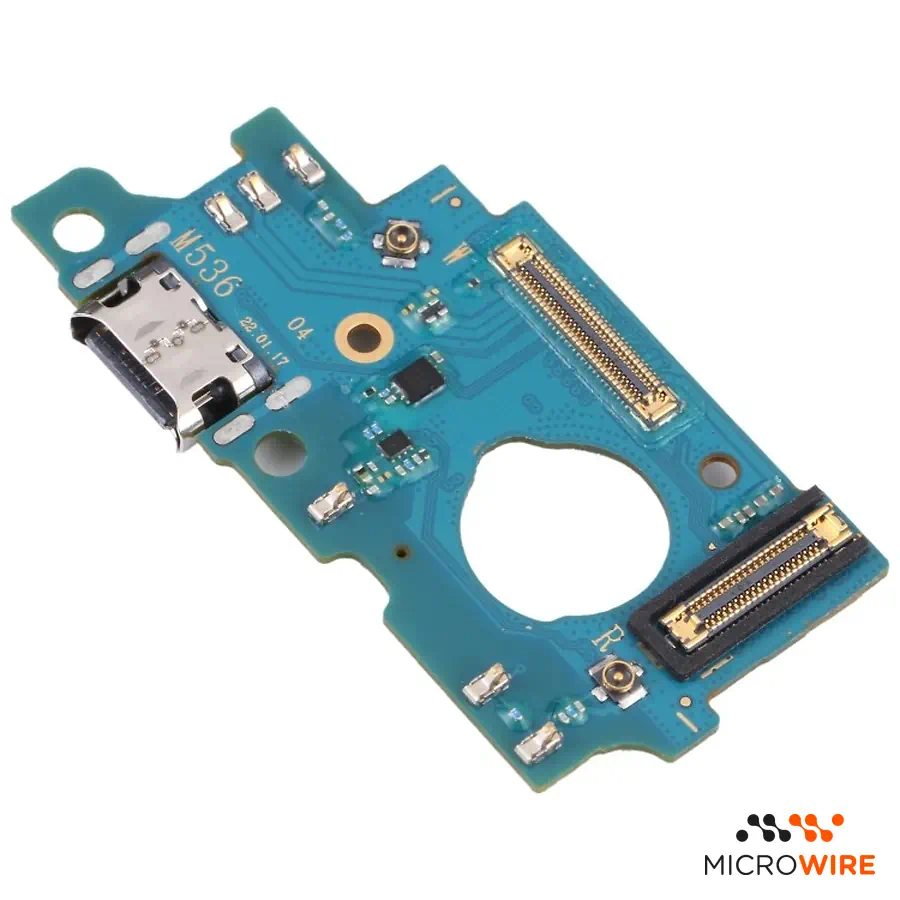

The charging port for Samsung Galaxy M53 is the indicated solution to recover electrical power and data communication for the mobile phone. This charging connector board replaces the damaged module to re-establish the physical connection of the USB-C cable to the device.

Technical Specifications

• Part type: USB-C charging connector board
• Compatibility: Samsung Galaxy M53 5G (SM-M536B, SM-M536B/DS, SM-M536B/DSN)
• Quality: Compatible

When to Replace

• The phone does not detect the charger or does not start charging
• Poor contact when plugging in the cable, requiring force on the plug to charge
• The computer does not recognise the USB connection for data transfer
• Internal pins of the USB-C connector broken or showing signs of oxidation
• Intermittent charging that stops with small movements — confirm the diagnosis

Notes for the Technician

• Test before applying: before securing, confirm charging and, if applicable, data transfer and the microphone. Thus, if there is any issue, the return or warranty is handled quickly and simply.
• Difficulty: Medium
• The intervention requires prior removal of the back cover and bottom shield with an appropriate screwdriver
• Disconnect the battery before handling the interconnect flex cable linking the charging board to the main board
• Check the integrity of the sealing rubbers and the bottom microphone before closing the equipment
• New adhesive for the back cover sold separately

What Distinguishes This Version

This compatible part was selected specifically to offer a reliable and economical alternative in a bench environment. It represents the right choice for technicians performing professional functional repairs without compromising the viability of the client's budget.

Frequently Asked Questions

Is this connector board compatible with all variants of the Samsung Galaxy M53?
Yes, it fits the Galaxy M53 5G model variants identified by the code SM-M536B.

Does replacing the charging port solve computer recognition issues?
Yes, provided the fault originates from the data pins of the damaged connector and not the cable or the main board line.
