Charging Port Samsung Galaxy S22 Plus

Charging Port for Samsung Galaxy S22 Plus: USB-C Connection Restoration

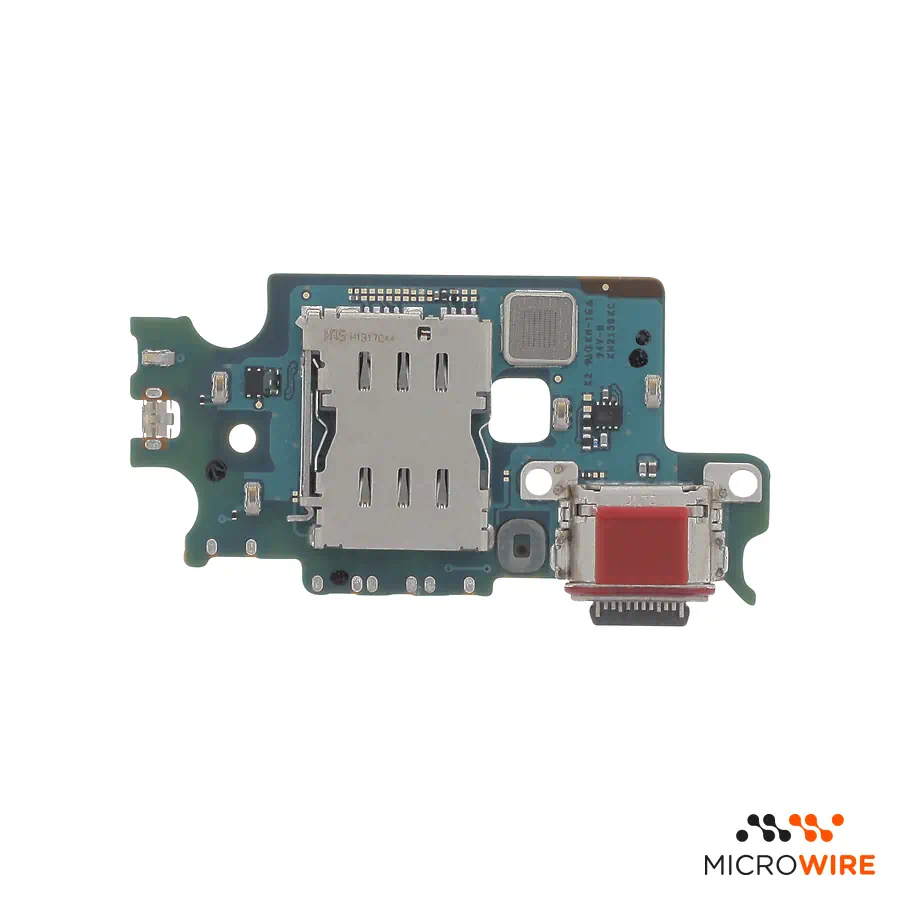

This replacement charging port restores charging and data communication on the Samsung Galaxy S22 Plus. This is the bottom board with a USB-C connector, suitable for replacing components with damaged pins, mechanical play, or electrical contact failures.

Technical Specifications

• Part type: Charging port / sub-board charging board
• Compatibility: Samsung Galaxy S22 Plus (SM-S906B, SM-S906B/DS, SM-S906U, SM-S906U1, SM-S906W, SM-S906N, SM-S9060)
• Connector: USB Type-C
• Quality: Compatible

When to Replace

• The USB-C cable has play or disconnects easily when charging
• The mobile phone does not detect the connection to the socket nor starts charging
• The computer does not recognise the USB data connection — confirm the diagnosis
• Intermittent bad contact that interrupts charging when moving the cable
• Bottom microphone with failures in voice pickup during normal calls — confirm the diagnosis

Notes for the Technician

• Test before applying: before fixing, confirm charging and, if applicable, data transfer and the microphone. Thus, if there is any problem, the return or warranty is handled quickly and simply.
• Difficulty: Medium
• Access requires controlled heating and careful removal of the glass back cover
• Disconnect the battery before handling the flex cables and the bottom board
• Adhesive for closing the back cover sold separately
• Check the connection of the antenna coaxial cables and main flex before closing the equipment

What Distinguishes This Version

This high-end compatible board was selected specifically for professional bench repairs. It is the suitable option for an economical and reliable intervention on out-of-warranty equipment.

Frequently Asked Questions

Does the Galaxy S22 base charging port fit the Galaxy S22 Plus?
No. Although they belong to the same generation, the bottom boards have different dimensions and internal layouts, with this version being exclusive to the Galaxy S22 Plus.

Does replacing this board solve call microphone problems?
Yes, provided the fault lies in the component integrated on this bottom board and not on the motherboard or due to external dirt obstructions.
