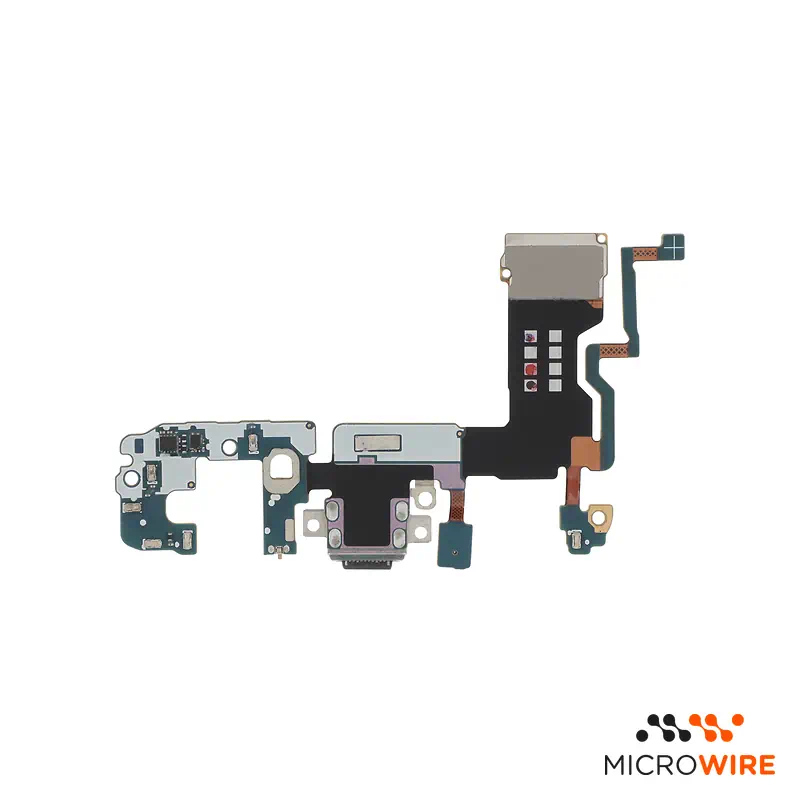

Charging Port Samsung Galaxy S9+

Charging Port for Samsung Galaxy S9+: Restore the USB-C Connection

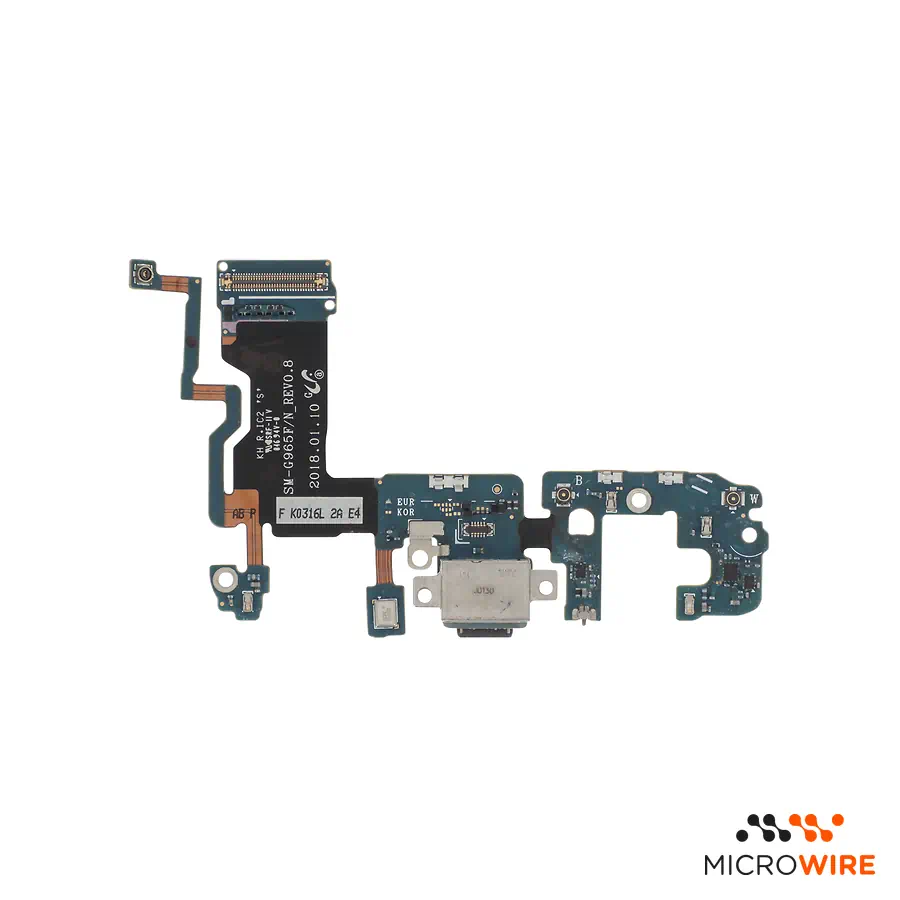

The charging port for Samsung Galaxy S9+ restores stable battery charging and data transfer via cable. This USB-C connector board replaces the module damaged by mechanical wear, moisture or broken pins. A suitable solution for technicians who want to restore proper functionality to the mobile phone without complications.

Technical Specifications

• Part type: Charging port with USB-C connector
• Compatibility: Samsung Galaxy S9+ (SM-G965F, SM-G965U, SM-G965W, SM-G9650)
• Quality: Compatible

When to Replace

• The USB-C cable feels loose or does not click all the way in
• The phone does not recognise the charger or transfer data to the computer
• Intermittent charging that forces you to position the cable at a specific angle
• Presence of corrosion or broken internal pins in the connector
• Temperature or moisture error message on the port with no liquid present — confirm the diagnosis

Notes for the Technician

• Test before applying: before securing, confirm charging and, where applicable, data transfer and microphone. Thus, if there is any problem, the return or warranty is handled quickly and simply.
• Intervention difficulty: Medium.
• Opening carried out via the glass back cover, requiring controlled heat to soften the sealing tape.
• New adhesive to seal the device sold separately.
• Requires removal of the upper middle cover and the lower speaker module to access the secondary board.
• Disconnect the battery cable before handling the flex cables and coaxial antenna connectors connected to the charging board.

What Distinguishes This Version

This compatible part offers the exact dimensions to fit without play in the Galaxy S9+ chassis. It constitutes the indicated choice for technicians and workshops looking for an economical and reliable repair on out-of-warranty equipment.

Frequently Asked Questions

Does the charging port of the standard Galaxy S9 fit the Galaxy S9+?
No. Despite belonging to the same generation, the lower boards have different dimensions and internal layouts, this version being exclusive to the Samsung Galaxy S9+.

Does the installation of this part require soldering?
No, the component is supplied on a flexible secondary board and is fixed by snap-fit and screws, dispensing with direct soldering during assembly.
