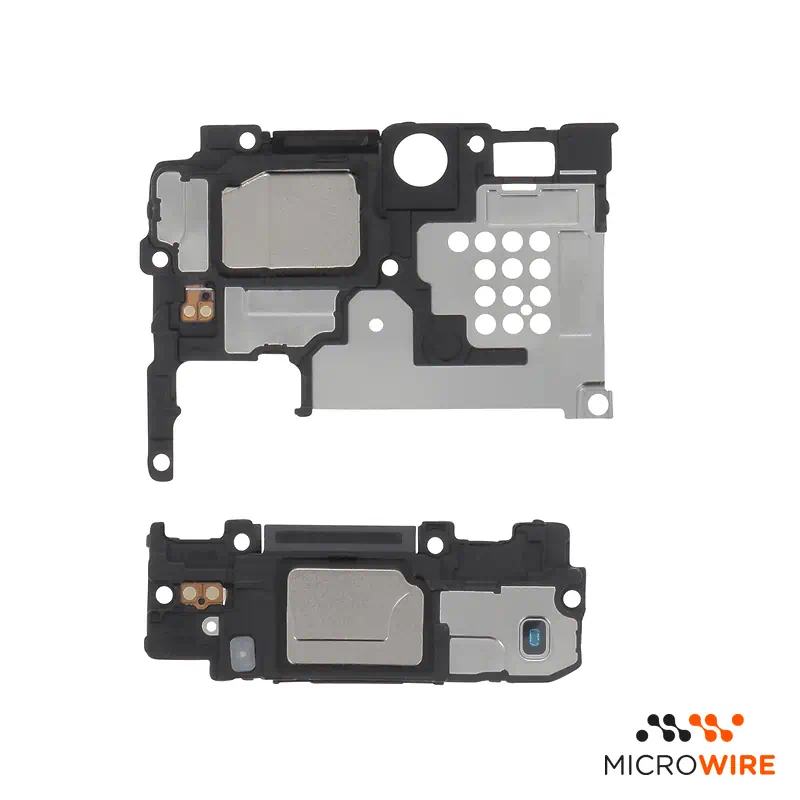

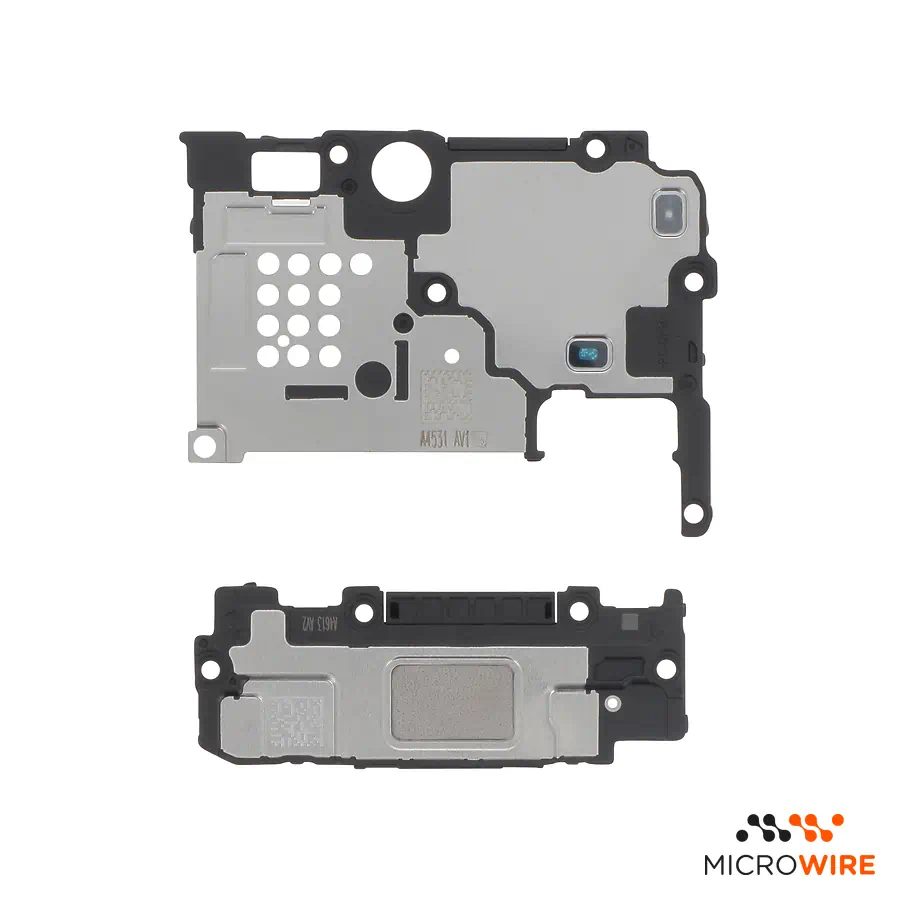

Earpiece Speaker and Loudspeaker Samsung Galaxy Z Fold6

Earpiece Speaker and Loudspeaker for Samsung Galaxy Z Fold6: Call Restoration and Superior Audio

Module of earpiece speaker and loudspeaker for Samsung Galaxy Z Fold6, essential to restore clarity in voice calls and the superior sound system. Ideal to replace a damaged earpiece speaker or one with acoustic distortion.

Technical Specifications

• Part type: Upper earpiece speaker and loudspeaker
• Compatibility: Samsung Galaxy Z Fold6 (SM-F956B, SM-F956B/DS, SM-F956U, SM-F956U1, SM-F956W, SM-F956N, SM-F9560)
• Quality: Compatible

When to Replace

• Voice almost inaudible or no sound during calls in earpiece mode
• Distorted sound, with static noise or crackling when listening to audio through the top of the mobile phone
• Complete absence of sound in the upper speaker — confirm the diagnosis
• Extremely low call volume even at maximum level

Notes for the Technician

• Test before applying: connect the part to the equipment and confirm its operation before fixing or gluing it permanently. Thus, if there is any problem, the return or warranty is handled quickly and simply.
• Installation difficulty: Advanced, due to the foldable architecture of the device.
• Access to the upper module requires careful disassembly of the panel and internal shields.
• Handle the pressure contacts with fine-tipped tweezers to avoid deformations in the fit.
• Sealing and assembly adhesives are sold separately.

What Distinguishes This Version

Compatible replacement part selected to ensure sound fidelity and stable contact on the mobile phone board. It constitutes the right choice for technicians performing advanced maintenance with excellent reliability ratio.

Frequently Asked Questions

Does this component include the main bottom loudspeaker?
No, this module corresponds only to the earpiece speaker / upper loudspeaker located near the top of the Samsung Galaxy Z Fold6.

Is it compatible with the European version SM-F956B?
Yes, the part is compatible with the SM-F956B model and with the remaining variants of the Samsung Galaxy Z Fold6 series.
