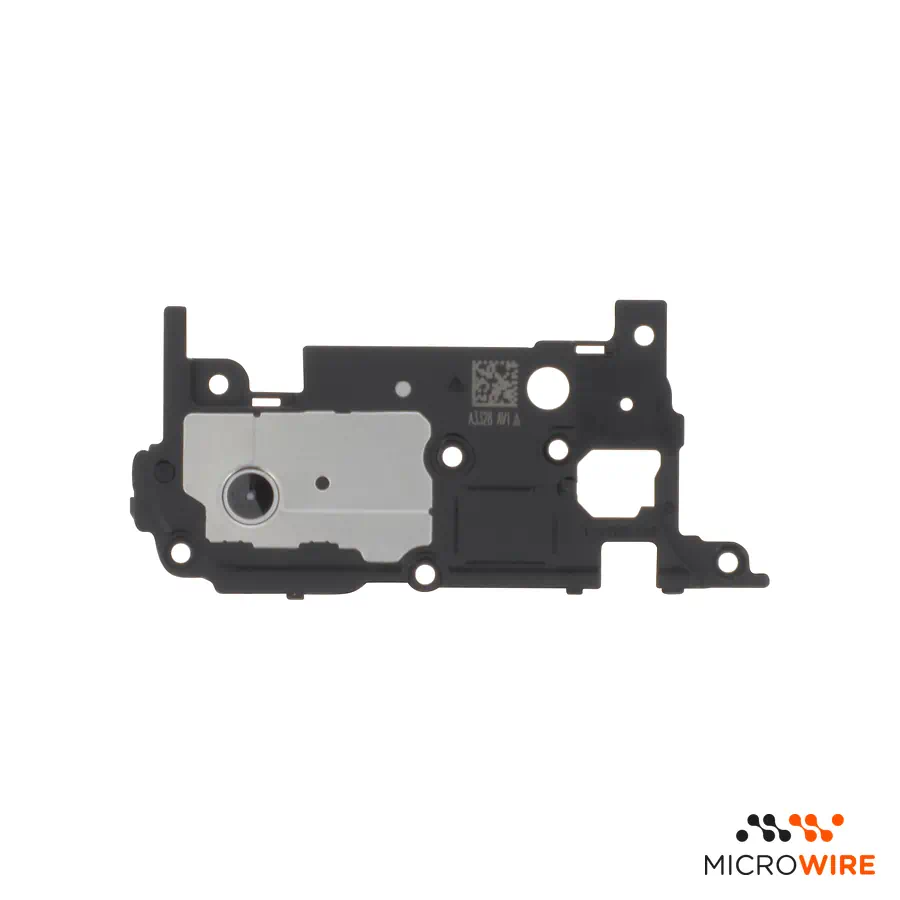

Earpiece Speaker Samsung Galaxy S23

Earpiece Speaker for Samsung Galaxy S23: Clear and Noise-Free Calls

This earpiece speaker for Samsung Galaxy S23 replaces the damaged upper module responsible for voice reproduction during phone calls. This is an upper ear speaker designed to restore sound clarity and resolve communication issues on the device.

Technical Specifications

• Part type: Upper earpiece speaker
• Compatibility: Samsung Galaxy S23 (SM-S911B, SM-S911B/DS, SM-S911U, SM-S911U1, SM-S911W, SM-S911N, SM-S9110)
• Quality: Compatible

When to Replace

• You cannot hear the caller's voice during normal phone calls
• The sound emitted from the top of the mobile phone is distorted, muffled or crackling
• The call reception volume is extremely low even at maximum — confirm diagnosis
• Lack of upper audio output in stereo mode — confirm diagnosis

Notes for the Technician

• Test before applying: connect the part to the device and confirm its operation before securing or gluing it permanently. Thus, if there is any problem, the return or warranty is handled quickly and simply.
• Installation difficulty: Medium
• Accessing the component requires heating and removing the glass back cover with appropriate tools
• It is necessary to unscrew and remove the upper shielding with wireless charging coil to access the ear speaker area
• Be careful with the pressure contacts on the motherboard when positioning the new part
• New back cover sealing adhesive is recommended and sold separately

What Distinguishes This Version

Esta versão de substituição foi criteriosamente selecionada pela Micro Wire para técnicos profissionais que procuram fiabilidade e precisão de encaixe. Proporciona uma reparação económica e eficaz, garantindo o restauro funcional do som em chamadas.

Frequently Asked Questions

Does this earpiece speaker also fit the Galaxy S23 Plus or S23 Ultra?
No, this component was designed specifically for the dimensions and chassis of the Samsung Galaxy S23 (SM-S911B), and is not compatible with other variants in the range.

Is soldering required to apply this earpiece speaker on the Galaxy S23?
No soldering is required, since the connection of the ear speaker to the board is made by pressure contact pins.
