8MP Ultra Wide Rear Camera Xiaomi 12T 12T Pro Redmi Note 12 Pro 5G 12 Pro+ 5G

8MP Ultra Wide Rear Camera for Xiaomi 12T and Redmi Note 12 Pro: Wide-Angle Photographs

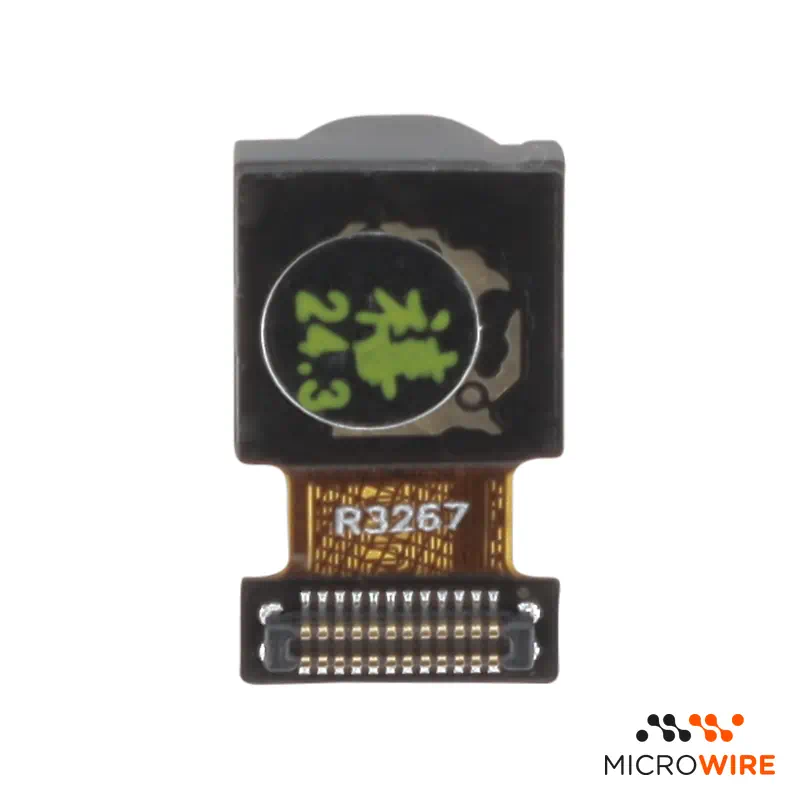

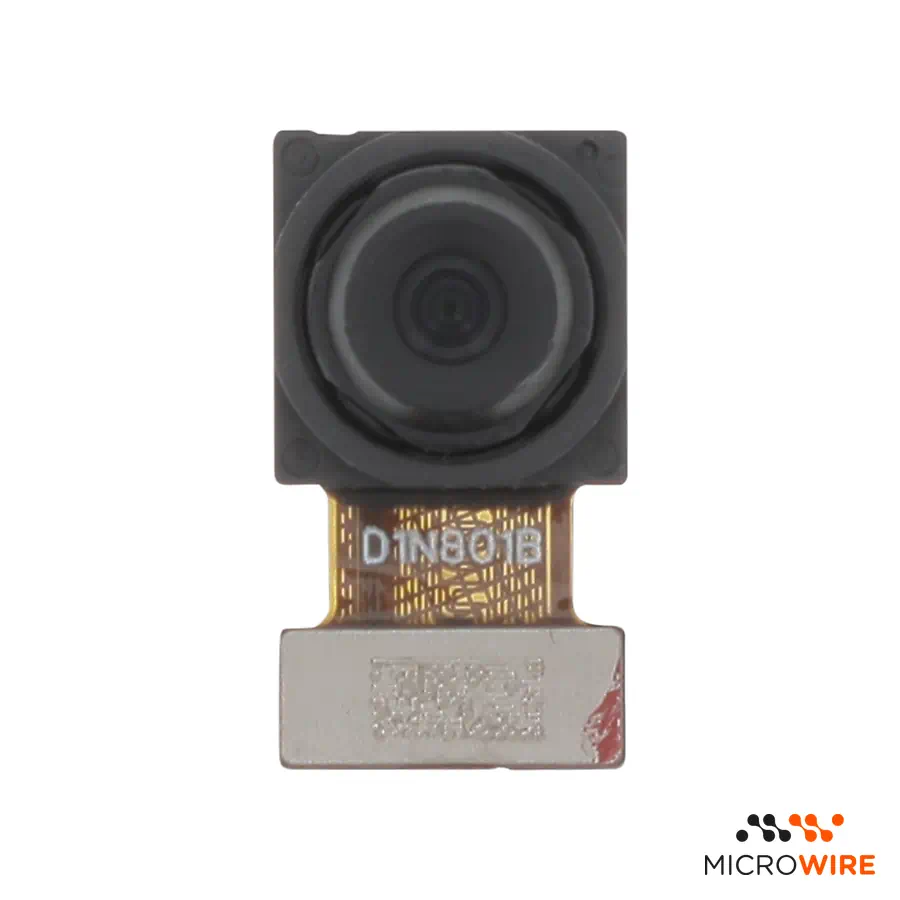

8MP ultra wide rear camera module for replacement in compatible Xiaomi and Redmi mobile phones. This genuine Xiaomi part restores the correct operation of wide-angle captures. It is the suitable solution to resolve optical faults or physical damage to the wide-angle lens.

Technical Specifications

• Part type: Ultra wide rear camera
• Resolution: 8MP
• Compatibility: Xiaomi 12T (22071212AG); Xiaomi 12T Pro (22081212UG); Redmi Note 12 Pro 5G (22101316C, 22101316I, 22101316G); Redmi Note 12 Pro+ 5G (22101316UCP, 22101316UG)
• Quality: Original — Pulled

When to Replace

• The camera application freezes or closes when switching to 0.6x mode (wide-angle).
• Images with permanent spots, internal scratches or blurring in ultra wide mode.
• The camera shows a black screen exclusively when selecting the wide-angle lens — confirm diagnosis.
• Hardware error message when opening the rear camera — confirm diagnosis.

Notes for the Technician

• Test before applying: connect the part to the equipment and confirm its operation before permanently fixing or gluing it. Thus, if there is any problem, the return or warranty is handled quickly and simply.
• Difficulty: Medium.
• The intervention requires removing the back cover and dismantling the upper plastic shielding that covers the motherboard.
• Always disconnect the battery before handling or unplugging the camera FPC connector.
• Do not touch the lens directly or use strong compressed air on the optical sensor to avoid damage or dust.
• Fixing the back cover requires proper new adhesive, sold separately.

What Distinguishes This Version

This is a recovered equipment part, manufactured by the brand with all factory tolerances and features. It is the indicated option for technicians who want a reliable repair without compatibility anomalies.

Frequently Asked Questions

Does this 8MP camera fit interchangeably in the Xiaomi 12T and Redmi Note 12 Pro 5G?
Yes, the 8MP ultra wide optical module shares the same connections and specifications in the Xiaomi 12T, Xiaomi 12T Pro, Redmi Note 12 Pro 5G and Redmi Note 12 Pro+ 5G.

Does replacing this part affect the high-resolution main camera?
No, this module is independent of the main camera and solely replaces the sensor responsible for ultra wide photographs.
