Samsung Galaxy A05 Charging Port

Samsung Galaxy A05 Charging Port: USB-C Connection Restoration

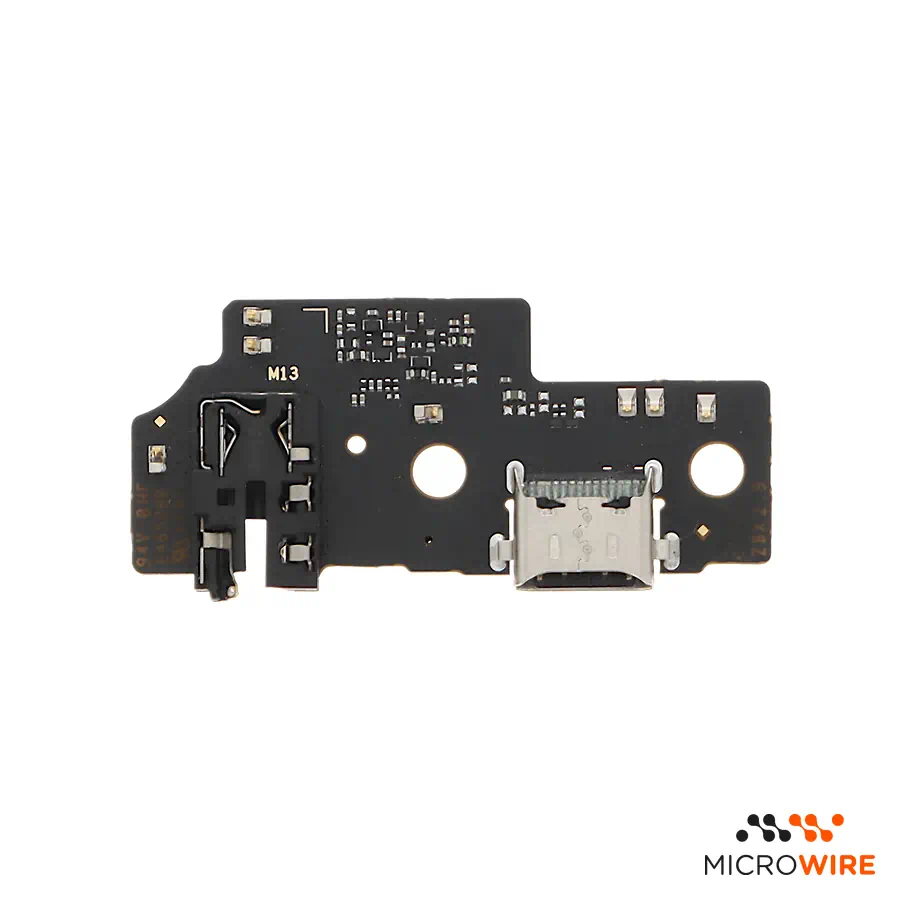

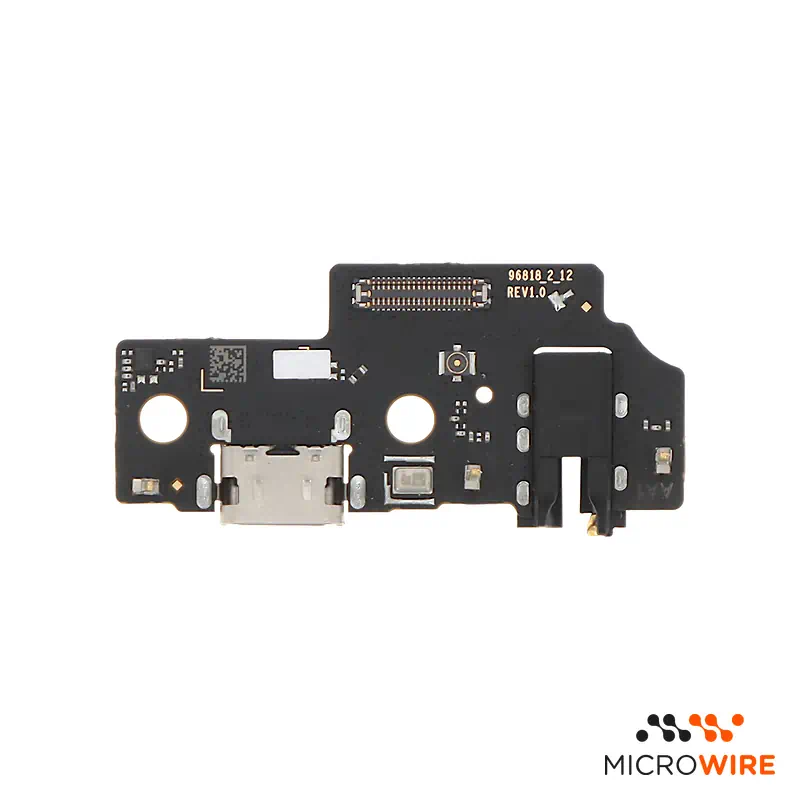

The Samsung Galaxy A05 charging port is the replacement sub-board indicated to restore mobile phone charging and data transfer. This sub-board integrates the USB-C connector and the bottom microphone, returning the correct electrical contact to the device. Ideal for workshops looking for a reliable solution for technical hardware repairs.

Technical Specifications

• Part type: Secondary charging board with USB-C connector
• Compatibility: Samsung Galaxy A05 (SM-A055F, SM-A055F/DS, SM-A055M)
• Quality: Compatible

When to Replace

• The USB-C cable feels loose or disconnects at the slightest movement.
• The phone does not recognise the charger or charge the battery — confirm the diagnosis.
• The computer does not recognise the USB connection for data transfer.
• Callers cannot hear your voice during normal calls (bottom microphone damaged).
• Visible oxidation or broken pins inside the slot.

Notes for the Technician

• Test before applying: before securing, confirm charging and, where applicable, data transfer and the microphone. Thus, if there is any issue, return or warranty is handled quickly and simply.
• Difficulty: Medium. The intervention requires removing the back cover and the intermediate bezel.
• Disconnect the battery before handling or disconnecting the main board interconnect flex cable.
• Be careful with the antenna coaxial cables connected to this board to avoid damaging the U.FL connectors.
• Check the alignment of the microphone seal on the chassis during assembly to ensure audio capture.

What Distinguishes This Version

This is a compatible part selected for professional workshop repair. It is the indicated choice for technicians seeking an economical and functional solution to recover mobile phones with power anomalies.

Frequently Asked Questions

Is this charging board compatible with the Samsung Galaxy A05s?
No, the Samsung Galaxy A05 and the Samsung Galaxy A05s use distinct sub-boards with different flex connectors and dimensions.

Does replacing this part resolve microphone faults in calls?
Yes, provided the audio fault is caused by the bottom microphone integrated into this secondary board.
