Samsung Galaxy A20 Charging Port

Samsung Galaxy A20 Charging Port: USB-C Connector and Microphone

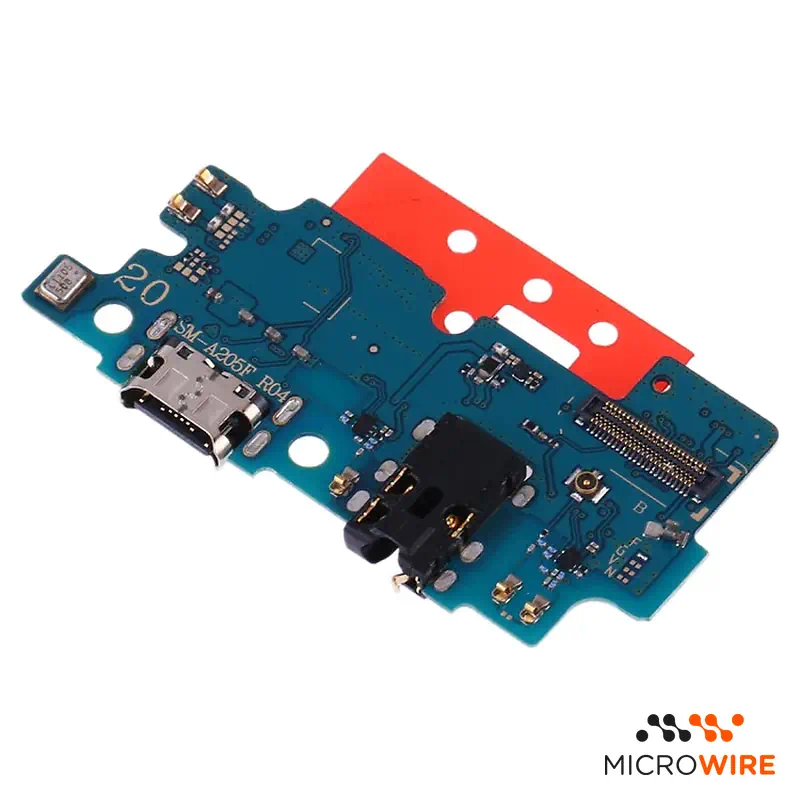

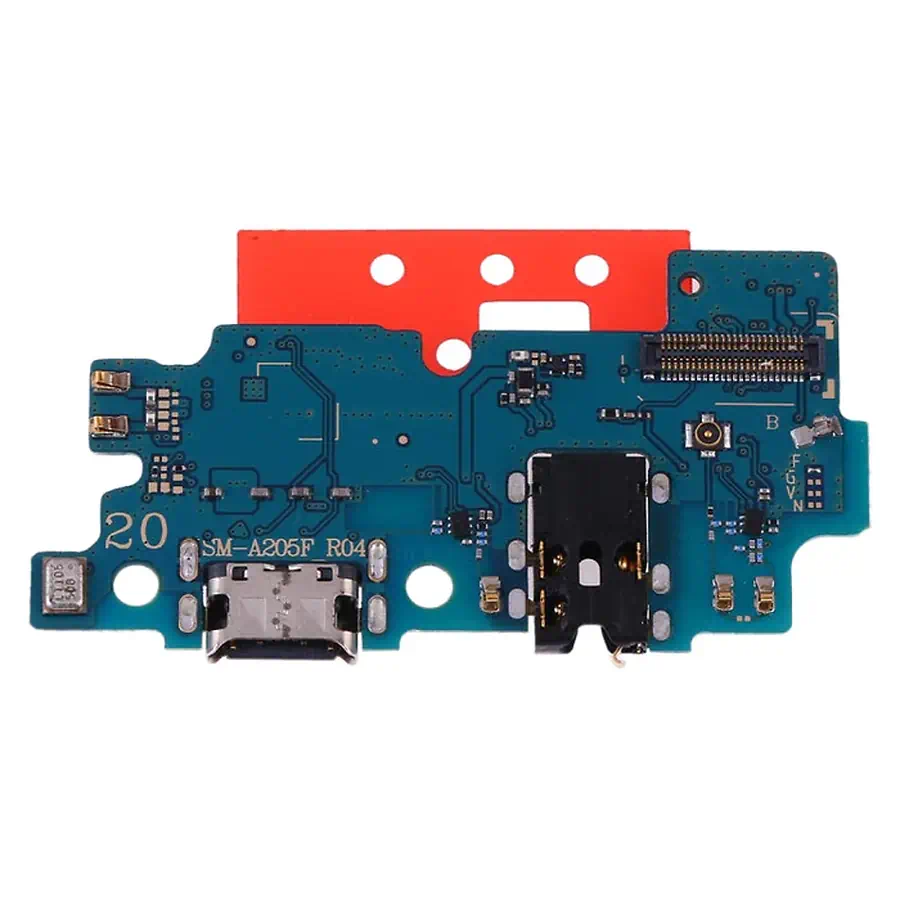

This charging port for the Samsung Galaxy A20 replaces the damaged bottom module to restore power and data transfer. This is a secondary board integrating the USB Type-C input and the main call microphone, essential for resolving common mobile phone faults.

Technical Specifications

• Part type: Charging board and USB-C connector
• Compatibility: Samsung Galaxy A20 (SM-A205F, SM-A205FN, SM-A205G, SM-A205GN, SM-A205U, SM-A205W)
• Quality: Compatible
• Connector type: USB Type-C

When to Replace

• The phone does not charge or charging fails when moving the USB cable
• Poor contact when connecting the data cable to the computer
• Callers cannot hear your voice during calls — confirm diagnosis
• Damaged USB input, with broken pins or trapped dirt

Notes for the Technician

• Test before applying: before fixing, confirm charging and, where applicable, data transfer and the microphone. Thus, if there is any issue, the return or warranty is handled quickly and simply.
• Difficulty: Medium
• Accessing the component requires removing the rear cover and the middle frame fixed by screws
• Disconnect the battery before releasing the interconnect flex cable and the antenna coaxial cable from the old sub-board
• Make sure the microphone rubber seal is properly aligned in the chassis socket
• Adhesive to close the device sold separately

What Distinguishes This Version

This compatible part offers the appropriate dimensions for a precise fit in the Samsung Galaxy A20 chassis. It is the practical and reliable solution indicated for professional technicians to perform an economical and durable repair.

Frequently Asked Questions

Is this charging board compatible with the Samsung Galaxy A20e?
No. The Galaxy A20 and Galaxy A20e use completely different chassis dimensions and lower sub-boards.

Does replacing this charging port resolve microphone issues?
Yes, provided the audio fault is caused by the main microphone integrated into this board and not by a fault on the main board.
