Samsung Galaxy A51 Charging Port

Charging Port for Samsung Galaxy A51: USB-C Connector Repair

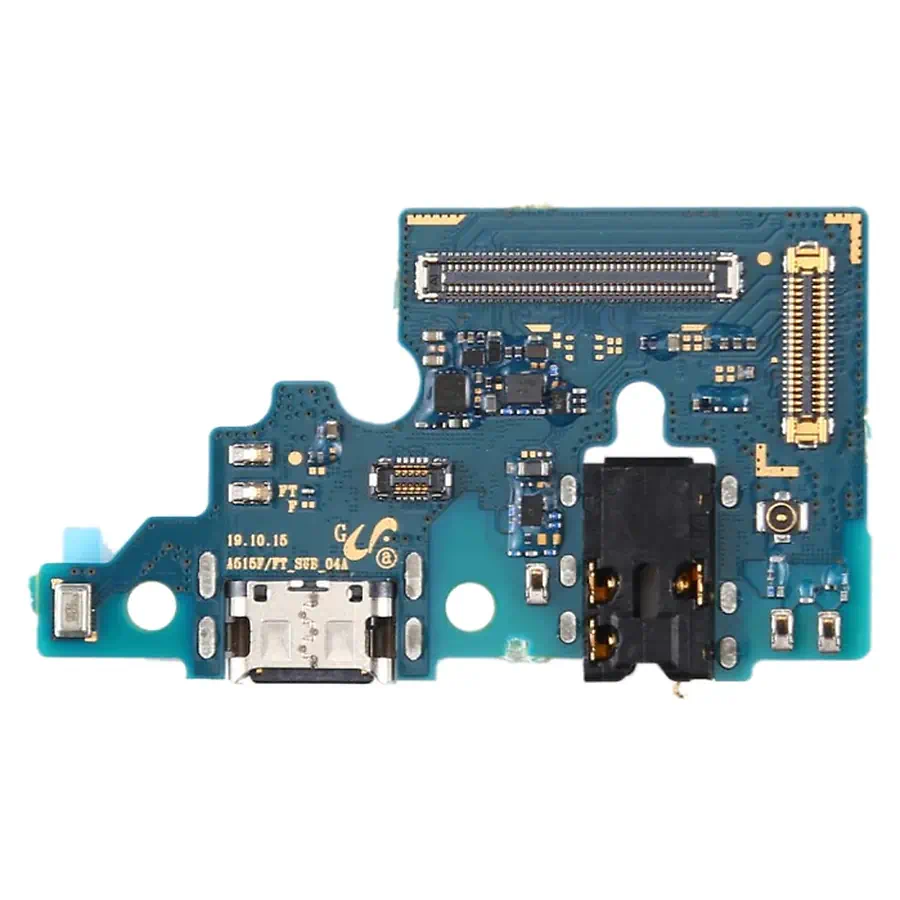

This charging port has been specifically designed to restore power supply and data connection in your mobile phone. It is a daughter board with a USB-C charging port indicated to replace the damaged part in the Samsung Galaxy A51 with total technical reliability.

Technical Specifications

• Part type: Daughter board with USB-C charging port
• Compatibility: Samsung Galaxy A51 (SM-A515F, SM-A515F/DSN, SM-A515F/DS, SM-A515F/DST, SM-A515F/DSM, SM-A515U, SM-A515U1, SM-A515W, SM-A515X)
• Quality: Compatible

When to Replace

• The mobile phone does not detect the cable when plugging in the charger.
• Poor contact when charging, requiring the cable to be positioned at a certain angle.
• The computer does not recognise the USB connection for data transfer.
• Constant interruptions during battery charging — confirm the diagnosis.
• Moisture, dirt or damaged metal pins inside the USB-C slot.

Notes for the Technician

• Test before applying: before fixing, confirm charging and, if applicable, data transfer and microphone. Thus, if there is any problem, the return or warranty is handled quickly and simply.
• Intervention difficulty: Medium.
• Opening of the device carried out via the back cover, requiring moderate heat to soften the adhesive (closing adhesive sold separately).
• Requires removal of the middle frame and fixing screws before accessing the bottom board.
• Disconnect the battery before unplugging the antenna coaxial cable and the main interconnection flex from the charging board.
• Check the integrity of the sealing rubbers and align the connector perfectly with the chassis opening during assembly.

What Distinguishes This Version

Esta pieza compatible de substituição was rigorously selected by Micro Wire for professional bench repairs. It is the balanced choice for technicians and clients looking for a reliable solution to resolve charging system faults.

Frequently Asked Questions

Is this board compatible with the 5G variant of the Galaxy A51?
No, this version is intended only for 4G variants (SM-A515F, SM-A515U, among others), as the layout of the flex cables and dimensions of the board differ in the Galaxy A51 5G.

Does the replacement of this part require micro-soldering?
No, the part consists of a complete daughter board that connects directly to the main board via a flexible cable, without the need to solder the USB-C connector on the bench.
