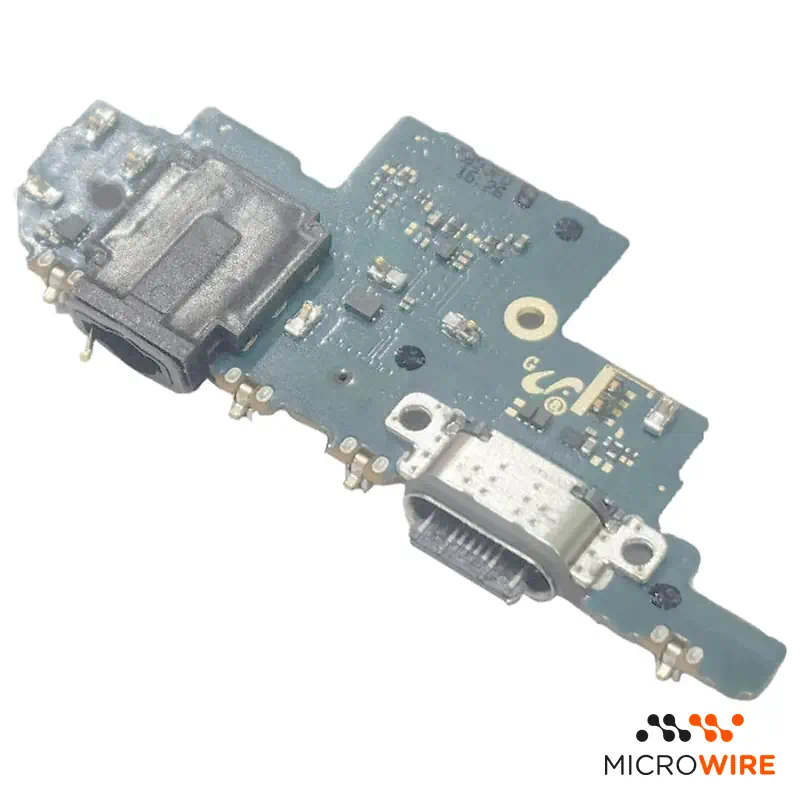

Samsung Galaxy A52 4G 5G Charging Port

Charging Port for Samsung Galaxy A52 4G and 5G: USB-C Connection and Stable Charging

This charging port is an original Samsung part designed to restore power and data synchronisation in compatible models. Replacing the charging sub-board resolves poor contact faults and USB-C cable recognition issues. It restores electrical reliability to your device in a safe and durable way.

Technical Specifications

• Part type: Charging Port and USB-C Sub-board
• Compatibility: Samsung Galaxy A52 4G (SM-A525F, SM-A525M); Samsung Galaxy A52 5G (SM-A526B, SM-A5260)
• Part code: GH96-14121A
• Quality: Original — Pulled

When to Replace

• The phone does not detect the charger or only charges in a specific position
• Poor contact or visible play in the USB-C connector
• The computer does not recognise the equipment via data cable
• Charging is frequently interrupted — confirm the diagnosis
• Bottom microphone with voice capture faults during calls — confirm the diagnosis

Notes for the Technician

• Test before applying: connect the part to the equipment and confirm its operation before fixing or gluing it permanently. Thus, if there is any problem, the return or warranty is handled quickly and simply.
• Installation difficulty: Medium
• Access to the bottom board requires ungluing the back cover and removing the lower plastic shielding
• Disconnect the battery before handling the main interconnect flex cable and the antenna coaxial cables
• Exercise extreme care when ungluing the board from the chassis so as not to damage the printed circuit traces
• It is recommended to use new adhesive for the back cover (sold separately)

What Distinguishes This Version

This version removed from equipment preserves the manufacturing standards and electrical tolerances stipulated by the brand for these devices. It is the recommended choice for professional technicians and workshops looking for reliable components for rigorous repairs.

Frequently Asked Questions

Is this charging board compatible with the Samsung Galaxy A52 4G and the Samsung Galaxy A52 5G?
Yes, the board with code GH96-14121A was developed to ensure full functional compatibility between the Galaxy A52 4G and Galaxy A52 5G variants.

Does replacing this board resolve call microphone issues?
The lower main microphone is integrated into this sub-board, so its replacement can solve audio capture anomalies, provided the fault does not originate in the main board.
