Samsung Galaxy A71 5G A716 Charging Port

Charging Port for Samsung Galaxy A71 5G: Stable Connection and Effective Charging

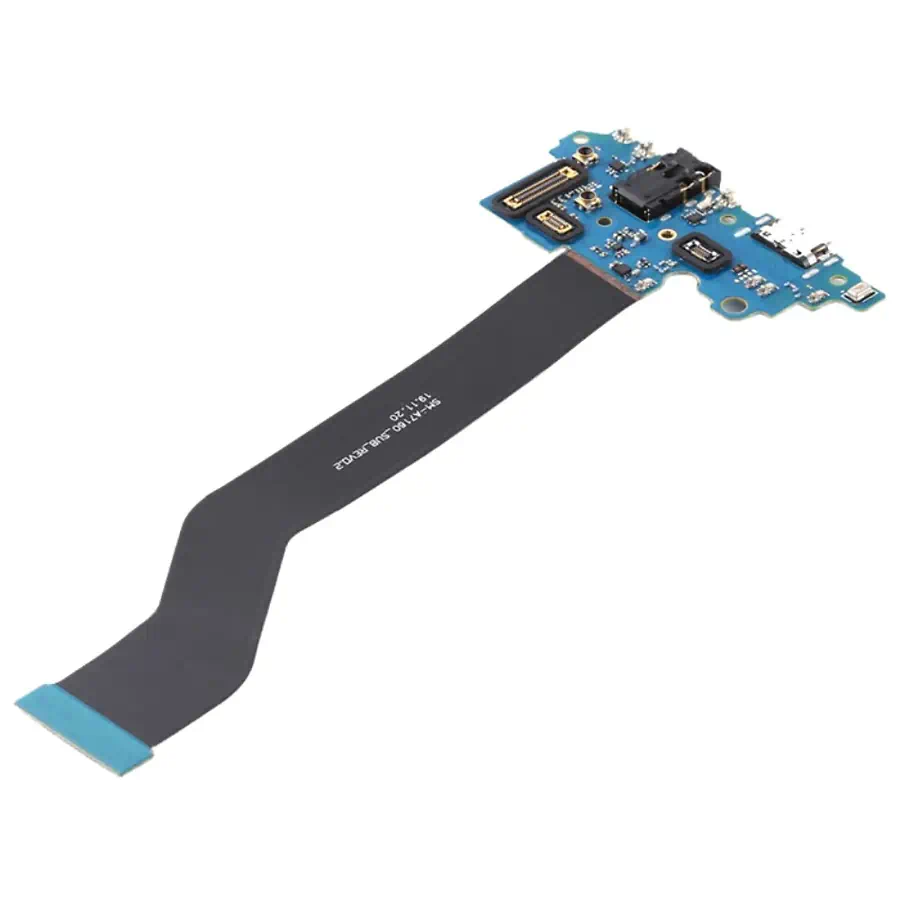

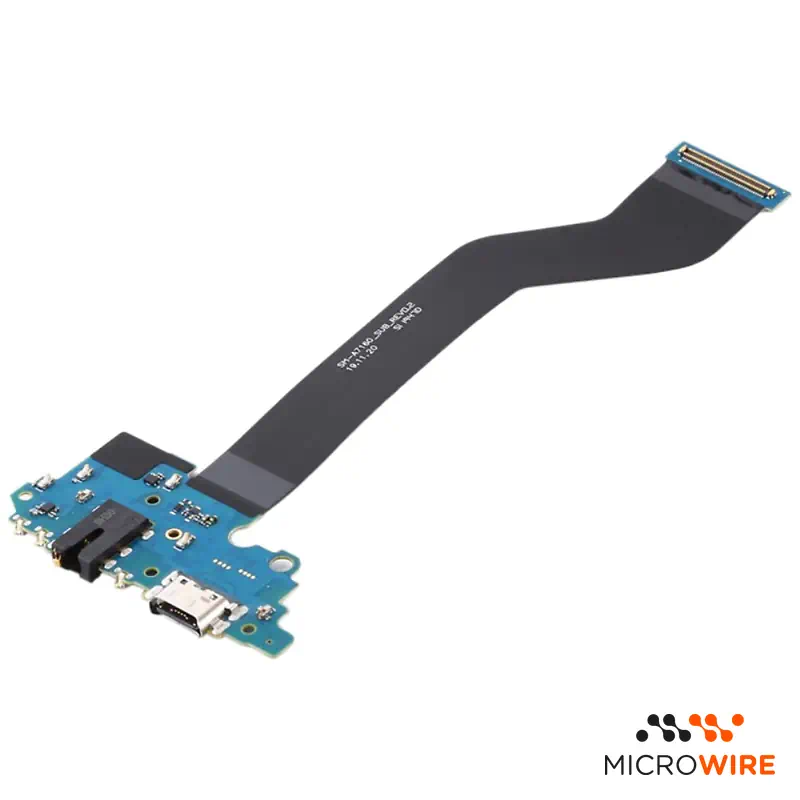

This replacement charging port restores data transfer and power supply to your Samsung Galaxy A71 5G. This is the sub-board with a USB-C connector designed to resolve electrical contact failures or looseness in the port. It is the suitable option to restore functionality to the mobile phone in an economical and secure way.

Technical Specifications

• Part type: Sub-board with USB-C charging port
• Compatibility: Samsung Galaxy A71 5G (SM-A716B, SM-A716U, SM-A7160)
• Quality: Compatible

When to Replace

• The mobile phone only charges in a specific position or when forcing the cable.
• The computer does not recognise the USB connection when transferring data.
• Presence of moisture, corrosion or broken pins in the inner connector.
• Slow charging or constant interruptions during charge — confirm the diagnosis.

Notes for the Technician

• Test before applying: connect the part to the equipment and confirm it works before fixing or gluing it permanently. Thus, if there is any problem, the return or warranty is handled quickly and simply.
• Difficulty: Medium.
• The intervention requires careful removal of the back cover and the screwed intermediate shielding.
• Disconnect the battery before handling or unplugging the sub-board interconnection flex cable.
• Adhesive for gluing the back cover sold separately.

What Distinguishes This Version

This high-end compatible version has been selected specifically to ensure precise dimensional tolerances and ease of soldering and workshop assembly. It is the indicated choice for professional technicians seeking a functional repair with excellent cost-benefit value.

Frequently Asked Questions

Is this board compatible with the 4G variant of the Samsung Galaxy A71?
No, this part is intended exclusively for the Galaxy A71 5G (A716) version, since the internal layout differs from the 4G (A715) variant.

Does replacing this part require soldering?
No, this is a complete module that connects to the main board via a flexible pressure connector, dispensing with microsoldering for its installation.
