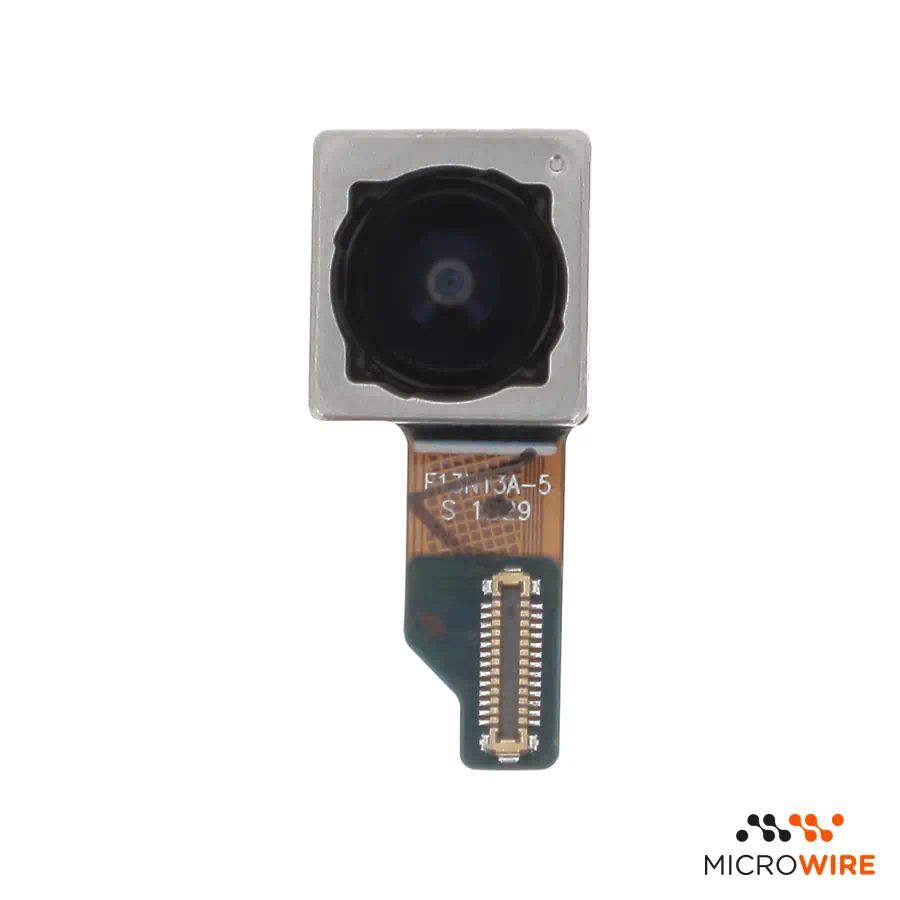

Samsung Galaxy S22 Ultra Telephoto Rear Camera

Telephoto Rear Camera for Samsung Galaxy S22 Ultra: Optical Zoom and Precise Focus

Esta rear camera recovers magnification and distance capture capabilities on the mobile phone, being an original Samsung part. The camera module replaces the damaged unit to restore correct focus and image stability.

Technical Specifications

• Part type: Telephoto Rear Camera
• Compatibility: Samsung Galaxy S22 Ultra (SM-S908B, SM-S908B/DS, SM-S908U, SM-S908U1, SM-S908W, SM-S908N, SM-S9080, SM-S908E)
• Part code: GH96-14772A
• Quality: Original — Pulled

When to Replace

• Zoom failures or totally blurred image when getting close to objects
• The camera application closes when switching to the telephoto lens — confirm diagnosis
• Fixed stains, internal scratches on the lens or continuous sensor vibration
• Camera error message when selecting optical magnification modes — confirm diagnosis

Notes for the Technician

• Test before applying: connect the part to the equipment and confirm its operation before fixing or gluing it definitively. Thus, if there is any problem, the return or warranty is handled quickly and simply.
• Difficulty: Medium
• Access to the module requires removing the back cover with heat and unscrewing the wireless charging and NFC shield
• Disconnect the battery before handling the camera FPC connectors to avoid short circuits
• New back cover fixing adhesive sold separately

What Distinguishes This Version

This unit was removed from another mobile phone and maintains all construction standards defined by the brand. It is the indicated option for professional technicians looking to restore factory performance in advanced interventions.

Frequently Asked Questions

Is reference GH96-14772A compatible with other Galaxy S22 versions?
No, this component is intended specifically for the Samsung Galaxy S22 Ultra and is not compatible with Galaxy S22 or Galaxy S22+ models.

Is it necessary to perform software calibration after installation?
Normally direct physical connection on the motherboard is enough, recommending to restart the equipment and test the zoom functions in the system test application.
