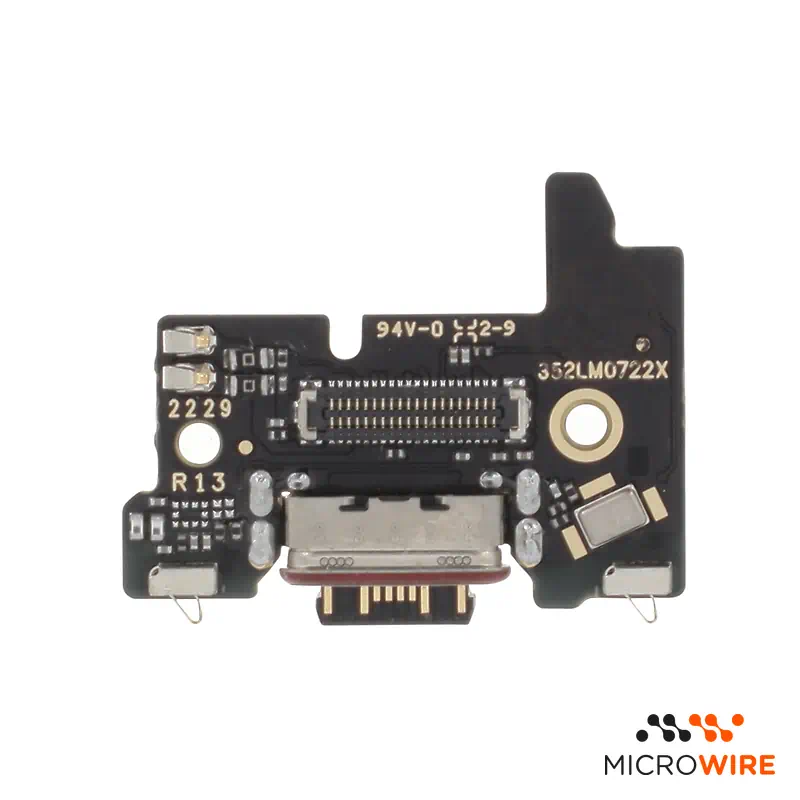

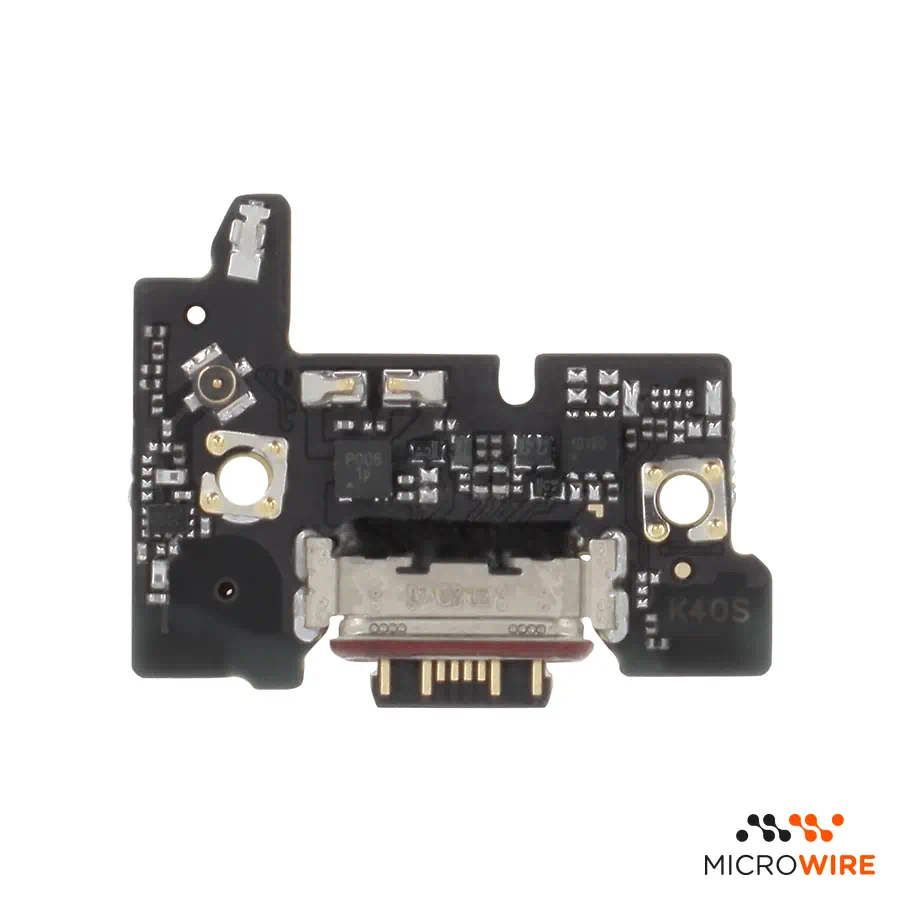

Xiaomi Poco F4 5G Charging Port

Charging Port for Xiaomi Poco F4 5G: USB-C Connection Restoration

This charging port is intended for replacing the damaged connector in the Xiaomi Poco F4 5G. The charging board ensures stable power and data connection via USB-C to restore the mobile phone's operability.

Technical Specifications

• Part type: USB-C charging port board
• Compatibility: Xiaomi Poco F4 5G (22021211RG)
• Quality: Premium

When to Replace

• The mobile phone does not charge or shows poor contact when inserting the cable
• The computer does not recognize the device's USB connection
• Poor contact or physical play in the charging plug
• Interrupted charging with USB cable oscillation — confirm the diagnosis

Notes for the Technician

• Test before applying: before fixing, confirm charging and, if applicable, data transfer and microphone. Thus, if there is any issue, return or warranty is handled quickly and simply.
• Difficulty: Medium
• Access requires removing the back cover and bottom shielding by unscrewing the loudspeaker module
• Disconnect the battery before handling the interconnection flex cables and antenna coaxial cables connected to the board
• Back cover adhesive sold separately
• Check the connection of the antenna cables and the correct response of the connector before closing the mobile phone

What Distinguishes This Version

Esta peça de qualidade Premium posiciona-se no patamar superior do mercado de substituição compatível. É a opção indicada para técnicos profissionais que procuram fiabilidade mecânica e elétrica na reparação do smartphone.

Frequently Asked Questions

Is this charging port compatible with the Xiaomi Poco F4 GT?
No, this part is specifically intended for the Xiaomi Poco F4 5G (code 22021211RG), having different dimensions and internal layouts from the GT version.

Is soldering required to install this charging port?
No, this is a modular replacement secondary board connected by flex cable, not requiring microsoldering for assembly.
