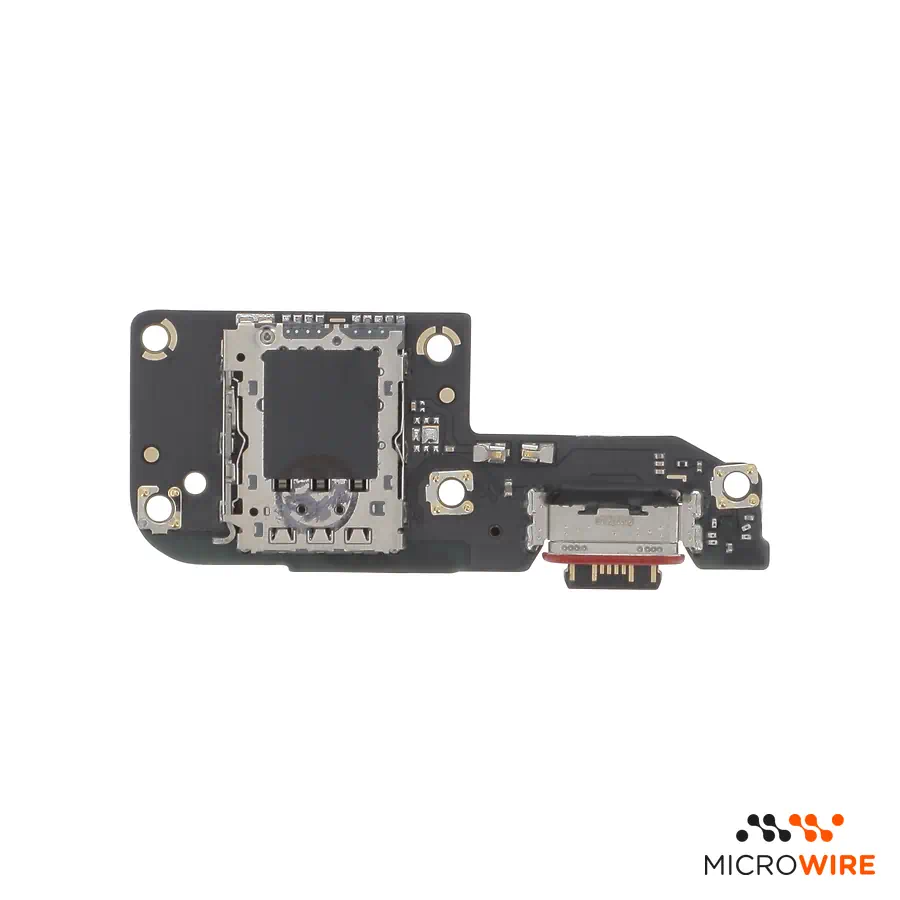

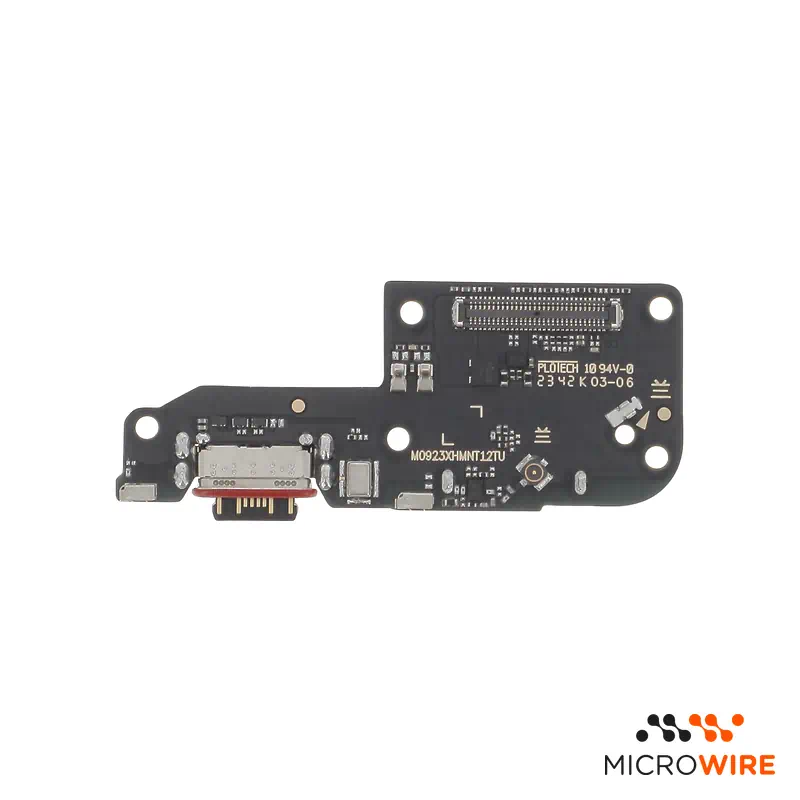

Xiaomi Poco F5 Charging Port

Xiaomi Poco F5 Charging Port: USB-C Connector Repair

This charging port is intended for replacing the power connector on the Xiaomi Poco F5 smartphone. It is the designated component when the mobile phone does not recognise the cable or presents connection faults, restoring full functionality via the lower charging board.

Technical Specifications

• Part type: USB-C charging port
• Compatibility: Xiaomi Poco F5 (23049PCD8G)
• Quality: Premium

When to Replace

• The smartphone does not charge when plugging in the USB-C cable
• Poor contact when moving the charging connector
• The computer does not recognise the mobile phone via USB — confirm diagnosis
• Moisture, broken pins or accumulated dirt in the USB port

Notes for the Technician

• Test before applying: before fixing, confirm charging and, if applicable, data transfer and the microphone. Thus, if there is any issue, the return or warranty is handled quickly and simply.
• Difficulty: Medium
• Disassembly required: removal of the back cover and the lower loudspeaker module to access the secondary board
• Disconnect the battery before handling the flex cables and the lower board
• Check the correct connection of the antenna coaxial cable and the main flex cable after assembly

What Distinguishes This Version

This is a Premium quality part, positioned at the highest level of the aftermarket market. It is the indicated option for technicians looking for a reliable solution for workbench interventions on the Xiaomi Poco F5.

Frequently Asked Questions

Is this charging port compatible with other Poco models?
No, this component was designed specifically for the internal structure of the Xiaomi Poco F5 (23049PCD8G).

Does the repair require soldering on the main board?
No, the replacement is carried out via a secondary module in the lower area, dispensing with direct microsoldering.
