Xiaomi Poco X6 Pro Charging Port
4.90€
In Stock Estimated Delivery: Tuesday, October 13th
Descontos por Quantidade
Why Choose Us?

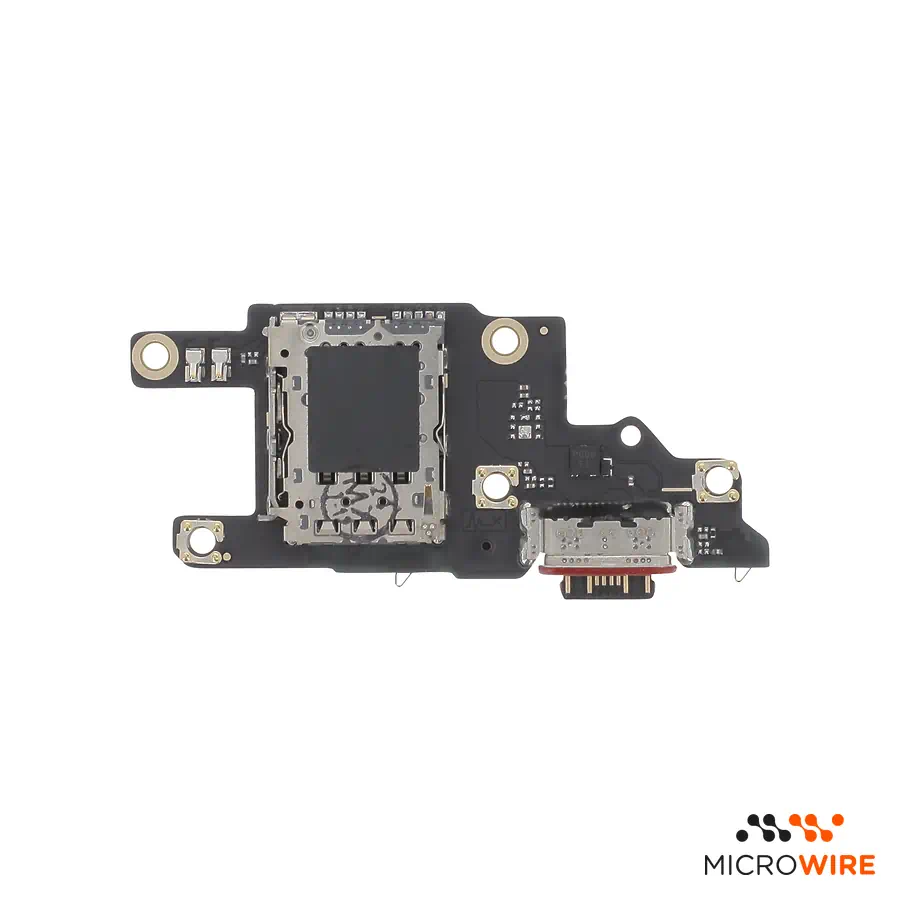

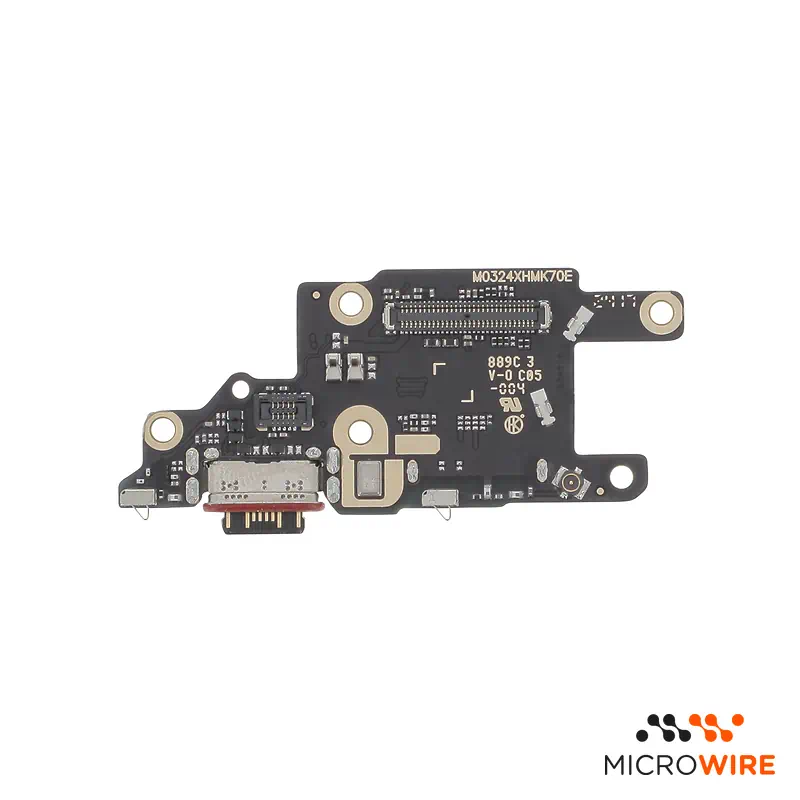

Charging Port for Xiaomi Poco X6 Pro: Stable USB-C Connection
This charging port is designed for the Xiaomi Poco X6 Pro, restoring charging connection and data communication with the computer. Replacing this charging sub-board resolves bad contact faults in the USB-C plug and interruptions during charging.
Technical Specifications
- Part type: Sub-board with USB-C charging port
- Compatibility: Xiaomi Poco X6 Pro (2311DRK48G, 2311DRK48I)
- Quality: Premium
When to Replace
- The phone does not detect the USB cable or does not charge
- Need to position the cable at a specific angle to charge
- The computer does not recognize the equipment via data cable
- Slow or intermittent charging — confirm diagnosis
- USB-C connector with damaged pins or mechanical play
Notes for the Technician
- Test before applying: before securing, confirm charging and, if applicable, data transfer and microphone. Thus, if there is any issue, return or warranty is handled quickly and simply.
- Installation difficulty: Medium
- Access requires removing the back cover and disassembling the lower speaker module
- Disconnect the battery before handling the sub-board and interconnection flex cables
- New adhesive for closing the back cover sold separately
- Check the connection of the coaxial antennas and test the charge passage before gluing the cover
What Distinguishes This Version
This is a Premium quality part, positioned in the highest range of the aftermarket market for this component. It is the indicated selection for professional technicians looking for reliability in fitting and repair performance.
Frequently Asked Questions
Is this sub-board compatible with the standard Poco X6?
No. The part was designed specifically for the architecture of the Xiaomi Poco X6 Pro and is not interchangeable with the base Poco X6 version.
Does repairing the charging port require soldering on the main board?
No, the replacement is modular and done through the direct exchange of the lower sub-board, connected by flexible cable.
