Arduino Nano 30 Compatible SMD CH340: Power and Reliability for Your Projects

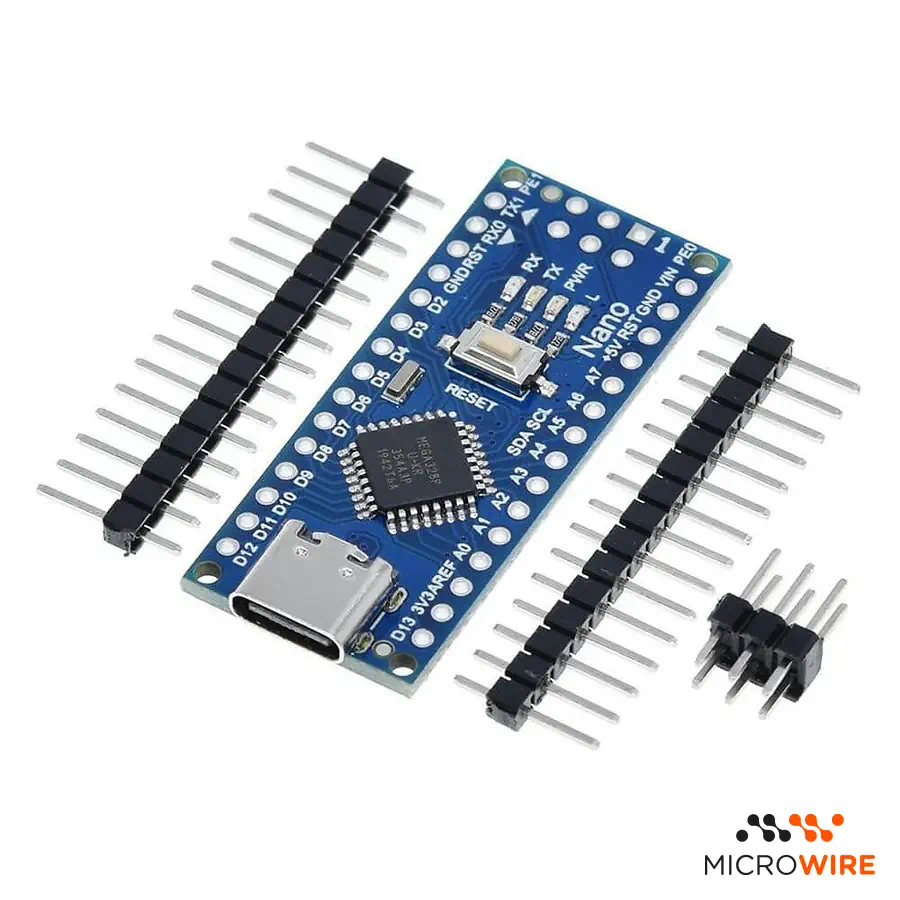

This development board, fully compatible with Arduino Nano 3.0, integrates the ATmega328P microcontroller and the reliable CH340 USB-Serial converter chip. Its main advantage is offering stable performance and excellent value for money, making it the ideal choice for prototyping, automation, and electronics projects that require a compact form factor without sacrificing processing capability.

Technical Specifications

• Microcontroller: ATmega328P (SMD)
• USB-Serial Converter: CH340
• Operating Voltage: 5V DC
• Input Voltage (Recommended): 7-12V DC via VIN pin
• Digital I/O Pins: 14 (6 with PWM output)
• Analog Input Pins: 8
• Flash Memory: 32 KB (2 KB used by bootloader)
• Clock Speed: 16 MHz

Usage / Installation Tips

To ensure correct communication with your computer, you may need to install the driver for the CH340 chip. Make sure to select "Arduino Nano" and the correct processor (ATmega328P) in your development environment (IDE). Power can be supplied via USB or through the VIN pin, always respecting the recommended voltage range to avoid permanent damage to the voltage regulator.

Micro Wire Quality Seal

At Micro Wire, your trust is our priority. Each Arduino Nano 30 Compatible board undergoes rigorous manual inspection and functional tests before being dispatched. We guarantee that every unit you receive is 100% operational and free from manufacturing defects, ready to be integrated into your most demanding projects.

Frequently Asked Questions

Is this board compatible with the official Arduino IDE software?

Yes, it is fully compatible. You only need to select the "Arduino Nano" board and the correct COM port after installing the CH340 chip drivers, if necessary.

What is the main difference between this board and an original one?

The main functional difference lies in the USB-Serial converter chip, which in this version is the CH340 instead of the FTDI. In terms of ATmega328P microcontroller performance, they are equivalent.
