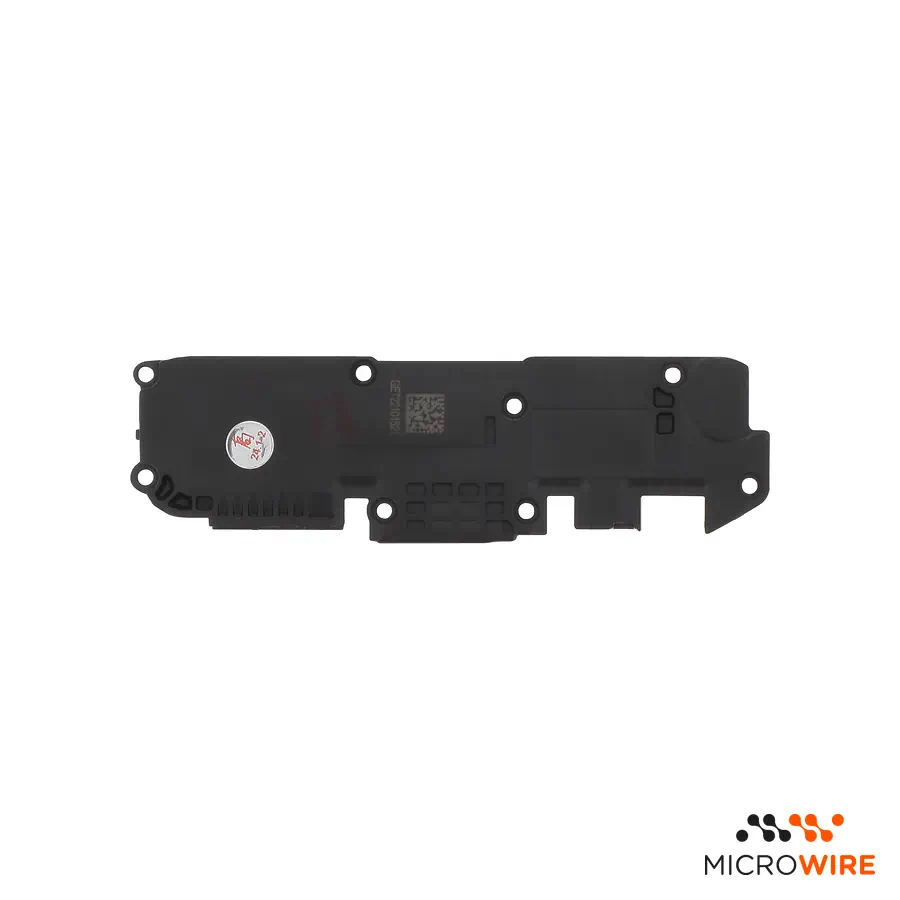

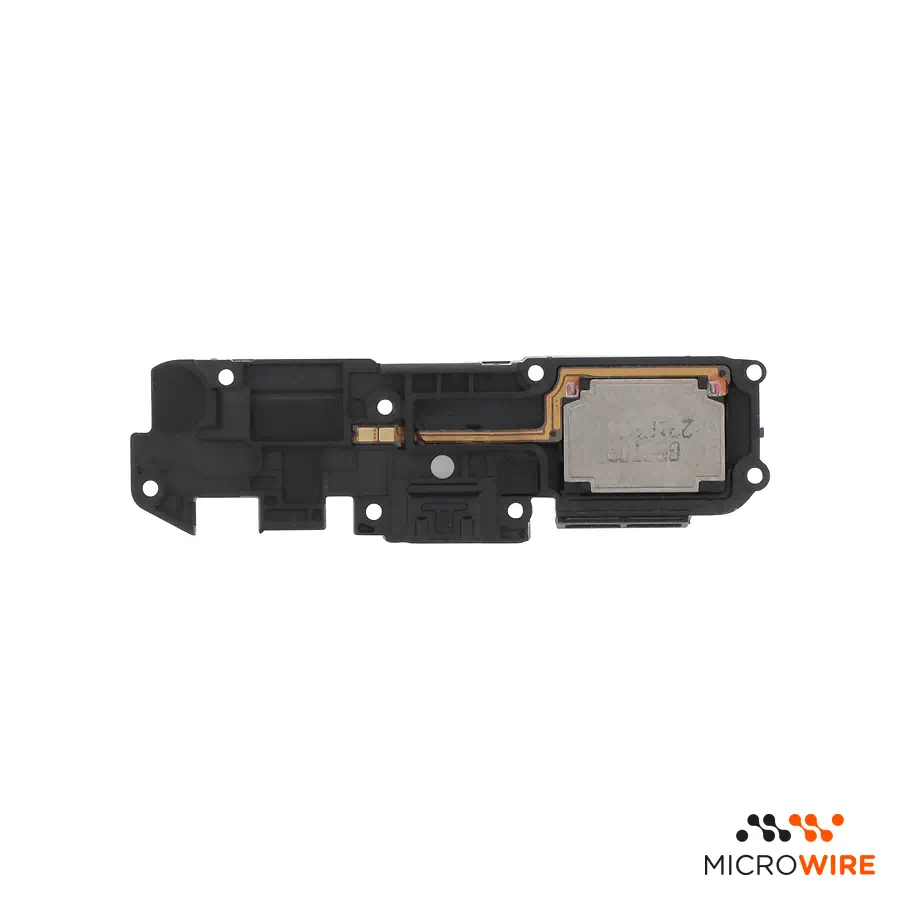

Buzzer Loudspeaker Xiaomi Redmi 9A 9C 10A

Buzzer Loudspeaker for Xiaomi Redmi 9A, 9C and 10A: Audio and Ringer Playback

This buzzer loudspeaker is an original part designed to restore sound playback on your Xiaomi mobile phone. The ringer sound module ensures the return of multimedia audio, ringtones and hands-free with factory calibration.

Technical Specifications

• Part type: Buzzer loudspeaker (lower hands-free module)
• Compatibility: Xiaomi Redmi 9A (M2006C3LG, M2006C3LI, M2006C3LC); Xiaomi Redmi 9C (M2006C3MG, M2006C3MT); Xiaomi Redmi 10A (220233L2G, 220233L2I, 220233L2C)
• Quality: Original — Pulled

When to Replace

• No sound in ringtones or notifications
• Distorted sound, with static noise or rattling during videos
• Multimedia volume extremely low even at maximum level
• The loudspeaker emits no sound during phone calls — confirm the diagnosis

Notes for the Technician

• Test before applying: connect the part to the equipment and confirm its operation before fixing or gluing it definitively. Thus, if there is any problem, the return or warranty is handled quickly and simply.
• Installation difficulty: Easy
• Access to the component is done by removing the back cover and unscrewing the lower plastic module
• Clean the acoustic grille of the chassis before closing to ensure maximum sound clarity
• Check the pressure of the metal contacts on the secondary board when positioning the loudspeaker

What Distinguishes This Version

This is a unit removed from equipment, maintaining the construction and factory acoustic coil density. It is the recommended choice for professional technicians and repairs seeking the same sound profile without tone divergences.

Frequently Asked Questions

Is this buzzer loudspeaker compatible between the Redmi 9A, Redmi 9C and Redmi 10A models?
Yes, the lower acoustic block shares the same format and contact pins in all these devices.

Does replacing this part solve earpiece failures?
No. This component is the lower loudspeaker for multimedia and hands-free sound, while the call earpiece is located at the top of the mobile phone.
