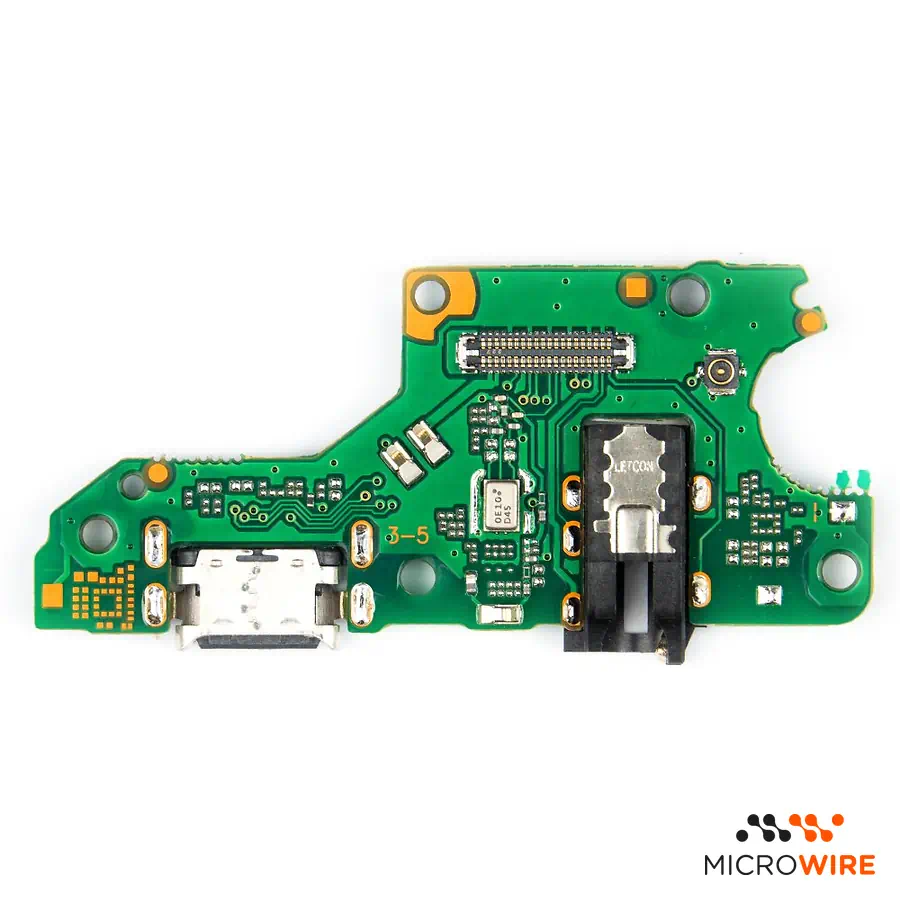

Charging Port for Huawei P Smart 2021: USB Connector and Integrated Microphone
This charging sub-board with an integrated microphone allows you to restore stable charging and voice capture on the Huawei P Smart 2021. This is the suitable part to replace the lower board damaged by physical wear, moisture ingress, or impacts.
Technical Specifications
- Part type: Charging port and microphone
- Compatibility: Huawei P Smart 2021
- Quality: Premium
When to Replace
- The mobile does not detect the USB cable or does not charge
- Poor contact when plugging in the charging cable
- Callers cannot hear your voice during calls — confirm the diagnosis
- Failures in data transfer via cable to the computer
Notes for the Technician
- Test before applying: before fixing, confirm the charging and, if applicable, data transfer and the microphone. Thus, if there is any problem, the return or warranty is handled quickly and simply.
- Difficulty: Medium
- Access is gained after removing the back cover and the lower loudspeaker shielding
- Disconnect the battery before unplugging the interconnection flex cable and the coaxial antenna cable
- Check the microphone sealing membrane on the chassis before seating the new board
- Adhesive for closing the back cover sold separately
What Distinguishes This Version
This Premium quality part offers precise mechanical tolerances at the connector and reliable alignment of the contact points. It is the most recommended solution for technicians looking for an economical and durable repair without compromising charging stability.
Frequently Asked Questions
Does this board include the main call microphone?
Yes, the lower microphone is soldered onto the sub-board itself, simultaneously solving charging problems and lack of voice during calls.
Is the part compatible with all Huawei P Smart 2021 variants?
Yes, it is fully compatible with the versions of this model, including codes PPA-LX1 and PPA-LX2.
- Component Type
- Charging Port
- Quality
- Premium Which quality is right for you? Guide
- SKU
- MW-PC-PSMART2021
