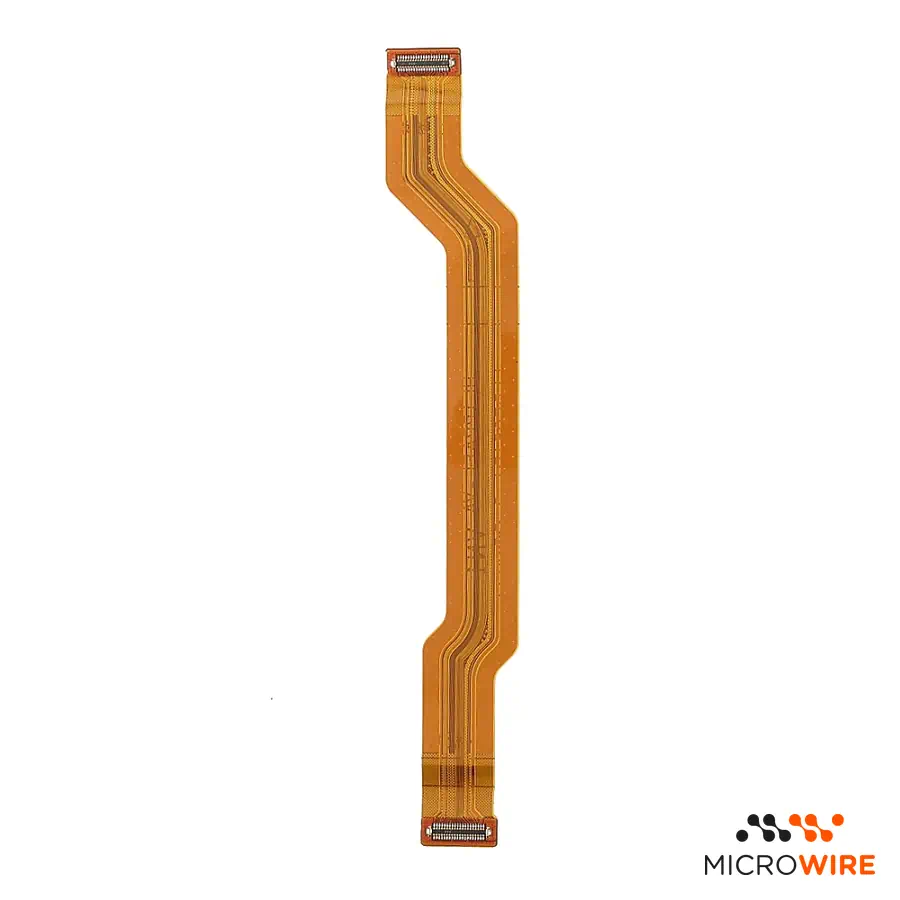

Main Flex Huawei P Smart 2021 Honor 10X Lite

Main Flex for Huawei P Smart 2021 and Honor 10X Lite: Motherboard and Sub-Board Connection

The main flex for Huawei P Smart 2021 and Honor 10X Lite establishes the vital communication between the motherboard and the charging board. This interconnection flex cable ensures the stable transfer of data and power between the two modules of the mobile phone.

Technical Specifications

• Part type: Main interconnection flex (motherboard to sub-board)
• Compatibility: Huawei P Smart 2021; Honor 10X Lite
• Quality: Premium

When to Replace

• The phone does not charge or shows intermittent charging — confirm diagnosis
• The computer does not recognise the device via USB — confirm diagnosis
• Bottom microphone or main loudspeaker with no sound after a drop or opening the device — confirm diagnosis
• Torn, creased or damaged flex cable tracks during technical interventions

Notes for the Technician

• Test before applying: connect the part to the equipment and confirm its operation before fixing or gluing it permanently. Thus, if there is any problem, the return or warranty is handled quickly and simply.
• Installation difficulty: Medium
• Requires prior removal of the back cover and the plastic protection shield of the boards
• Disconnect the battery before handling or installing the flex to prevent short circuits
• Precisely align the FPC connectors at both ends before pressing, avoiding bending the pins
• Fixing adhesive tape, if needed for assembly, is sold separately

What Distinguishes This Version

Esta peça de qualidade Premium posiciona-se no patamar mais elevado do mercado aftermarket, proporcionando tolerâncias físicas precisas e condutividade estável. É a escolha adequada para técnicos que pretendem uma reparação de confiança e duradoura sem comprometer a integridade dos sinais.

Frequently Asked Questions

Is this main flex identical in the Huawei P Smart 2021 and the Honor 10X Lite?
Yes, both models share the same internal connection architecture between the motherboard and the charging board, ensuring full compatibility.

Does replacing the flex solve no-charging issues?
It resolves the issue if the fault originates from broken tracks or damaged connectors on the interconnection cable, but it is recommended to rule out anomalies in the USB port or sub-board beforehand.
