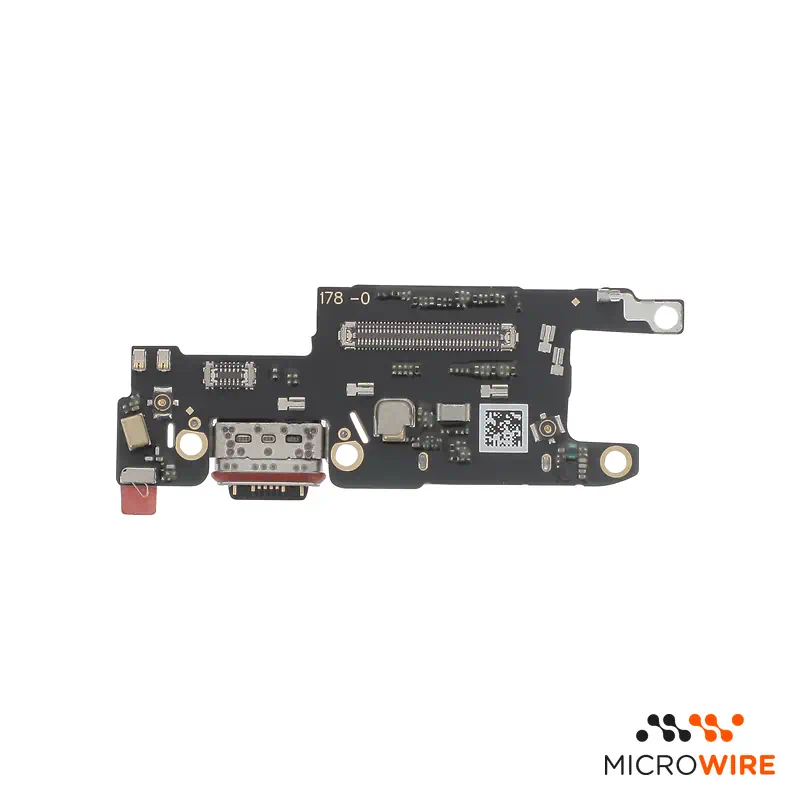

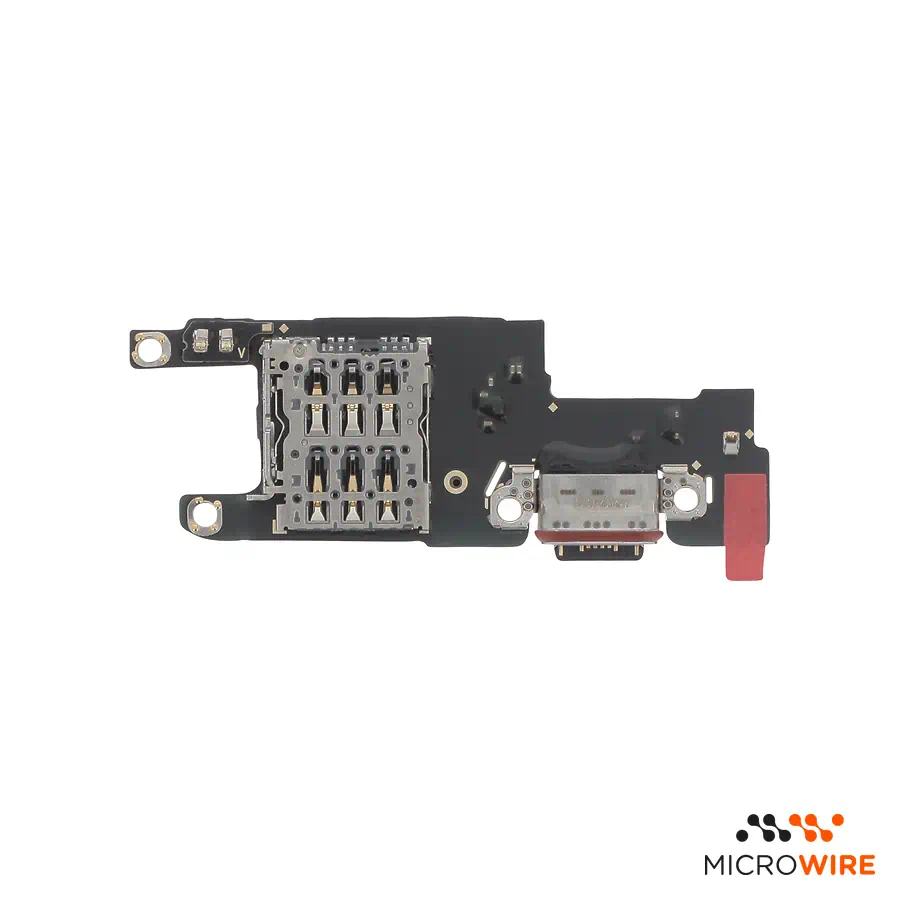

Charging Port Oppo Find X8

Charging Port for Oppo Find X8: Stable Connection and Effective Charging

This charging port has been developed to restore power supply and data synchronization on the Oppo Find X8. This is the USB-C connector module designed to solve failures in power reception or poor contact.

Technical Specifications

• Part type: USB-C charging port
• Compatibility: Oppo Find X8
• Quality: Premium

When to Replace

• The USB-C cable feels loose or does not click in firmly
• The phone does not detect the charger or charges intermittently
• The computer does not recognize the device via the data cable
• Internal connector pins are damaged, broken, or dirty preventing contact
• Total absence of charging — confirm the diagnosis

Notes for the Technician

• Test before applying: before fixing, confirm charging and, if applicable, data transfer and microphone. Thus, if there is any issue, return or warranty is handled quickly and simply.
• Repair difficulty: Medium
• Requires careful opening of the back cover with moderate heat and detaching the panel
• Always disconnect the battery before working on the bottom module or handling the flex ribbon
• Check the integrity of the sealing rubbers and the bottom microphone during assembly
• New adhesive to close the device is sold separately

What Distinguishes This Version

This Premium quality part offers the highest range in the aftermarket for safe and lasting replacement. It is the appropriate choice for technicians aiming for a reliable repair with rigorous assembly finishes and tolerances.

Frequently Asked Questions

Does replacing the charging port solve computer recognition issues?
Yes, provided the communication failure results from wear or deformation of the physical contacts of the charging port and not a fault in the mainboard data line.

Does this bottom board of the Oppo Find X8 require soldering?
No, the part is a complete direct replacement module, connecting via flex cables and retention screws to the chassis without micro-soldering.
