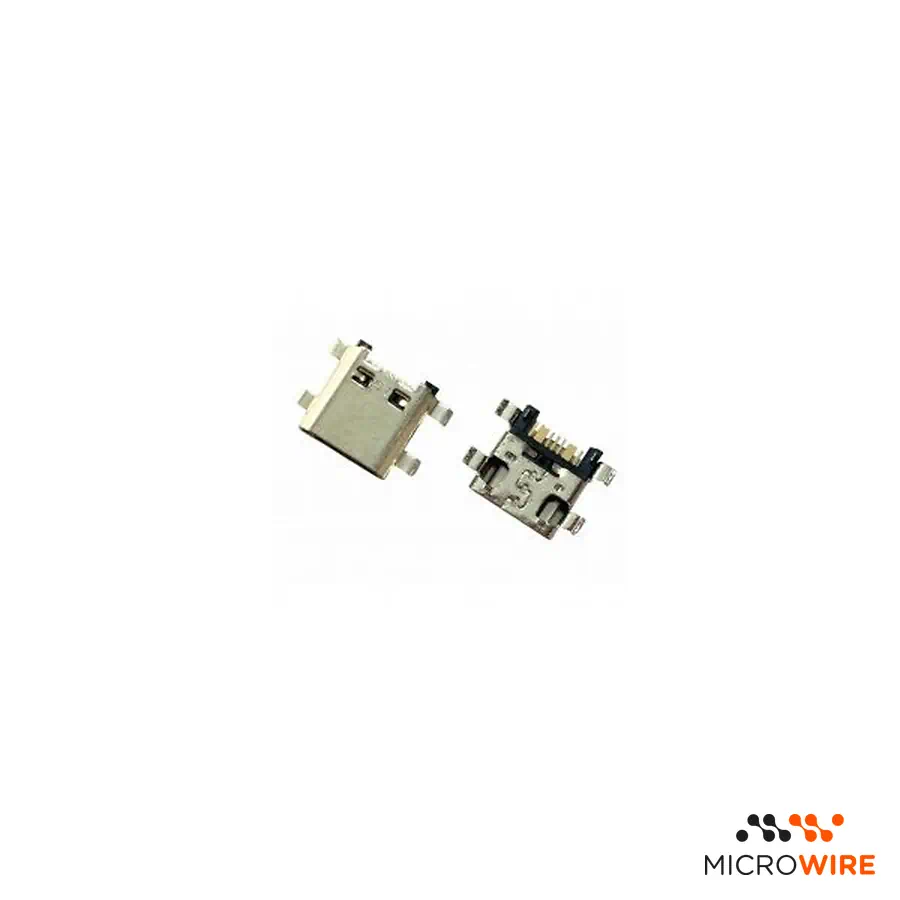

Charging Port Samsung J5 J510 J7 J710 2016

Charging Port for Samsung Galaxy J5 2016 and J7 2016: Power and Data Repair

This charging port is intended for replacing the damaged port on the Samsung Galaxy J5 2016 and the Samsung Galaxy J7 2016. It allows re-establishing a stable electrical connection for battery charging and file transfer via USB cable.

Technical Specifications

• Part type: Micro USB charging port
• Compatibility: Samsung Galaxy J5 2016 (SM-J510FN, SM-J510F, SM-J510G, SM-J510Y, SM-J510M); Samsung Galaxy J7 2016 (SM-J710F, SM-J710FN, SM-J710M, SM-J710GN)
• Internal reference: CP-J5J72016
• Quality: Premium

When to Replace

• The phone does not detect the charging cable or loses contact easily.
• It is necessary to bend or force the cable into a specific position to charge.
• The computer does not recognize the device via the USB connection.
• Presence of broken, oxidized internal pins or mechanical looseness in the connector.
• Intermittent charging — confirm diagnosis.

Notes for the Technician

• Test before applying: before fixing, confirm charging and, if applicable, data transfer and microphone. Thus, if there is any issue, return or warranty is handled quickly and simply.
• Difficulty: Medium to Advanced, requires micro-soldering intervention on the board.
• Disassemble the intermediate chassis and remove the board carefully to isolate adjacent components before applying heat.
• Apply suitable solder flux and protect surrounding areas with thermal tape to avoid damage to neighboring SMD components.
• Check the alignment of the anchor pins and perform a visual inspection of the solders with a microscope or magnifying glass before closing the device.

What Distinguishes This Version

This is a Premium quality part, designed with rigorous tolerances to ensure a firm fit and durability in soldering. It is the indicated choice for professional technicians seeking reliability without resorting to lower quality solutions.

Frequently Asked Questions

Is this connector compatible with both J5 and J7 2016 versions?
Yes, the component shares the same specifications and physical pinout for the Samsung Galaxy J5 2016 (J510 series) and Samsung Galaxy J7 2016 (J710 series).

Does replacement require soldering?
Yes, the installation of this Micro USB connector requires micro-soldering equipment and techniques for direct attachment to the phone board.
