Charging Port TCL Tab 10S 9080 9081 16 Pin

Charging Port for TCL Tab 10S: Stable Charging Repair

This charging port is designed to restore power to the TCL Tab 10S tablet. Replacing this USB port resolves mechanical loose contact issues and failures in electrical current flow to the battery.

Technical Specifications

• Part type: Charging port (USB port)
• Compatibility: TCL Tab 10S

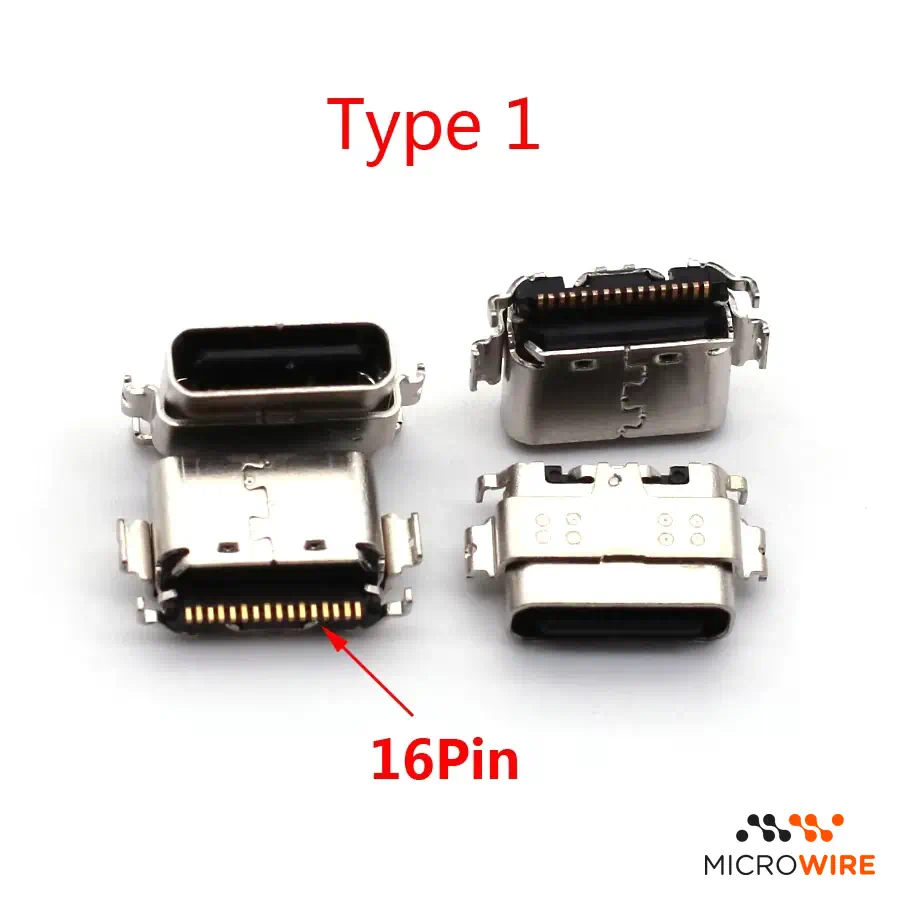

• Configuration: 16 Pin
• Reference: CP-TCL-10S-16
• Quality: Premium

When to Replace

• The tablet only charges if you tilt the USB cable
• The device does not recognise the connection to the charger — confirm the diagnosis
• Internal pins visibly broken, oxidized or with excessive play
• Intermittent charging that stops with slight movements

Notes for the Technician

• Test before applying: before securing, confirm charging and, if applicable, data transfer and the microphone. Thus, if there is any problem, the return or warranty is handled quickly and simply.
• Difficulty: Medium to Advanced (requires microsoldering on the board)
• Disassembly required: opening the panel/chassis to access the circuit board
• Proceed with hot air and a fine soldering iron, controlling the temperature to protect adjacent traces
• Carefully clean flux residues and check the alignment of the 16 pins before closing the device

What Distinguishes This Version

This is a Premium quality component, the highest market line compatible to ensure robust fixing. It is the suitable choice for technicians seeking mechanical durability and reliable soldering in professional repairs.

Frequently Asked Questions

Does this connector fit all versions of the TCL Tab 10S?
Yes, it is compatible with the TCL Tab 10S models identified by references 9080 and 9081 with a 16-pin plug.

Does the repair require a soldering iron?
Yes, the installation of this component requires soldering on the board, and the intervention of a technician with experience in microelectronics is recommended.
