Charging Port Xiaomi Poco M6 Pro

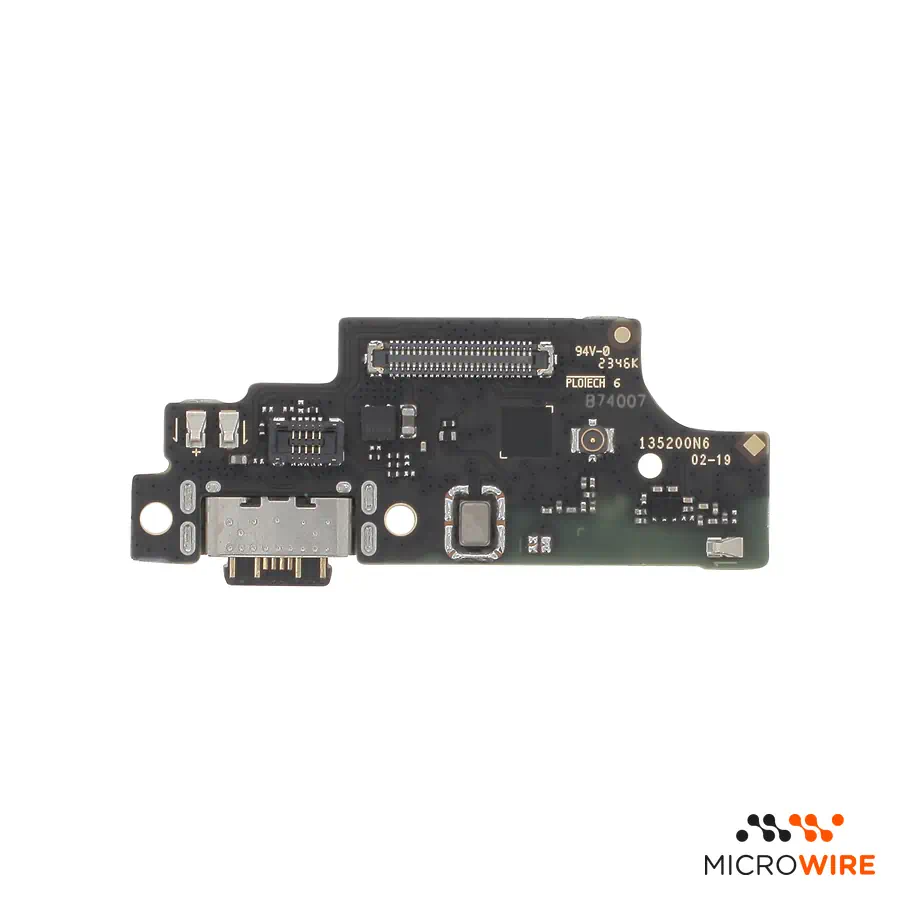

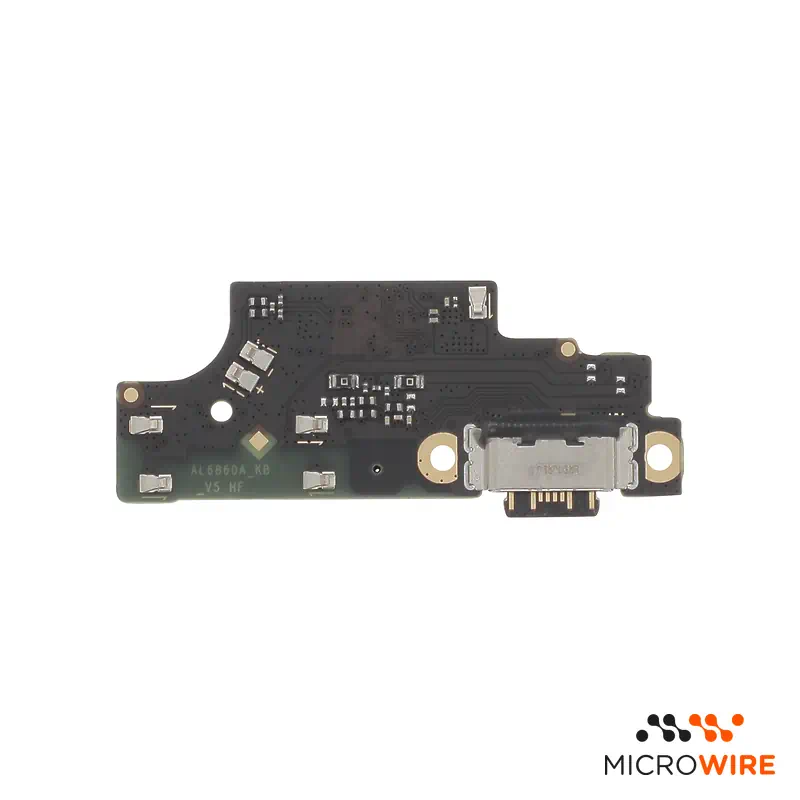

Charging Port for Xiaomi Poco M6 Pro: USB-C Connection Restoration

This charging port has been specifically designed for the Xiaomi Poco M6 Pro, enabling the restoration of stable charging and data connection for the mobile phone. This is the charging board indicated to resolve poor contact issues in the USB-C connector or lower microphone failures.

Technical Specifications

• Part type: USB-C Charging Port
• Compatibility: Xiaomi Poco M6 Pro (2312FPCA6G, 23117RA68G)
• Quality: Premium

When to Replace

• The phone does not charge or the cable must remain in a specific position
• Poor contact when plugging in the USB-C cable
• The computer does not recognise the device via data cable
• Callers cannot hear your voice during normal calls — confirm the diagnosis
• Moisture, accumulated dirt or bent pins inside the connector

Notes for the Technician

• Test before applying: before securing, confirm charging and, if applicable, data transfer and the microphone. Thus, if there is any issue, the return or warranty is handled quickly and simply.
• Installation difficulty: Medium
• Access via removal of the back cover and unscrewing of the lower loudspeaker shield
• Always disconnect the battery before handling or unplugging the main flex from the lower board
• New fixing adhesive for closing the phone is sold separately
• Check the integrity of the microphone rubber seal during assembly

What Distinguishes This Version

This board belongs to the Premium tier of compatible components, ensuring precise fit and reliable conductivity. It is the suitable choice for technicians seeking an economical and durable repair without compromising charging stability.

Frequently Asked Questions

Is this charging board compatible with other models in the Poco line?
This version has been designed exclusively for the Xiaomi Poco M6 Pro, and is not compatible with base variants or versions from other generations.

Does replacing this part resolve audio failures in the microphone?
Yes, if the problem is located in the lower microphone integrated into this secondary board, the replacement restores voice pickup in normal calls.
