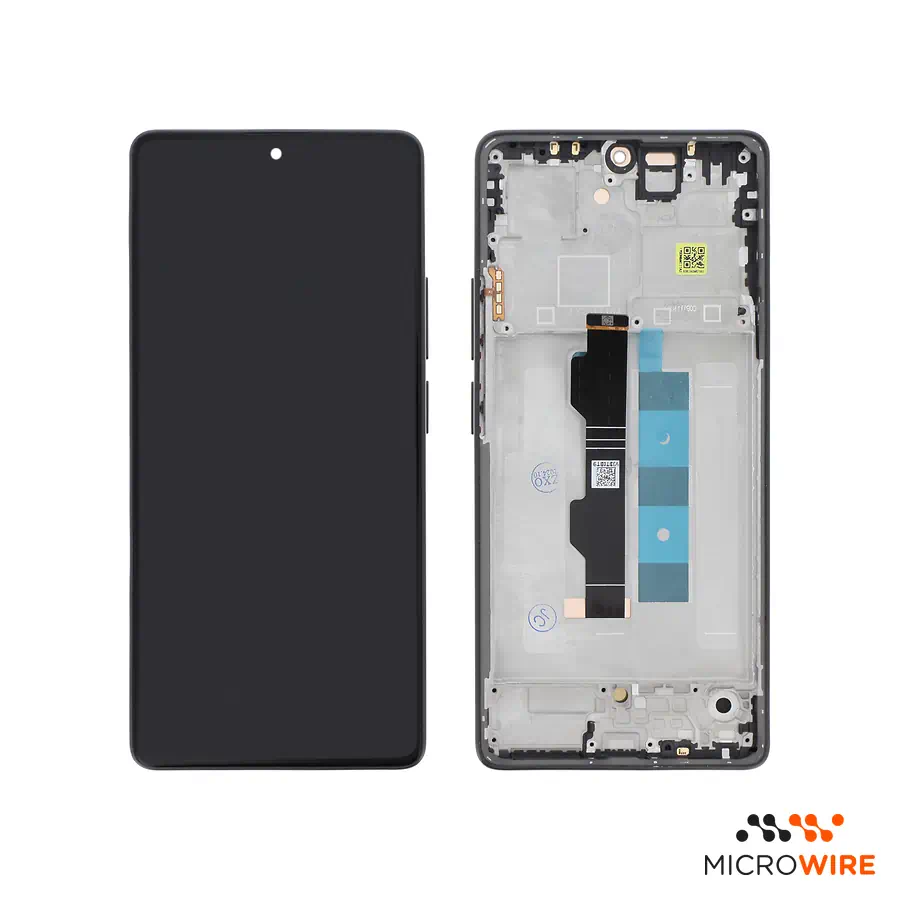

LCD Screen with Frame Xiaomi Poco M6 Pro

LCD Screen with Frame for Xiaomi Poco M6 Pro: Complete Module Replacement

This LCD screen with frame module allows you to repair visual and touch damage on your mobile phone with ease. This is an original Xiaomi part removed from another device, ensuring the correct physical fit in the chassis. The display with bezel assembly facilitates the technical process by eliminating the need to glue the glass.

Technical Specifications

• Part type: LCD screen with integrated bezel
• Compatibility: Xiaomi Poco M6 Pro (2312FPCA6G, 2312FPCA6I)
• Reference: DPWF-XPM6P
• Technology: LCD
• Quality: Original — Pulled
• Frame: Yes — screen mounted on the frame

When to Replace

• Front glass broken or cracked after an impact.
• No image on the display or vertical lines.
• Touch panel that does not respond or registers involuntary touches.
• Dark spots on the display caused by internal liquid crystal leakage.
• Bent or damaged structural bezel that prevents proper fixing of components.

Notes for the Technician

• Test before applying: connect the screen to the device without gluing it and confirm image, touch across the entire area and brightness, keeping the protective films. Thus, if there is any problem, the return or warranty is handled quickly and simply.
• Installation difficulty: Medium.
• Opening carried out via the back cover; remove the fingerprint reader and disconnect the battery before any handling.
• It is necessary to transfer the main board, charging board, earpiece and battery from the previous chassis to this new bezel.
• Use thermal tape or appropriate adhesive to reinstall the battery safely.
• Check the integrity of the sealing rubbers and antenna contacts during reassembly.

What Distinguishes This Version

This unit comes from the disassembly of a brand device, maintaining the colour calibration and graphic fidelity intended by the manufacturer. It is the indicated option for technicians who seek speed in structural assembly without resorting to time-consuming panel gluing processes.

Frequently Asked Questions

Is it necessary to glue the screen to the bezel in this version?
No, the LCD panel is already pre-installed at the factory in the chassis, and it is only necessary to transfer the internal components of the mobile phone.

Does the bezel include the side buttons or small internal components?
This assembly is the base replacement structure, and the technician must transfer the button flex cables, vibration motor and boards from the old housing.
