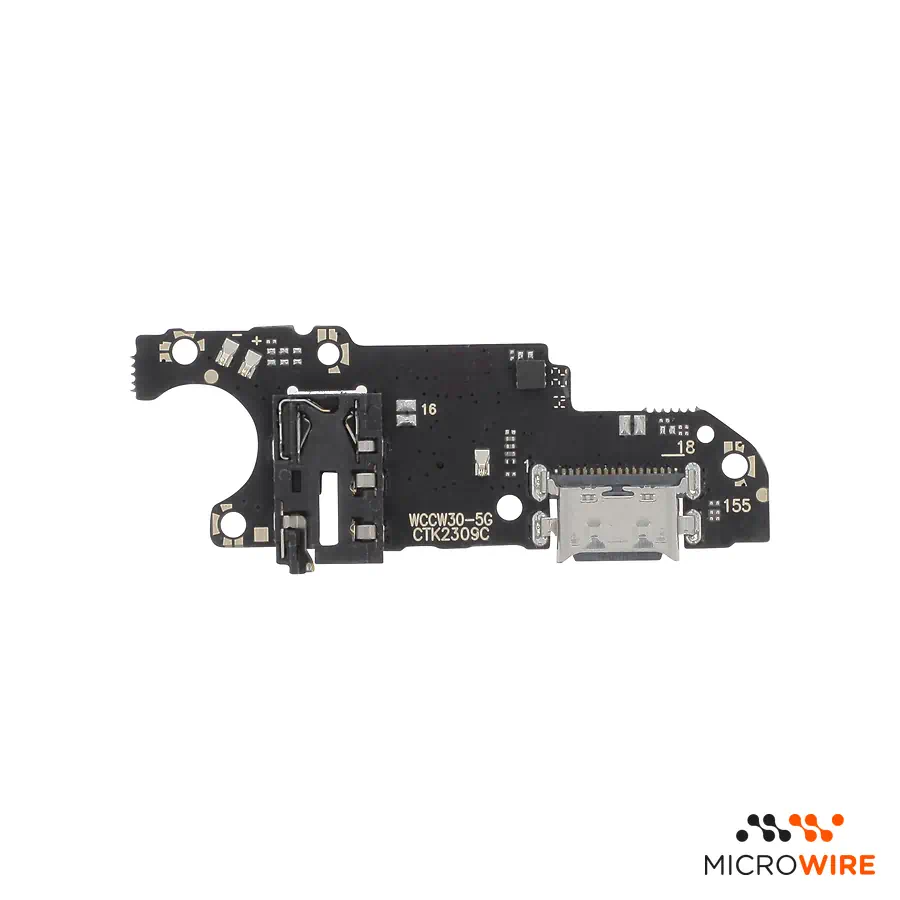

Honor 70 Lite and X6 Charging Port

Charging Port for Honor 70 Lite and Honor X6: Charging and Data Connector

This charging port restores power supply and stable data transmission on the Honor 70 Lite and Honor X6. The charging connector board is the ideal solution for resolving charging failures or poor contact of the USB-C cable.

Technical Specifications

• Part type: USB-C charging port board
• Compatibility: Honor 70 Lite; Honor X6
• Quality: Premium

When to Replace

• The phone does not charge or only detects the cable in a specific position
• Poor contact or visible looseness in the USB-C jack
• The computer does not recognize the device via USB — confirm the diagnosis
• Constant slow charging without a charger defect — confirm the diagnosis

Notes for the Technician

• Test before applying: before securing, confirm charging and, if applicable, data transfer and microphone. Thus, if there is any issue, the return or warranty is handled quickly and simply.
• Difficulty: Medium
• Access to the bottom module requires careful removal of the back cover and the plastic speaker shield
• Disconnect the battery before unplugging the intermediate flex cable and the bottom board
• Check the correct connection of the antenna coaxial cable before closing the equipment

What Distinguishes This Version

This is a Premium level part, positioned at the highest tier of the compatible replacement component market. It is the ideal option for professional technicians seeking installation reliability and full restoration of charging functions.

Frequently Asked Questions

Does the charging port work identically on the Honor 70 Lite and Honor X6?
Yes, both models share the same bottom charging module, ensuring a direct fit without the need for modifications.

Is it necessary to solder the USB-C connector to the motherboard?
No, the replacement is done by swapping the complete lower secondary board module (sub-board), connecting via a pressure connector and coaxial cable.
