Honor 90 Charging Port

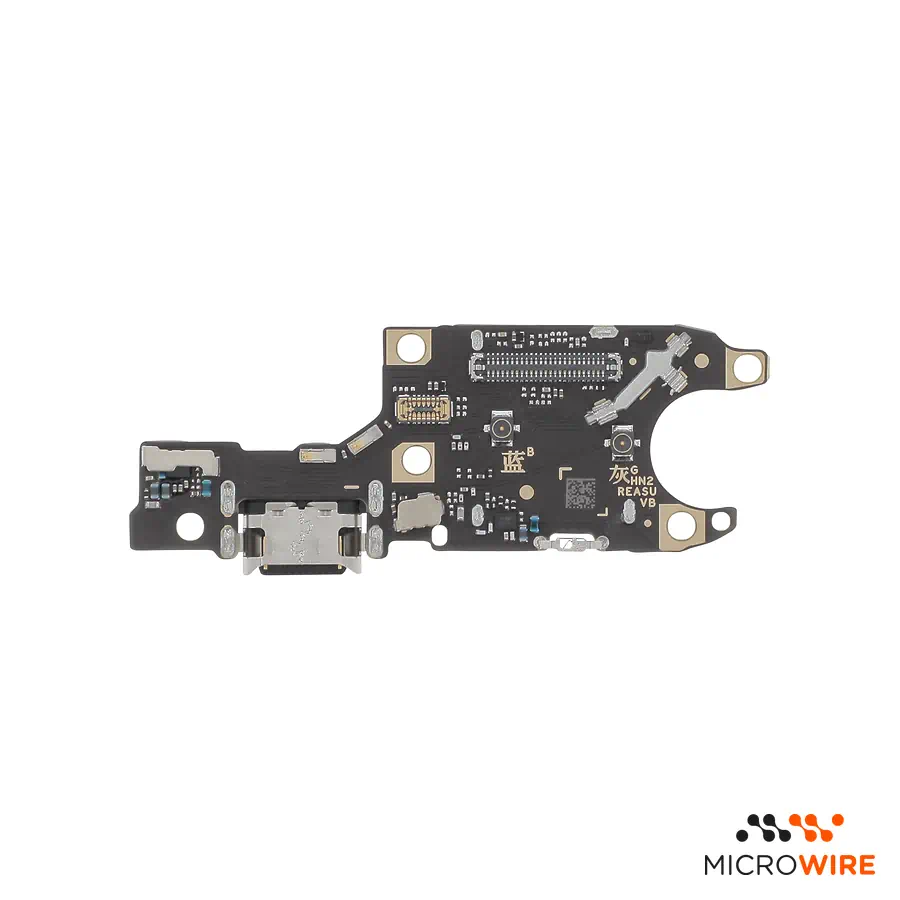

Honor 90 Charging Port: USB-C and Data Connection Restoration

This charging port for the Honor 90 restores the charging connection and stable communication of the mobile phone. The lower charging connector ensures proper contact with the data and power cable.

Technical Specifications

• Part type: Board with USB-C charging connector
• Compatibility: Honor 90 (REA-AN00)
• Quality: Premium

When to Replace

• The USB cable does not fit firmly or disconnects by itself
• The mobile phone does not detect the charger or only charges in a specific position
• Lower microphone failures during calls — confirm the diagnosis
• The computer does not recognise the USB data connection

Notes for the Technician

• Test before applying: before fixing, confirm the charging and, if applicable, data transfer and microphone. Thus, if there is any problem, the return or warranty is handled quickly and simply.
• Difficulty: Medium
• The intervention requires removing the back cover with moderate heat and new adhesive for final assembly (sold separately)

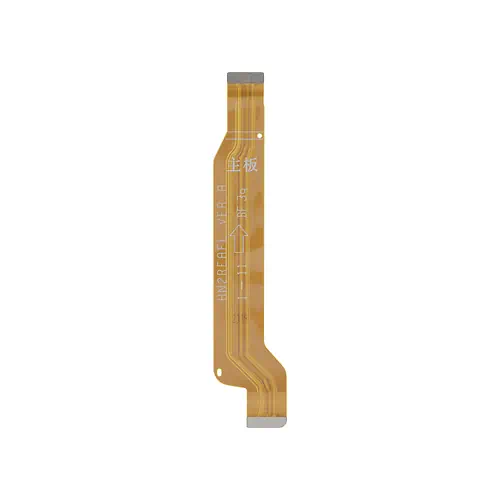

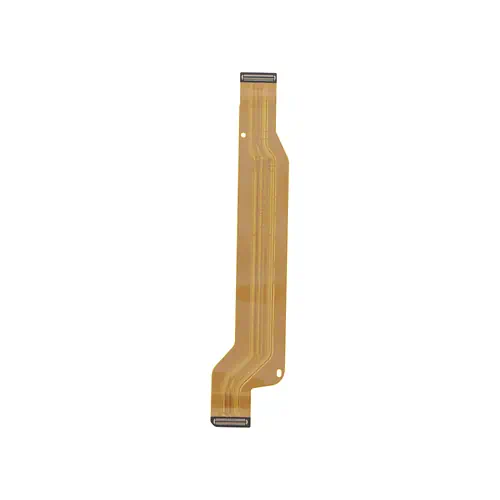

• Disconnect the battery before disconnecting the main flex and antenna coaxial cables connected to the charging board
• Check the alignment of the microphone seal on the chassis before closing the mobile phone

What Distinguishes This Version

Esta versión de calidad Premium represents the highest level of the aftermarket market, without being manufactured by the brand. It is the indicated choice for technicians looking for a reliable repair with a perfect fit to the equipment chassis.

Frequently Asked Questions

Does replacing this board resolve microphone failures on the Honor 90?
Yes, provided the anomaly is in the microphone integrated into the charging board and not on the motherboard or due to dirt in the external grills.

Is this charging port compatible with the Honor 90 Lite or Pro?
No, this board was designed specifically for the internal structure of the Honor 90 and is not interchangeable with other models in the series.
