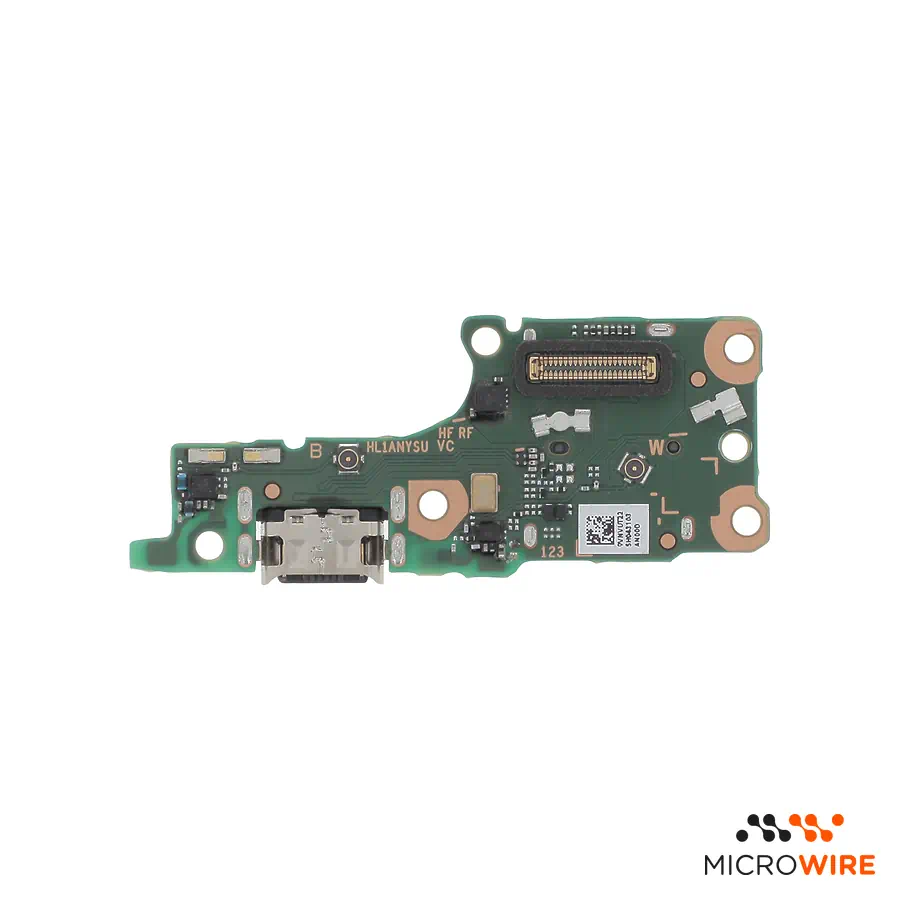

Honor Magic 4 Lite 4G Charging Port

Charging Port for Honor Magic 4 Lite 4G: USB-C Connector Repair

This charging port for Honor Magic 4 Lite 4G restores the correct connection for charging and data synchronisation. The charging connector board resolves poor contact issues in the USB-C port. Suitable for technicians looking for a reliable and lasting repair.

Technical Specifications

• Part type: USB-C charging port board
• Compatibility: Honor Magic 4 Lite 4G
• Quality: Premium

When to Replace

• The mobile phone does not charge or charges intermittently when moving the cable
• The computer does not recognise the device via USB
• Excessive play or damaged pins inside the USB-C input
• Persistent poor contact after cleaning the charging input — confirm the diagnosis

Notes for the Technician

• Test before fitting: before securing, confirm charging and, where applicable, data transfer and the microphone. Thus, if there is any issue, the return or warranty is handled quickly and simply.
• Installation difficulty: Medium.
• Opening performed from the back cover with moderate heat; fixing adhesive sold separately.
• Always disconnect the battery before handling the bottom board and interconnection flex cables.
• Check the integrity of the sealing gasket and align the USB-C input with the outer chassis opening.
• Perform charging and data transfer tests after engaging the connectors.

What Distinguishes This Version

This is a Premium level part, the highest range available in the compatible replacement market. It is the ideal solution for workshops and demanding customers seeking stability in daily charging.

Frequently Asked Questions

Is this charging port compatible with the Honor Magic 4 Lite 5G?
No, this version was designed specifically for the 4G variant (ANY-LX1 / ANY-LX2 / ANY-LX3), and there may be differences in the connector layout compared to the 5G variant.

Does the part include the integrated bottom microphone?
The sub-board integrates the usual contacts and components of the bottom section, maintaining the charging circuit and audio connections associated with the charging module.
