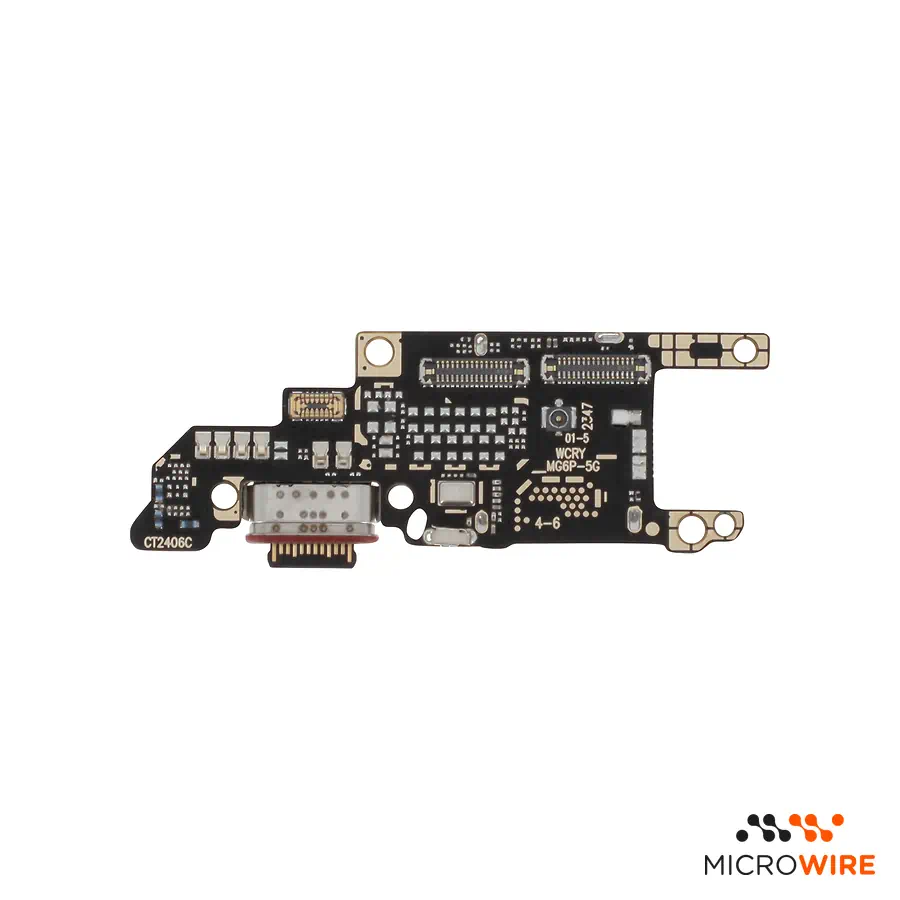

Honor Magic6 Pro Charging Port

Charging Port for Honor Magic6 Pro: USB-C Connector and Stable Charging

This charging port is intended for replacing the damaged module in the Honor Magic6 Pro, restoring the device's power connection. The charging port resolves power supply failures and cable communication issues with other equipment.

Technical Specifications

• Part type: USB-C charging port
• Compatibility: Honor Magic6 Pro (BVL-AN16)
• Quality: Premium

When to Replace

• The mobile does not detect the charging cable
• Poor contact when plugging in the USB-C cable, requiring forced positions
• Intermittent charging or absence of current flow — confirm the diagnosis
• The computer does not recognize the equipment via cable data connection

Notes for the Technician

• Test before applying: before fixing, confirm charging and, if applicable, data transfer and the microphone. Thus, if there is any issue, the return or warranty is handled quickly and simply.
• Difficulty: Medium
• The intervention requires careful removal of the back cover using moderate heat
• Always disconnect the battery before handling or disconnecting the lower charging board
• Verify the correct alignment of the USB-C connector and peripheral flex cables before closing the equipment
• Adhesive for closing the device sold separately

What Distinguishes This Version

This is a Premium level part, the highest range available in the aftermarket market for this model. It is the indicated choice for technicians seeking a reliable repair adjusted to the equipment specifications.

Frequently Asked Questions

Does this charging port resolve computer recognition issues on the Honor Magic6 Pro?
Yes, provided the fault lies in the physical data tracks of the previous USB-C connector and not in damaged lines of the main board.

Is the part compatible with other models of the Magic6 series?
No, the component was designed specifically for the internal structure and alignment of the Honor Magic6 Pro (BVL-AN16 code).
