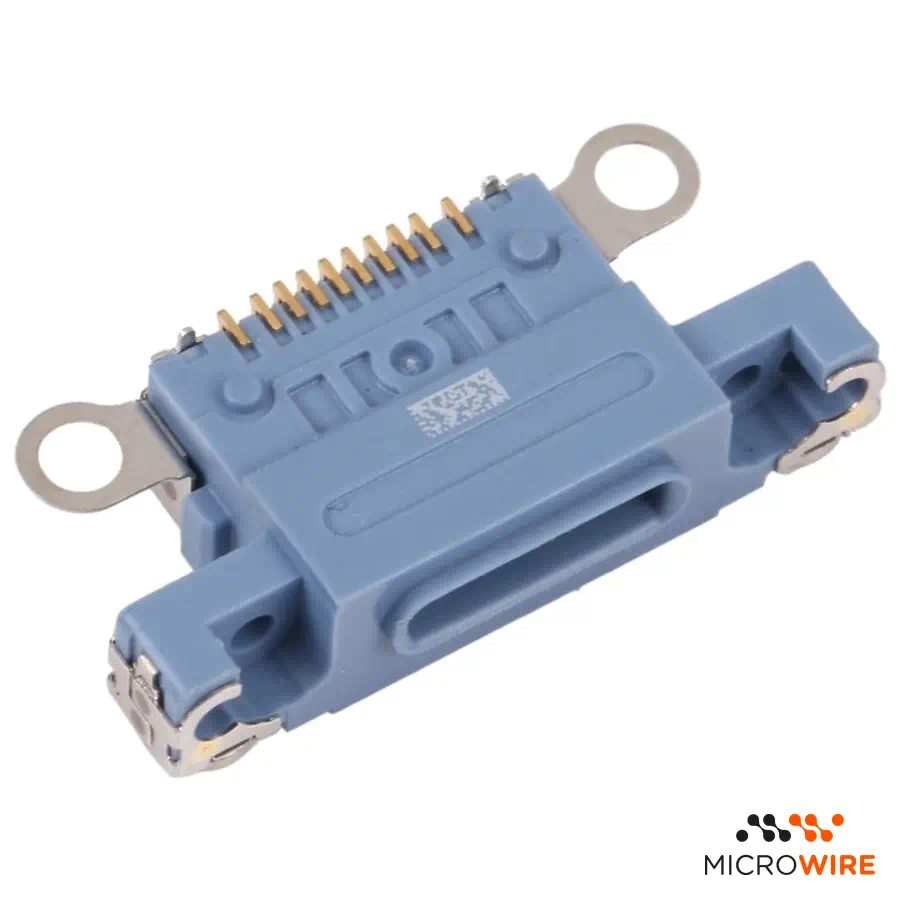

iPhone 14 and Plus Charging Port Blue

Charging Port for iPhone 14 and iPhone 14 Plus: Lightning Connector and Microphone Restoration

This blue charging port is an original Apple pulled part, suitable for solving power and synchronisation faults. The module integrates the Lightning charging flex cable, restoring proper conductivity and data communication on the iPhone 14 and iPhone 14 Plus.

Technical Specifications

• Part type: Charging port and Lightning connector
• Compatibility: iPhone 14 (A2649, A2881, A2882, A2883, A2884)
• Technical reference: CNN-IPH14-AZ
• Colour: Blue
• Quality: Original — Pulled

When to Replace

• The phone does not detect the Lightning cable or fails to start charging
• Poor contact in the socket requiring the cable to be positioned at a specific angle
• The computer does not recognise the device during data transfer
• The bottom microphone does not capture the voice during calls — confirm the diagnosis
• Moisture, corrosion or damaged pins inside the charging port

Notes for the Technician

• Test before applying: before fixing, confirm charging and, where applicable, data transfer and the microphone. Thus, if there is any issue, the return or warranty is handled quickly and simply.
• Installation difficulty: Advanced.
• Recommended opening via the back glass to access the lower chassis area.
• Requires removal of the bottom loudspeaker and Taptic Engine haptic motor to release the old module.
• Exercise extra care with the internal screws of different dimensions and adjacent antenna connections.
• The adhesive seal for watertight closure of the back cover is sold separately.

What Distinguishes This Version

This is a part pulled from another phone, ensuring a millimetric fit and authentic structural tolerances. It is the appropriate choice for workshops and technicians who demand factory-specification components for reliable repairs.

Frequently Asked Questions

Is this component compatible with both the iPhone 14 and the iPhone 14 Plus?

Yes, the charging port shares the same connections and mounting dimensions on both devices.

Does replacing the charging port resolve audio issues in the main microphone?

Yes, the flex includes the bottom call microphone; however, if the anomaly persists on the mainboard, confirm the technical diagnosis.

Each component is tested by Micro Wire before dispatch to ensure full functionality, with fast delivery from Portugal. If you do not want to repair it, we can do it for you.
