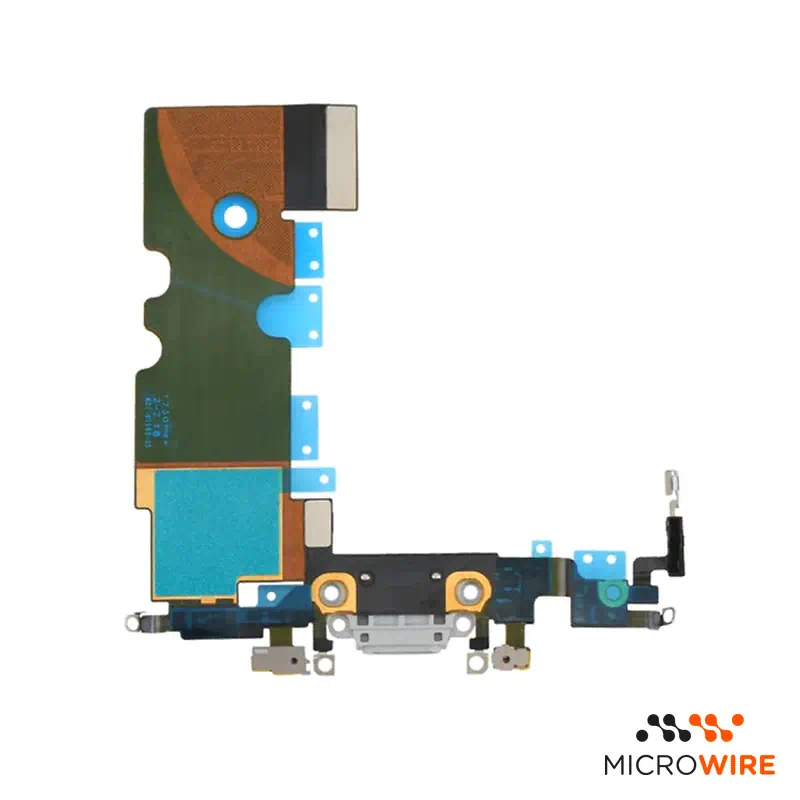

iPhone 8 SE 2020 Charging Port White

Charging Port for iPhone 8 and iPhone SE 2020: Lightning Charging and Data Restoration

Esta charging port restores the Lightning connection and data communication on the iPhone 8 and iPhone SE (2020). This is an original Apple part, suitable for replacing a damaged or loose charging flex cable at the connector. The white color of the connector maintains the corresponding aesthetics for models with a light front panel.

Technical Specifications

• Part type: Lightning charging port flex cable
• Compatibility: iPhone 8 (A1863, A1905, A1906); iPhone SE (2020) (A2275, A2296, A2298)
• Quality: Original — Pulled
• Colour: White
• Reference: MW-PC8-SEBRANCOCOMP

When to Replace

• The mobile phone does not detect the charging cable
• Poor contact or the need to position the cable at a specific angle
• The computer does not recognize the equipment via USB — confirm the diagnosis
• Bottom microphone with audio capture failures during calls

Notes for the Technician

• Test before applying: connect the part to the equipment and confirm its operation before securing or gluing it permanently. Thus, if there is any problem, the return or warranty is handled quickly and simply.
• Difficulty: Medium
• Requires prior removal of the screen, battery, bottom speaker, and Taptic Engine motor to access the flex
• Necessary to transfer metal brackets and retention screws from the old part
• Be careful with the antenna cables and integrated microphones glued to the housing
• New adhesive for fixing, if required, is sold separately

What Distinguishes This Version

This pulled version preserves Apple's manufacturing tolerances and materials to ensure a rigorous fit in the housing. It is the suitable choice for technicians who intend to maintain the factory standards of the customer's mobile phone.

Frequently Asked Questions

Does this charging port fit both the iPhone 8 and the iPhone SE (2020)?

Yes, the lower internal architecture and flex connections of this component are directly compatible with both models.

The mobile phone does not charge; is the problem always the charging port?

Not always, as battery failures, accumulated dirt in the port, or power management faults on the board also cause this symptom — confirm the diagnosis before replacement.

Item tested by Micro Wire before shipment with fast dispatch from Portugal. If you do not want to repair it ourselves we can do it for you.
