iPhone XR Charging Port White

iPhone XR Charging Port: Stable Lightning Connection and Microphone

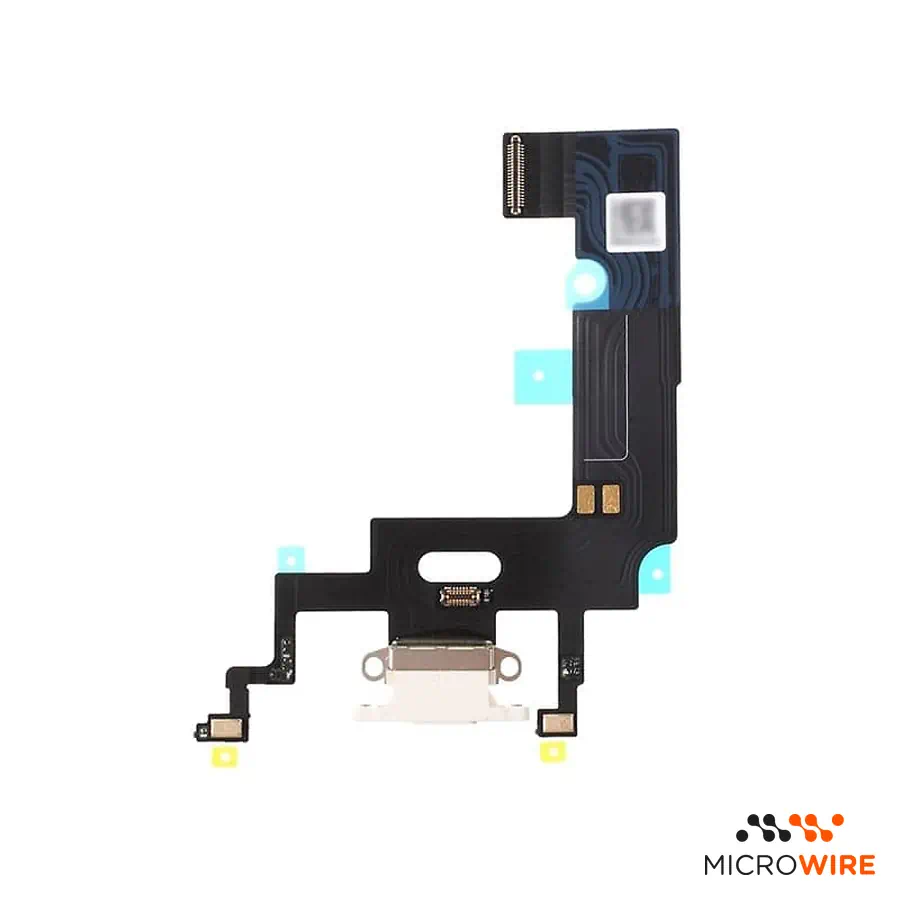

This charging port for iPhone XR restores the physical charging and data connection on your mobile phone. This is an original Apple component recovered from another device, ideal for restoring the connectivity of the Lightning connector with full physical compliance. The component integrates the charging connector in white colour and the associated flex circuit.

Technical Specifications

• Part type: Charging port and Lightning connector
• Compatibility: iPhone XR (A1984, A2105, A2106, A2107, A2108)
• Colour: White
• Quality: Original — Pulled

When to Replace

• The iPhone XR does not detect the Lightning cable or does not start charging.
• The mobile phone only charges when the cable is placed in a specific position.
• The computer does not recognise the USB connection of the mobile phone.
• The bottom microphone does not capture the voice during calls — confirm the diagnosis.

Notes for the Technician

• Test before applying: connect the part to the equipment and confirm its operation before fixing or gluing it permanently. Thus, if there is any problem, the return or warranty is handled quickly and simply.
• Difficulty: Medium to Advanced.
• The intervention requires the prior removal of the screen, bottom loudspeaker and Taptic Engine haptic motor to access the flex.
• Be careful with the screws of different lengths near the lower section of the chassis to avoid damage to the structure.
• Check the correct alignment of the port with the outer opening before fixing the definitive screws.

What Distinguishes This Version

Being a recovered component from equipment, it ensures exact fitting tolerances and manufacturing materials identical to factory ones. It is the indicated choice for technicians who intend to maintain the structural fidelity of repairs on the iPhone XR.

Frequently Asked Questions

Can this white charging port be fitted to an iPhone XR of another colour?

Yes, the technical compatibility is the same in any iPhone XR, although the visual finish of the Lightning input remains in the white shade.

The iPhone does not charge, does replacing this part always solve the problem?

It solves whenever the anomaly results from damaged pins, compacted internal dirt or a cut in the flex, but if the fault is in the logic board charging circuit, electronic repair will be necessary — confirm the diagnosis.

Each unit is subject to inspection and tested by Micro Wire before shipping, with fast dispatch from Portugal. If you do not want to repair, we can do it for you.
