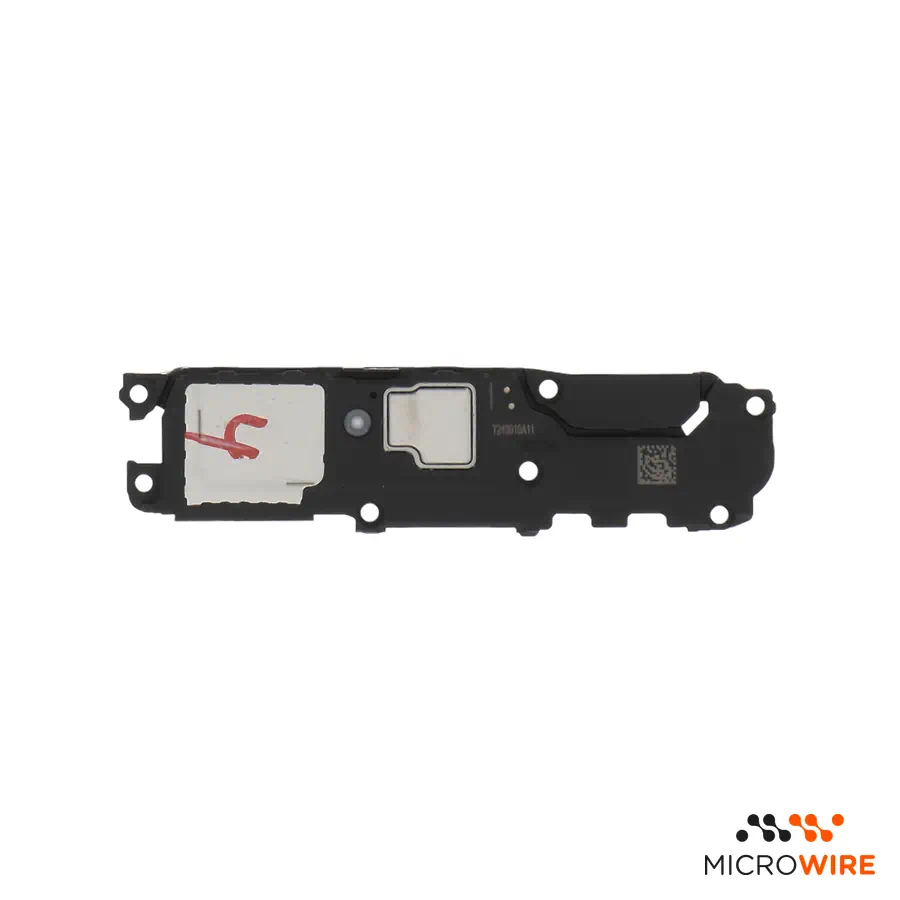

Loudspeaker Buzzer Honor Magic 7 Lite

Loudspeaker Buzzer for Honor Magic 7 Lite: Main Sound and Clear Ringers

The loudspeaker buzzer for Honor Magic 7 Lite is the component responsible for outputting hands-free audio, ringtones, alarms, and multimedia playback. This bottom loudspeaker module allows you to restore clear acoustics on the phone when the main sound presents failures or distortion.

Technical Specifications

• Part type: Bottom loudspeaker buzzer
• Compatibility: Honor Magic 7 Lite
• Quality: Premium

When to Replace

• No sound in videos, music, or speakerphone games
• Ringtones and notifications muted or inaudible
• Sound with metallic noise, distortion, or crackling
• Abnormally low volume even at maximum level — confirm the diagnosis

Notes for the Technician

• Test before applying: connect the part to the equipment and confirm its operation before securing or gluing it definitively. Thus, if there is any problem, the return or warranty is handled quickly and simply.
• Repair difficulty: Medium.
• Access through careful removal of the back cover with moderate heat.
• Necessary to unscrew the bottom plastic protection module to reach the buzzer contacts on the sub-board.
• Clean the dust outlet grille on the chassis before seating the new module to ensure clean audio passage.
• New adhesive to close the equipment is sold separately.

What Distinguishes This Version

This Premium quality version represents the most advanced line of compatible parts for repairing this model. It is the indicated option for professional technicians seeking a precise dimensional fit and reliable sound restoration without disproportionate costs.

Frequently Asked Questions

Does this component solve issues with in-ear call audio?
No. This module is the bottom buzzer for hands-free sound; ear audio is generated by the top earpiece of the Honor Magic 7 Lite.

Is soldering necessary to install this loudspeaker?
No, the component connects by direct pressure to the bottom board contacts via conductive springs.
