Loudspeaker Xiaomi Redmi 14C

Loudspeaker for Xiaomi Redmi 14C: Multimedia Sound Restoration

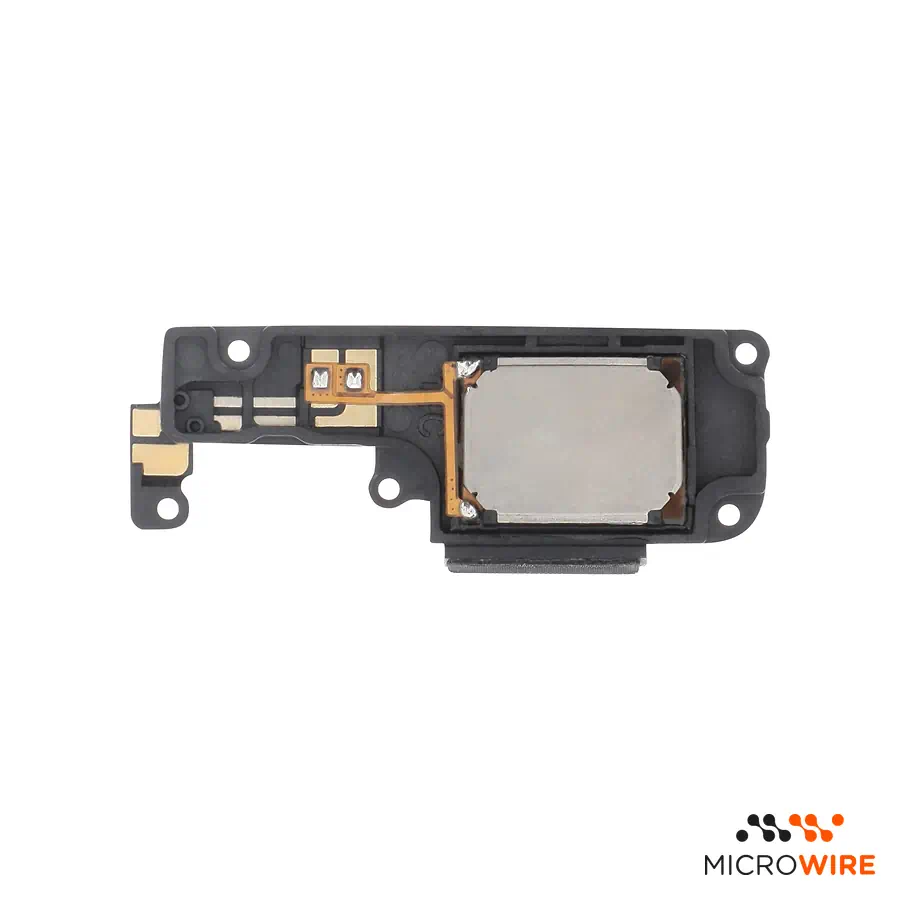

This loudspeaker for Xiaomi Redmi 14C is a pulled original part, ideal for restoring the correct audio reproduction of the device. The loudspeaker module restores the sound of the lower speaker for music playback, ringtones and hands-free calls with total physical fidelity.

Technical Specifications

• Part type: Lower loudspeaker (buzzer)
• Compatibility: Xiaomi Redmi 14C (2409BRN2CY)
• Quality: Original — Pulled

When to Replace

• No sound when playing videos or music on the main speaker
• Distorted sound, with static noise or excessively low volume
• The mobile phone does not ring when receiving calls or notifications
• Intermittent audio cut in hands-free mode — confirm diagnosis

Notes for the Technician

• Test before applying: connect the part to the equipment and confirm its operation before fixing or gluing it definitively. Thus, if there is any problem, the return or warranty is handled quickly and simply.
• Difficulty level: Medium.
• Opening carried out by removing the back cover with moderate heat.
• The sound module is located in the lower section of the chassis, superimposed on the secondary charging board (sub-board).
• Check the metal pressure contacts between the module and the secondary board before fixing the screws.

What Distinguishes This Version

This is a component removed from functional equipment, manufactured by the brand itself and subject to physical inspection. It is the indicated option for technicians who intend to maintain exact factory dimensions without acoustic fit variations.

Frequently Asked Questions

Does this component include the upper earpiece for calls?
No, this module corresponds only to the lower loudspeaker (multimedia speaker/buzzer) of the Xiaomi Redmi 14C.

Is it necessary to solder the component during installation?
No, the module makes direct contact with the secondary board through pressure pins.
