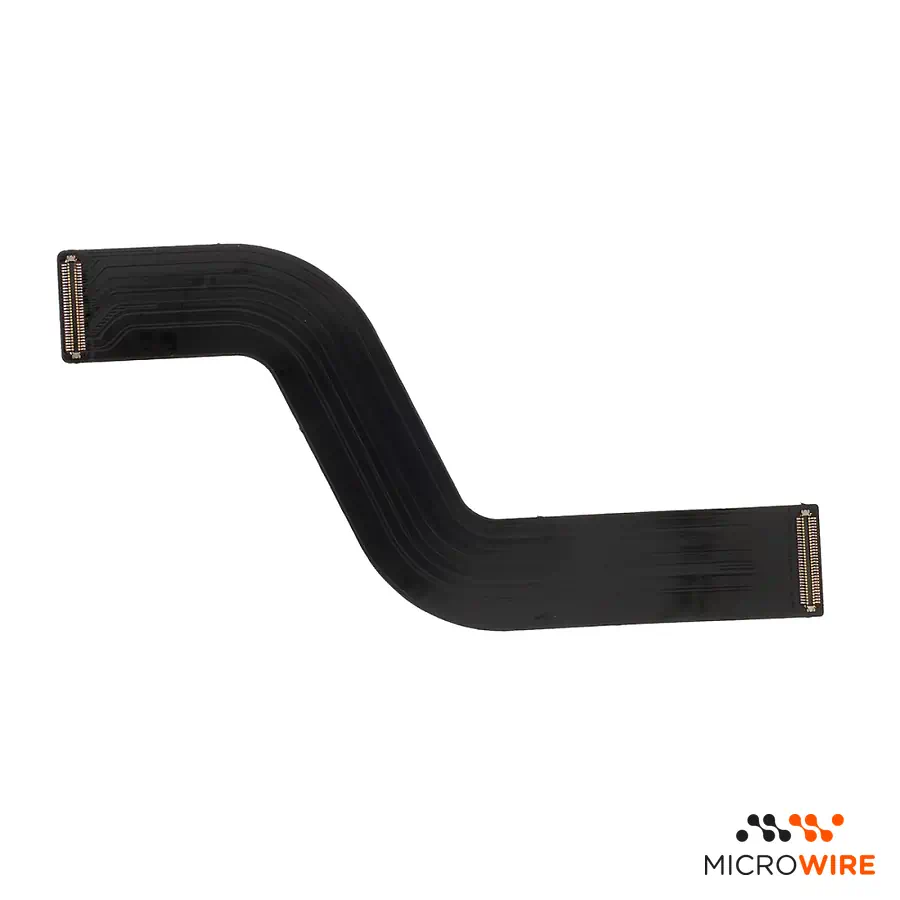

Main Flex Cable Xiaomi Mi 9T and 9T Pro

Main Flex Cable for Xiaomi Mi 9T and Xiaomi Mi 9T Pro: Board Interconnection

The main flex cable for Xiaomi Mi 9T and Xiaomi Mi 9T Pro re-establishes data and power communication between the motherboard and the sub-board. This interconnection flex cable is an original part taken from a functional device, ensuring the correct physical fit in the chassis track.

Technical Specifications

• Part type: Main interconnection flex cable
• Compatibility: Xiaomi Mi 9T (M1903F10G); Xiaomi Mi 9T Pro (M1903F11G)
• Quality: Original — Pulled

When to Replace

• The mobile phone does not charge or recognise the charger — confirm the diagnosis
• Lower microphone failure during calls — confirm the diagnosis
• No sound from the lower ringer loudspeaker — confirm the diagnosis
• Flex cable damaged or torn during a previous intervention

Notes for the Technician

• Test before applying: connect the part to the device and confirm its operation before securing or gluing it permanently. Thus, if there is any issue, the return or warranty is handled quickly and simply.
• Difficulty: Medium; requires removal of the glass back cover and the upper and lower plastic shielding.
• Always disconnect the battery before handling or disconnecting the main flex cable.
• Be careful with the FPC connectors at both ends to avoid damaging the board sockets.
• Secure the cable along the chassis path to avoid creases or pressure when closing the mobile phone; fixing adhesive is sold separately.

What Distinguishes This Version

This pulled version maintains the integrity of the materials and conductive tracks produced by the manufacturer. It is the suitable solution for technicians who intend to restore the rigorous operation of the mobile phone without changes to fit or dimensional tolerance.

Frequently Asked Questions

Is this main flex cable compatible with both models, Mi 9T and Mi 9T Pro?
Yes, the interconnection cable shares the same internal architecture and FPC connectors on the Xiaomi Mi 9T and Xiaomi Mi 9T Pro.

Does replacing this flex resolve microphone or charging failures?
If the data and current lines are interrupted in the interconnection flex cable, the replacement restores these functions; however, check beforehand whether the fault lies in the secondary charging board.
