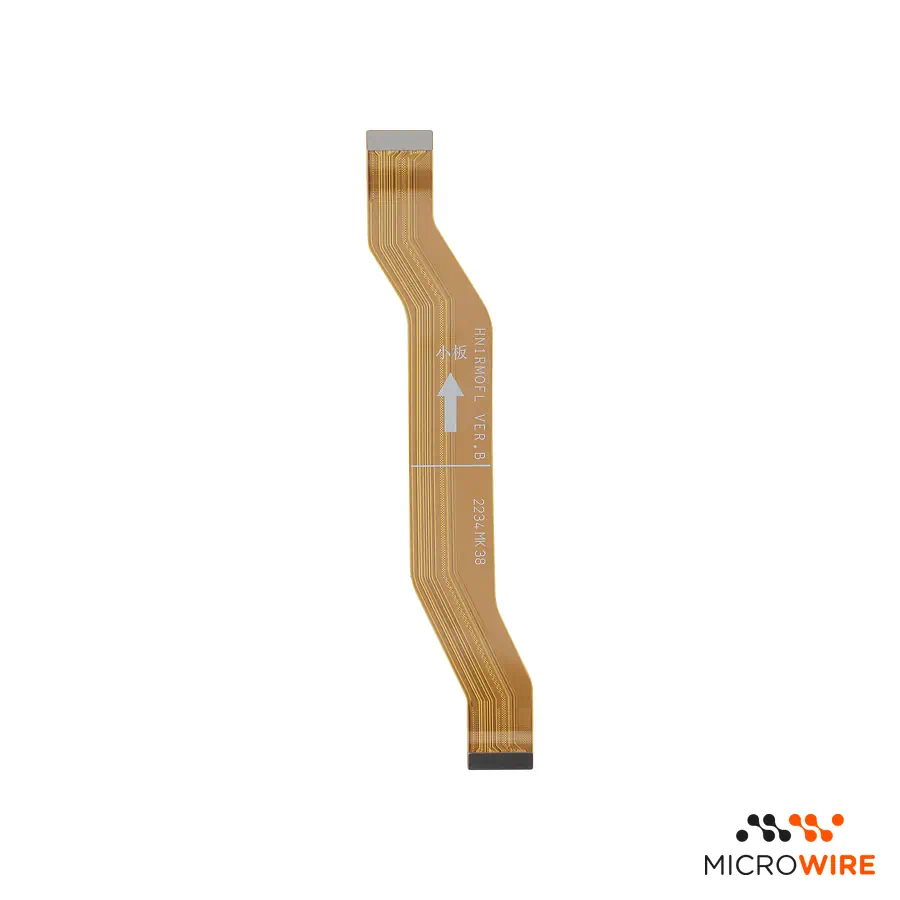

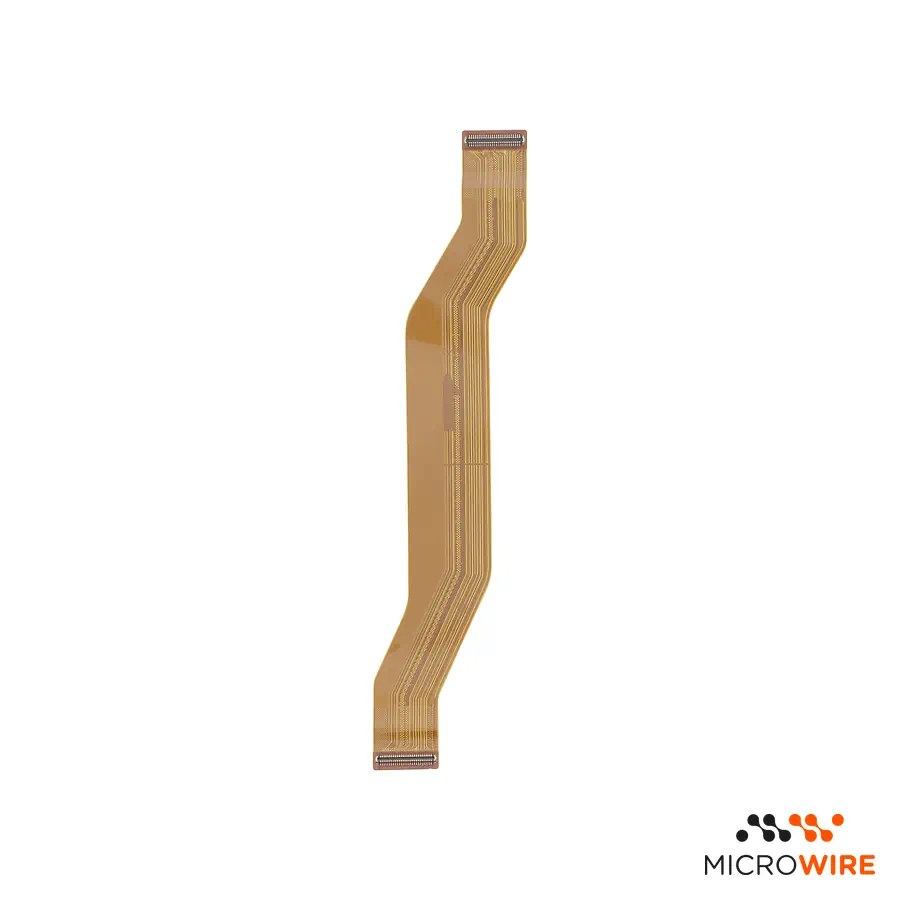

Main Flex Honor Magic 5 Lite

Main Flex for Honor Magic 5 Lite: Connection between Mainboard and Charging Board

The main flex for the Honor Magic 5 Lite re-establishes data and power communication between the mainboard and the lower board. This interconnection flex cable is essential for resolving charging and signal faults resulting from broken traces or wear.

Technical Specifications

• Part type: Main interconnection flex cable
• Compatibility: Honor Magic 5 Lite
• Quality: Premium

When to Replace

• The mobile does not charge or shows unstable charging — confirm the diagnosis
• The computer does not recognise the device via USB — confirm the diagnosis
• Lower microphone or loudspeaker without sound after impact — confirm the diagnosis
• No mobile network signal due to an interruption in the lower board data line — confirm the diagnosis

Notes for the Technician

• Test before applying: connect the part to the device and confirm its operation before fixing or gluing it permanently. Thus, if there is any problem, the return or warranty is handled quickly and simply.
• Repair difficulty: Medium
• Requires detaching the back cover with moderate heat to access the internal shielding; new adhesive sold separately
• Always disconnect the battery before handling or releasing the FPC connectors of the main flex
• Avoid bending the cable at sharp angles during assembly over the battery
• Check the charging function and microphone capture before closing the back cover permanently

What Distinguishes This Version

Esta peça de qualidade Premium oferece a gama mais alta do mercado de substituição, garantindo tolerâncias precisas nos conectores FPC. É a opção indicada para técnicos profissionais que procuram fiabilidade total numa intervenção rápida.

Frequently Asked Questions

Does this flex cable solve charging issues on the Honor Magic 5 Lite?
Yes, if the fault originates from broken cable traces between the lower board and the motherboard. Should the fault lie within the USB-C port itself, replacing the charging board may be necessary.

Is the flex for the Honor Magic 5 Lite compatible with other versions of the Magic line?
No, this cable was designed specifically for the dimensions and internal connectors of the Honor Magic 5 Lite (models RMO-NX1 and RMO-NX3).
