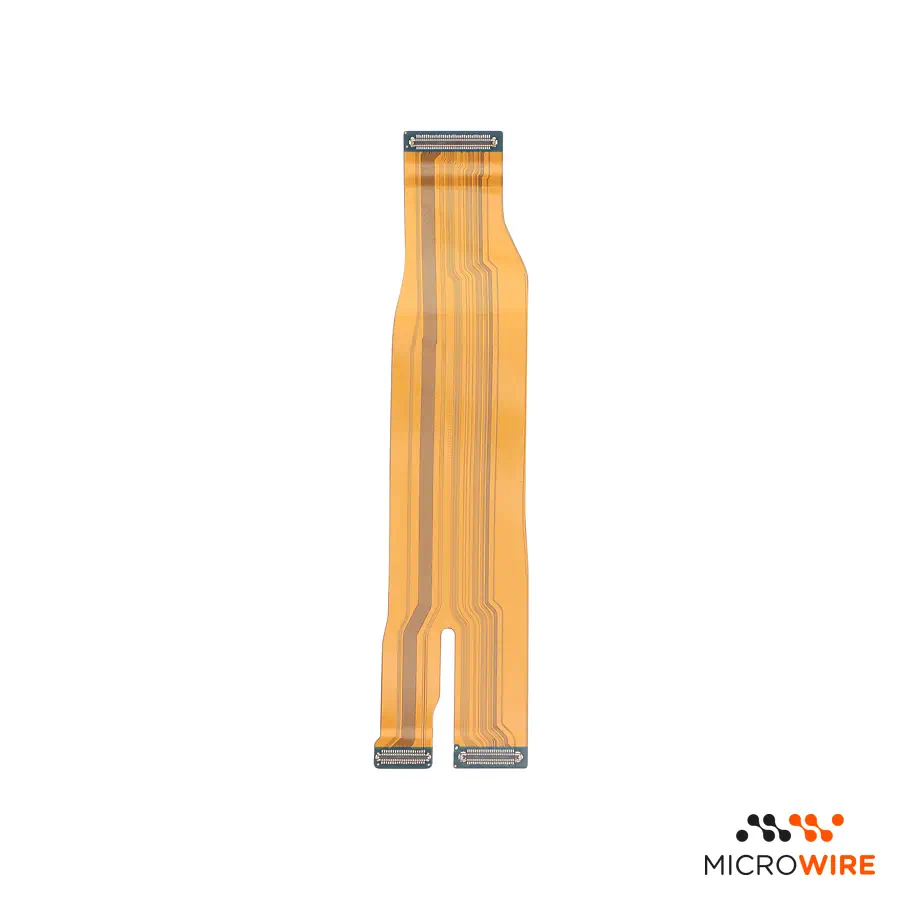

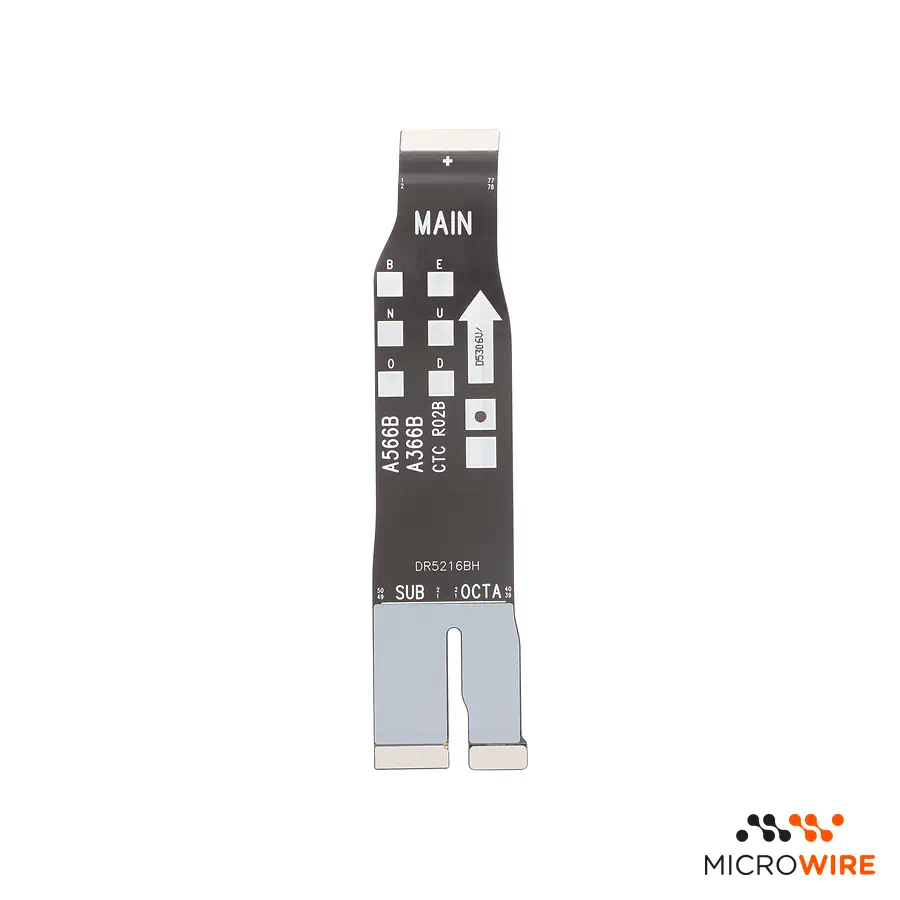

Main Flex Samsung Galaxy A56 5G

Main Flex for Samsung Galaxy A56 5G: Stable Connection Between Boards

The main flex for Samsung Galaxy A56 5G restores data and power communication between the main board and the lower charging board. This interconnection flex cable is suitable for resolving charging failures or signal loss caused by broken traces.

Technical Specifications

• Part type: Main interconnection flex
• Compatibility: Samsung Galaxy A56 5G (SM-A566B)
• Quality: Compatible

When to Replace

• The phone does not charge or is not recognised by USB — confirm diagnosis.
• Lower microphone or main loudspeaker stopped emitting sound after a drop.
• No mobile network signal after technical intervention on the lower board — confirm diagnosis.
• Previous flex cable creased, torn or with damaged FPC connectors.

Notes for the Technician

• Test before applying: connect the part to the equipment and confirm its operation before fixing or gluing it definitively. Thus, if there is any problem, the return or warranty is handled quickly and simply.
• Repair difficulty: Medium.
• Access requires removing the rear cover and internal plastic shield.
• Always disconnect the battery before handling or plugging in the FPC connectors.
• Adhesive to close the rear cover sold separately.

What Distinguishes This Version

This compatible part has been selected to ensure precise dimensional tolerances and reliable electrical contact on the workbench. It is the suitable option for technicians seeking a reliable and cost-effective repair.

Frequently Asked Questions

Does this flex solve slow charging issues on the Galaxy A56 5G?
If the data or power lines of the previous flex are damaged, the replacement restores the correct passage of current, provided the sub-board and USB port are operational.

Is the main flex compatible with other versions of the Galaxy A line?
No, the length and pinout of the FPC connectors are intended exclusively for the Samsung Galaxy A56 5G.
