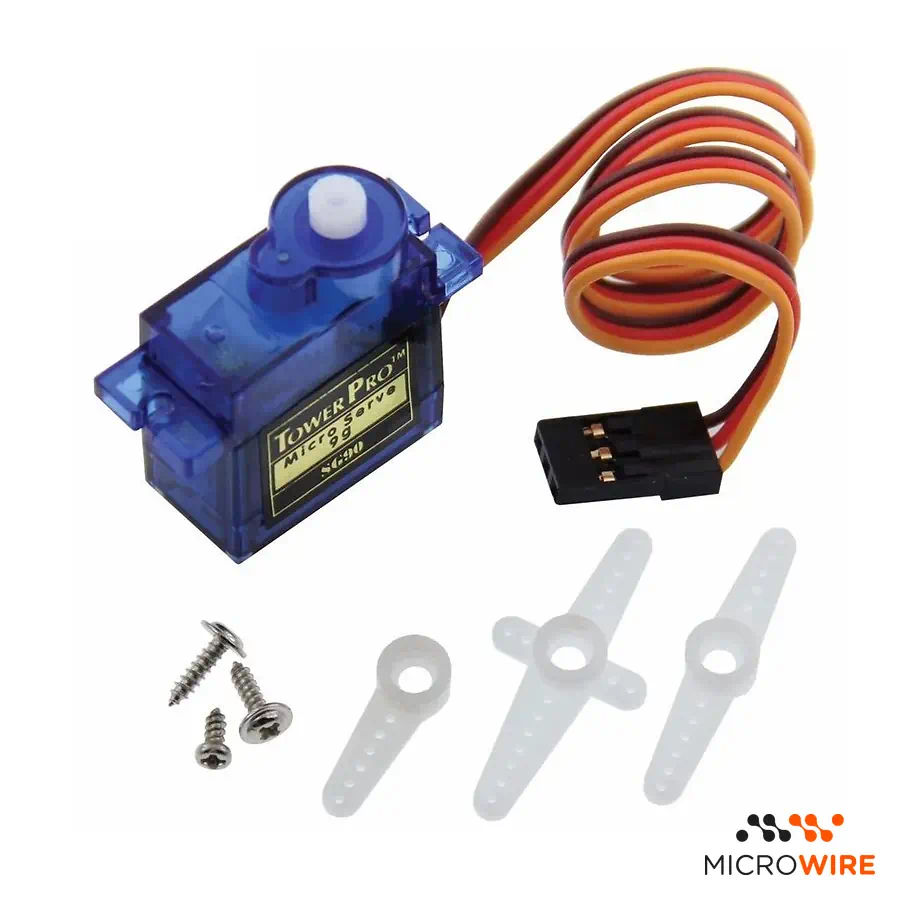

Motor Micro Servo 9g Tower Pro 4.8V to 6V SG90 - 360º

Micro Servo Motor 9g SG90 360º: Continuous Rotation for Precision Repairs

The Micro Servo Motor 9g Tower Pro SG90 in its 360º version offers continuous rotation, an essential feature for robotics projects and mechanisms requiring uninterrupted movement. Unlike standard servos, this model allows for speed and direction control, instead of angular positioning, making it the ideal replacement part for traction systems or winches. Its lightweight and compact construction ensures seamless integration in repairs where space and weight are critical.

Technical Specifications

• Operating Voltage: 4.8V to 6.0V DC
• Rotation Type: Continuous (360 degrees)
• Torque (Stall): 1.6 kg/cm (at 4.8V)
• No-Load Speed: 0.12 sec/60° (at 4.8V, speed reference)
• Weight: 9 grams
• Dimensions: 22mm x 12.5mm x 29.5mm
• Connector: JR/Futaba Universal Type
• Gear Material: Nylon

Usage / Installation Tips

To ensure the longevity of the servo, always operate within the recommended voltage range (4.8V-6V). A higher voltage can permanently damage the motor and internal electronics. When installing, ensure the servo is firmly fixed, but avoid overtightening the mounting screws to prevent deforming the plastic casing.

Micro Wire Quality Seal

At Micro Wire, reliability is not an option. Each Micro Servo Motor SG90 360º undergoes a rigorous manual inspection and a full functional test by our technical team before being dispatched. This process ensures that you receive a 100% functional and defect-free replacement part, ready to be integrated into your project.

Frequently Asked Questions

Does this servo return to a central position like a normal servo?

No. Being a continuous rotation servo, it does not have a stop point or a central position. The PWM signal controls the speed and direction of rotation, not a specific angle.

Can I use it with Arduino or Raspberry Pi?

Yes, it is fully compatible with standard servo libraries for Arduino, Raspberry Pi, and other microcontroller platforms that generate 50Hz PWM signals.

What is the difference between this model and the standard SG90?

The standard SG90 moves to a specific angle (0-180 degrees) and maintains that position. This 360º model rotates continuously, and the control signal adjusts its speed and direction of rotation.

Ensure the precision and reliability of your repair with a verified component. Add to basket and receive a superior quality part, with fast shipping and the trust of Micro Wire.
