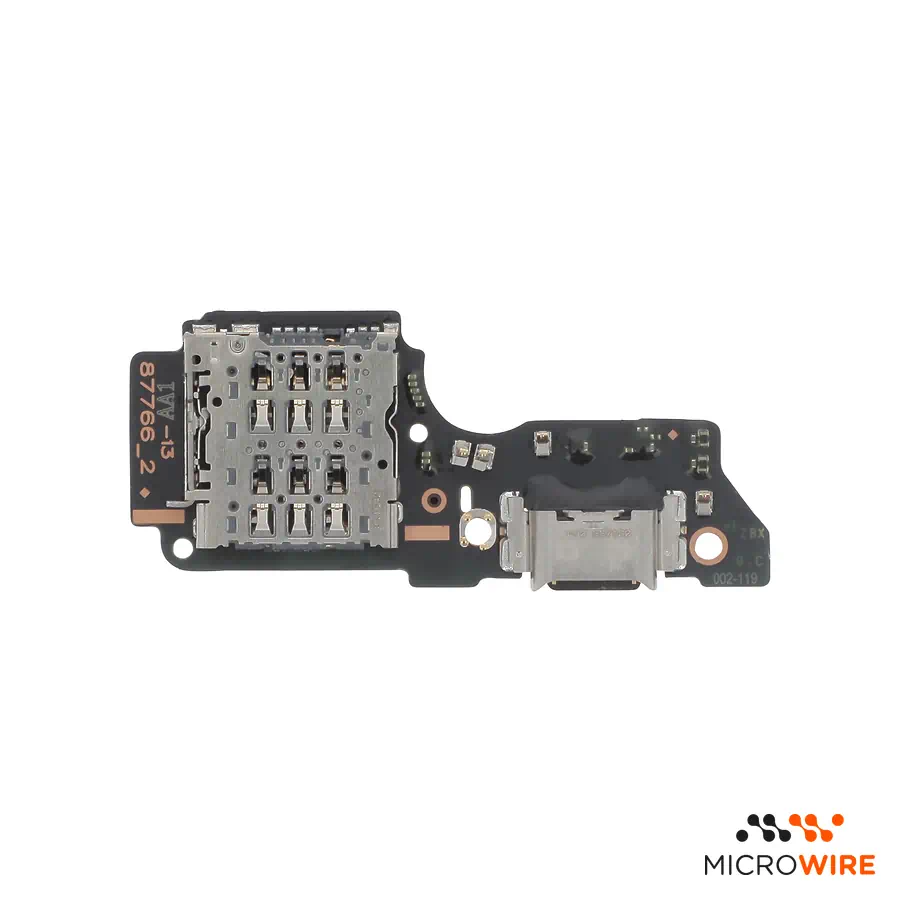

Oppo Reno 12 F 4G Charging Port

Charging Port for Oppo Reno 12 F 4G: USB Connection and Charging Restoration

This charging port is designed to restore the charging and data transfer connection on your mobile phone, being an original Oppo part. Replacing the charging port board resolves poor contact failures and lack of power supply in the equipment.

Technical Specifications

• Part type: Charging port
• Compatibility: Oppo Reno 12 F 4G (CPH2687)
• Reference: PC-OR12F4G
• Quality: Original — Pulled

When to Replace

• The phone does not detect the USB cable or does not start charging
• Poor contact in the USB port, requiring the cable to be positioned at certain angles
• Failure in phone recognition when connected to the computer
• Slow charging after physical damage or moisture in the USB input — confirm diagnosis

Notes for the Technician

• Test before applying: before fixing, confirm charging and, if applicable, data transfer and microphone. Thus, if there is any issue, return or warranty is handled quickly and simply.
• Difficulty: Medium
• Access to the lower module requires careful removal of the back cover and lower shield
• Always disconnect the battery before working on the lower board interconnect flex
• Check the condition of the seal gasket and lower microphone during assembly

What Distinguishes This Version

This board was removed from another equipment and maintains the manufacturer's build. It is the suitable option for technicians who want a repair faithful to factory specifications.

Frequently Asked Questions

Is this charging port compatible with the 5G version of the Oppo Reno 12 F?
No, this component is strictly intended for the Oppo Reno 12 F 4G variant (reference PC-OR12F4G), and there may be layout differences compared to the 5G version.

Does replacing this board resolve issues in the call microphone?
If the main microphone is integrated into the lower charging board, replacing this module can resolve voice capture failures caused by faults in that area.
