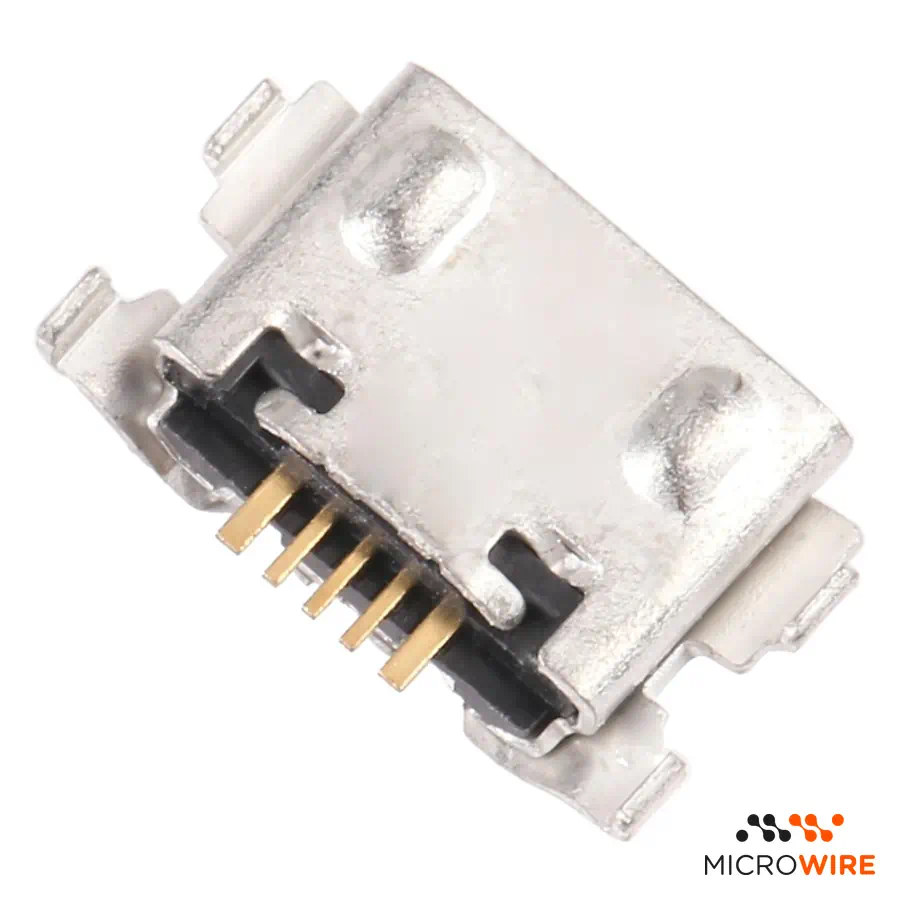

Samsung A01 A03 A03 Core Charging Port

Charging Port for Samsung Galaxy A01, A03 and A03 Core: Stable Power and Data

This replacement charging port restores current flow and data communication in the Samsung Galaxy A01, Samsung Galaxy A03 and Samsung Galaxy A03 Core. The power plug is suitable for technical work where the Micro-USB port is damaged or has worn contacts.

Technical Specifications

• Part type: Micro-USB charging port
• Compatibility: Samsung Galaxy A01 (SM-A015F, SM-A015G, SM-A015M); Samsung Galaxy A03 (SM-A035F, SM-A035G, SM-A035M); Samsung Galaxy A03 Core (SM-A032F, SM-A032M)
• Internal reference: CN-A015F
• Quality: Premium

When to Replace

• The phone does not detect the charging cable or does not charge
• Need to position the cable at a specific angle to charge
• The computer does not recognise the device via the USB cable
• Internal pins of the Micro-USB port broken or oxidized
• Poor contact when plugging in the charging connector — confirm diagnosis

Notes for the Technician

• Test before applying: before securing, confirm charging and, if applicable, data transfer and microphone. Thus, if there is any issue, the return or warranty is handled quickly and simply.
• Difficulty: Medium to Advanced (requires a soldering station to remove and attach the connector to the charging board).
• It is necessary to disassemble the back cover and isolate the sub-board before applying heat.
• It is recommended to use Kapton thermal tape to protect neighbouring SMD components and the microphone.
• Check the continuity of the solder pins and test the charging voltage after installation.

What Distinguishes This Version

This is a Premium quality replacement part, designed to offer exact physical tolerances and resistant mechanical anchorage. It is the ideal option for professional benches performing component-level repairs with high reliability.

Frequently Asked Questions

Is this connector compatible with Samsung Galaxy A01, A03 and A03 Core?
Yes, the connector shares the same solder footprint and structure on Samsung Galaxy A01 (SM-A015F), Galaxy A03 (SM-A035F) and Galaxy A03 Core (SM-A032F) models.

Does replacement require soldering?
Yes, this loose component requires desoldering the previous part and soldering the pins directly to the phone's sub-charging board.
