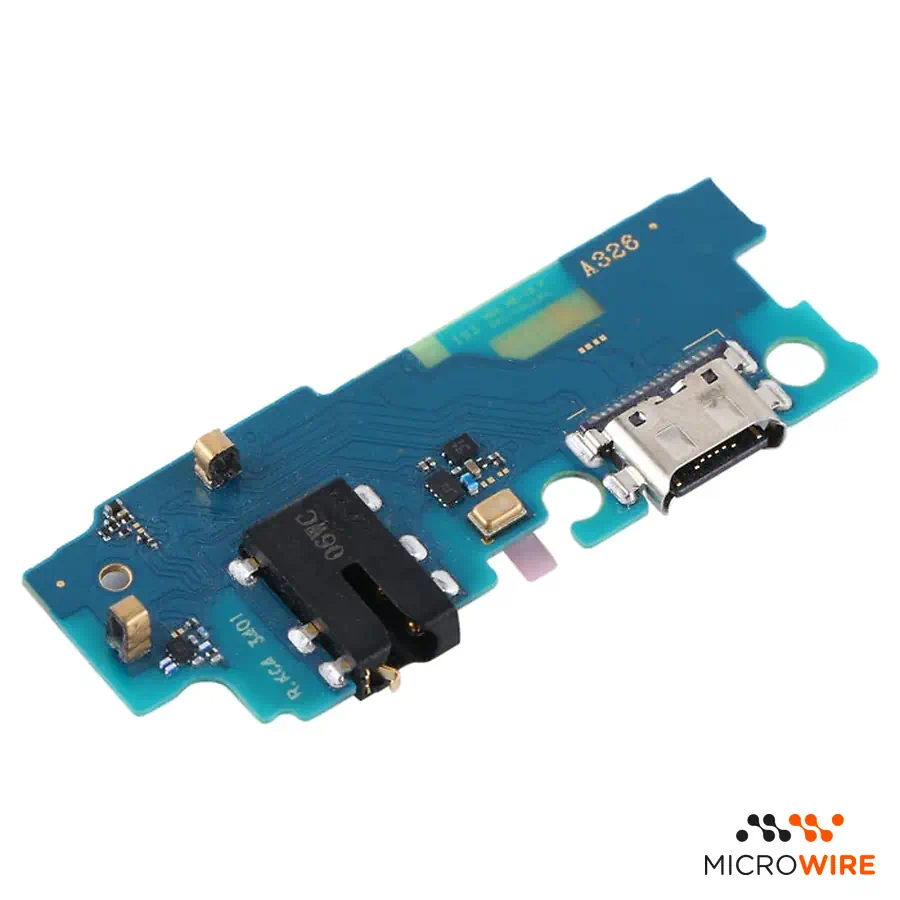

Samsung Galaxy A32 5G Charging Port

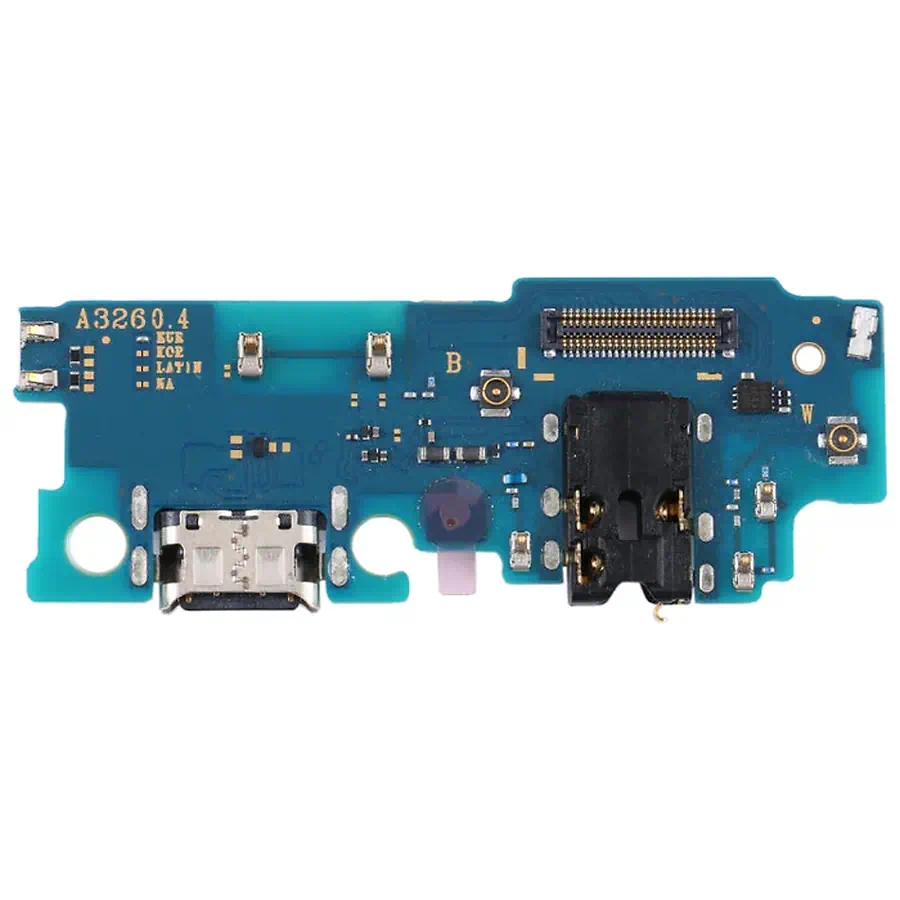

Charging Port for Samsung Galaxy A32 5G: Type-C Connector and Sub Board

This charging port for Samsung Galaxy A32 5G restores the USB-C connection for power charging and stable data transfer, being an original Samsung part pulled from another mobile phone. It replaces the damaged sub charging board to recover full functionality of the bottom port.

Technical Specifications

• Part type: Charging port (sub board)
• Compatibility: Samsung Galaxy A32 5G (SM-A326B, SM-A326B/DS, SM-A326BR/DS, SM-A326BR, SM-A326U, SM-A326W, SM-A326U1)
• Part code: GH96-14158A
• Quality: Original — Pulled

When to Replace

• The USB-C cable feels loose or does not plug in all the way
• The phone does not detect the charger or only charges in a certain position
• Absence of data transfer or recognition when connecting to a computer
• Intermittent charging after liquid damage or ingrained dirt — confirm diagnosis

Notes for the Technician

• Test before applying: connect the part to the equipment and confirm its operation before securing or gluing it definitively. Thus, if there is any problem, the return or warranty is handled quickly and simply.
• Difficulty: Medium
• Requires prior removal of the back cover and bottom shield with unscrewing
• Disconnect the antenna coaxial cable and the interconnection flex to the main board before lifting the charging board
• Fixing or back cover adhesive sold separately
• Check stable charging connection and data transmission before sealing the phone

What Distinguishes This Version

This is a sub board pulled from equipment, manufactured by the brand with the exact circuits and connectors designed for the model. It is the recommended choice for technicians who prioritize the reliability of electrical traces and factory components in a professional repair.

Frequently Asked Questions

Is this charging port compatible with the 4G version of the Galaxy A32?
No. The Galaxy A32 4G (SM-A325F) and the Samsung Galaxy A32 5G have different internal architectures and physically different charging boards, this part being exclusive to the 5G variant with reference GH96-14158A.

Does the part include the bottom microphone?
Being a complete sub charging board for this model, it integrates the native factory components present in the lower section of the chassis, including the call microphone.
