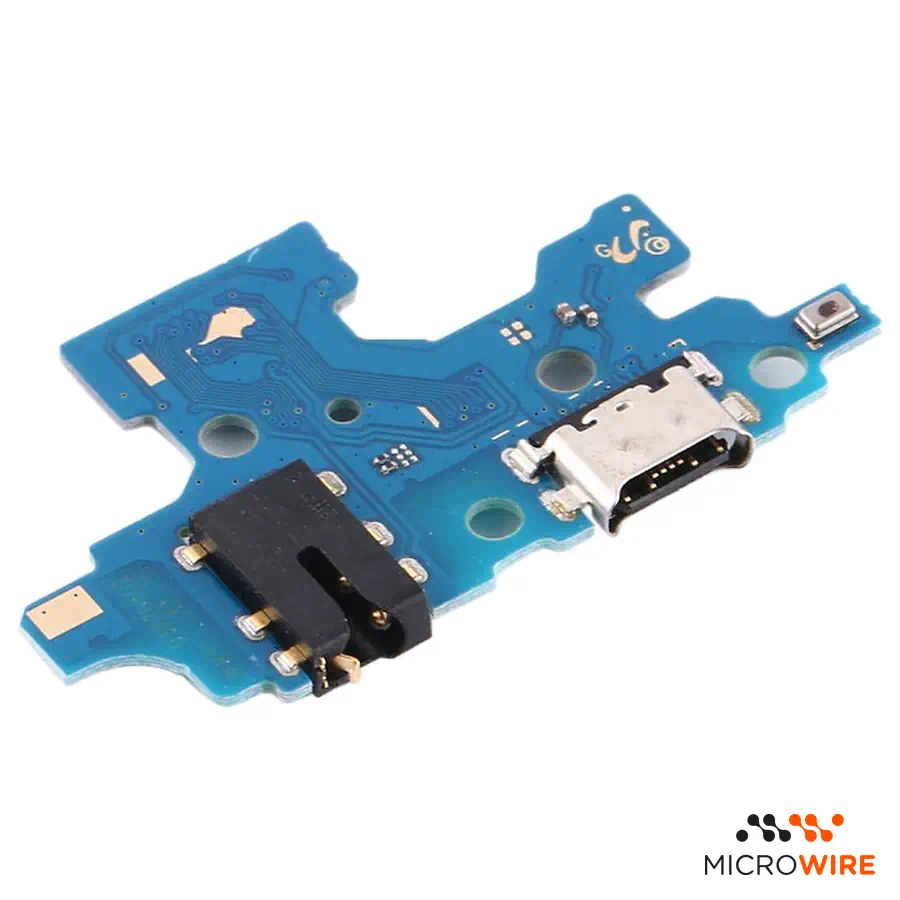

Samsung Galaxy A41 A415 Charging Port

Charging Port for Samsung Galaxy A41: Power and Data Restoration

This charging port is designed to replace the faulty module of the Samsung Galaxy A41. This is an original part that ensures the correct flow of energy and stable data transfer via USB. A new sub-board eliminates contact faults and interruptions during charging.

Technical Specifications

• Part type: Bottom board with USB-C charging connector
• Compatibility: Samsung Galaxy A41 (SM-A415F, SM-A415F/DS, SM-A415F/DSN)
• Part code: GH96-13379A
• Quality: Original - Pulled

When to Replace

• The USB-C cable feels loose or does not plug all the way into the port
• The phone does not charge or charges intermittently
• The computer does not recognise the USB connection for data transfer
• The device only receives power in a specific cable position - confirm the diagnosis

Notes for the Technician

• Test before applying: connect the part to the equipment and confirm its operation before permanently fixing or gluing it. Thus, if there is any problem, the return or warranty is handled quickly and simply.
• Difficulty: Medium
• Access is gained by removing the back cover and the intermediate frame fixed by screws
• Always disconnect the battery before handling the bottom board or the interconnection flex cable
• Back cover fixing adhesive sold separately
• Check the integrity of the coaxial antenna connector when uncoupling the board

What Distinguishes This Version

This unit is dismantled from another functional equipment and inspected by our technical team. It is the suitable choice for technicians looking to maintain the device manufacturing standard at a controlled cost.

Frequently Asked Questions

Is this charging board compatible with all variants of the Samsung Galaxy A41?
Yes, this part with reference GH96-13379A is compatible with the SM-A415 versions of the Samsung Galaxy A41.

Is it necessary to solder any component to install this part?
No, the replacement is modular and connects to the main board via FPC pressure connectors and antenna cable.
