Samsung Galaxy S23 Plus Charging Port

Charging Port for Samsung Galaxy S23 Plus: Charge and Data Restoration

This charging port for Samsung Galaxy S23 Plus re-establishes the correct flow of power and data transmission via cable. It is the suitable solution to replace the damaged secondary board or broken pins, reliably restoring the connection of the mobile's USB-C connector.

Technical Specifications

• Part type: Charging port and USB-C connector
• Compatibility: Samsung Galaxy S23 Plus (SM-S916B, SM-S916B/DS, SM-S916U, SM-S916U1, SM-S916W, SM-S916N, SM-S9160)
• Internal reference: MW-SM-S23PL
• Quality: Compatible

When to Replace

• The cable does not fit firmly or has play when plugged in
• The mobile does not recognise the charger or transfer data
• The device charges intermittently or in one position only
• Presence of moisture, corrosion or broken pins in the charging plug
• Persistent slow charging despite using a functional cable — confirm diagnosis

Notes for the Technician

• Test before fitting: connect the part to the equipment and confirm it works before fixing or gluing it permanently. Thus, if there is any issue, the return or warranty is handled quickly and simply.
• Repair difficulty: Medium
• The intervention requires prior removal of the glass back cover with adequate heat and plastic blades

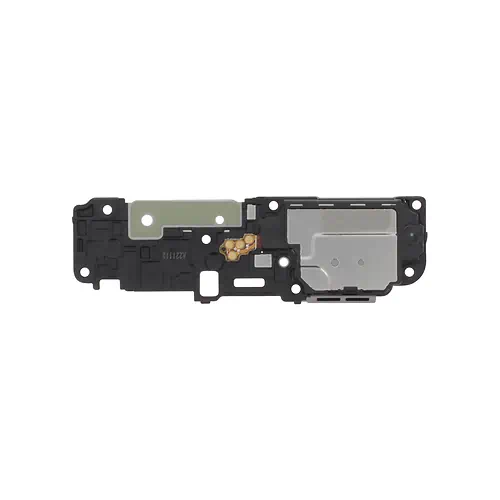

• Requires removing the lower loudspeaker to expose and unscrew the connector board
• Always disconnect the battery before unplugging the interconnection and antenna flex cables
• New adhesive for sealing the back cover sold separately

What Distinguishes This Version

This is a high-grade compatible part, carefully chosen by Micro Wire for reliable professional repairs. It represents the balanced option for technicians seeking assembly precision and effective restoration of the charging circuit at a controlled cost.

Frequently Asked Questions

Is this charging port compatible with the regular Galaxy S23?
No, this part is specifically intended for the Samsung Galaxy S23 Plus (SM-S916B), having dimensions and interconnection flex distinct from the base version.

Does replacing this board resolve cable reading failures on the computer?
Yes, provided the fault originates in the data lines of the damaged connector and not on the main board.
