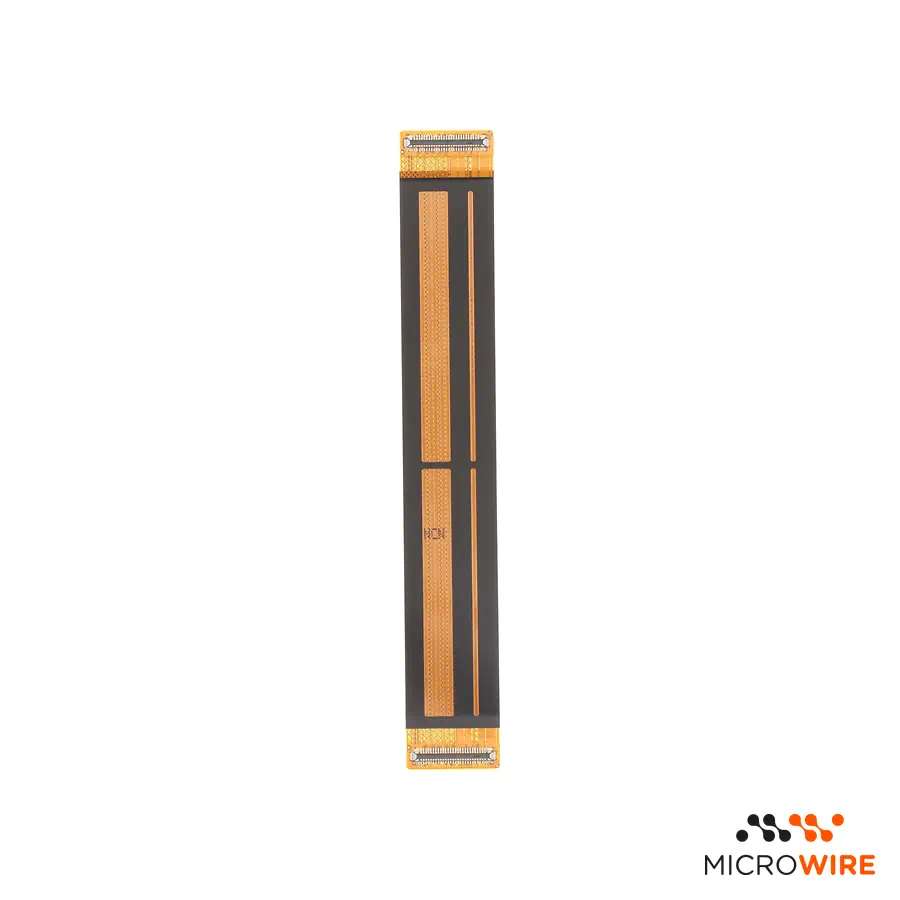

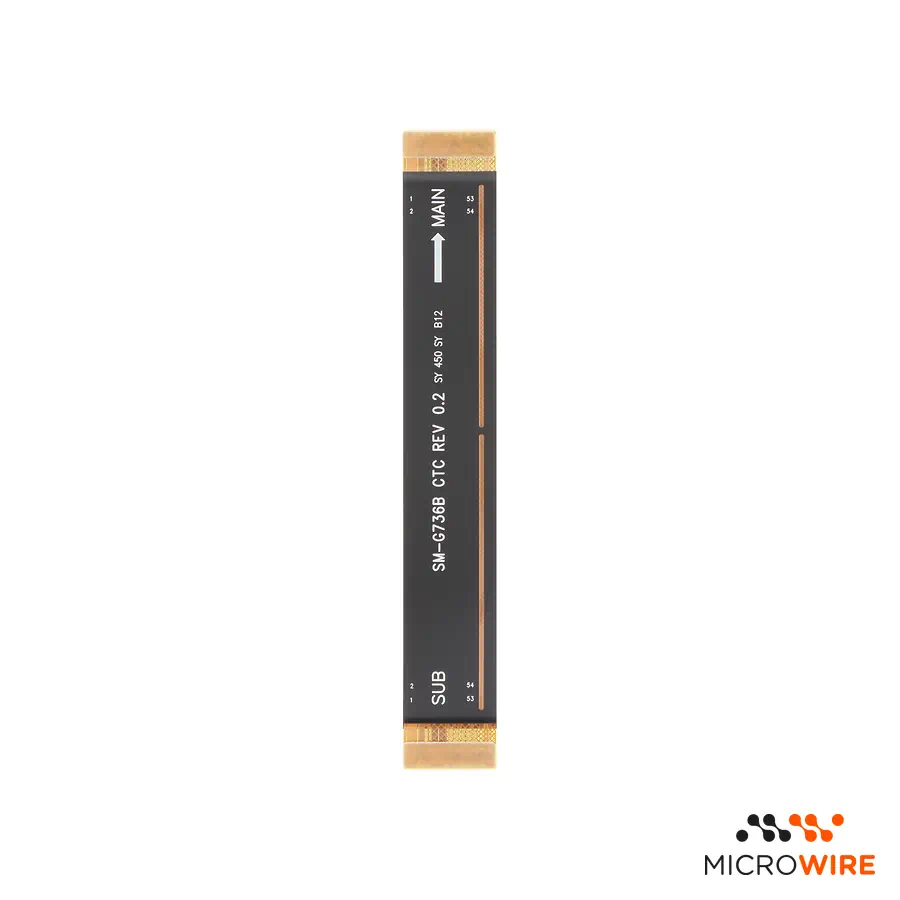

Samsung XCover 6 Pro Main Flex Service Pack

Main Flex for Samsung Galaxy XCover 6 Pro: Interconnecting Link Between Boards

The main flex for the Samsung Galaxy XCover 6 Pro mobile phone establishes the critical connection between the main board (motherboard) and the secondary charging board. This is an original part manufactured by the brand itself in a sealed service packaging, designed to restore data and power communication to the device. This interconnecting flex cable ensures the correct operation of functions dependent on the lower circuit.

Technical Specifications

• Part type: Main interconnecting flex cable (Main FPC)
• Compatibility: Samsung Galaxy XCover 6 Pro (SM-G736B, SM-G736B/DS, SM-G736U)
• Quality: Original — Service Pack

When to Replace

• The phone does not charge or charging shows intermittent faults — confirm diagnosis.
• The lower microphone or loudspeaker stopped working after a drop or impact.
• The computer does not recognise the USB connection of the device.
• The flex cable shows creases, tears or damaged FPC connectors after prior disassembly.

Notes for the Technician

• Test before applying: connect the part to the equipment and confirm its operation before securing or gluing it down permanently. Thus, if there is any issue, the return or warranty is handled quickly and simply.
• Difficulty level: Medium.
• Disassembly required: removal of the back cover, removable battery and loosening of the internal chassis to access the FPC connectors.
• Handle the snap-in connectors using plastic anti-static spudgers to prevent short circuits or pin damage.
• Ensure that the flex ribbon alignment lies flat in the chassis channel before closing the protective structure.

What Distinguishes This Version

This Service Pack version is supplied directly through the brand's support channels, ensuring exact physical tolerances and total electrical compatibility. It is the recommended choice for professional technicians seeking absolute reliability and full restoration of factory standards.

Frequently Asked Questions

Does this main flex solve charging problems on the Samsung Galaxy XCover 6 Pro?
Yes, if the fault is caused by broken traces in the connection cable between the lower board and the main board; if the physical USB-C connector is damaged, the problem may lie in the secondary board — confirm diagnosis.

Does the flex come with both connection ends included?
Yes, the flex cable has both FPC terminal ends for direct connection between the motherboard and the device sub-board.
