Xiaomi Poco F6 Charging Port

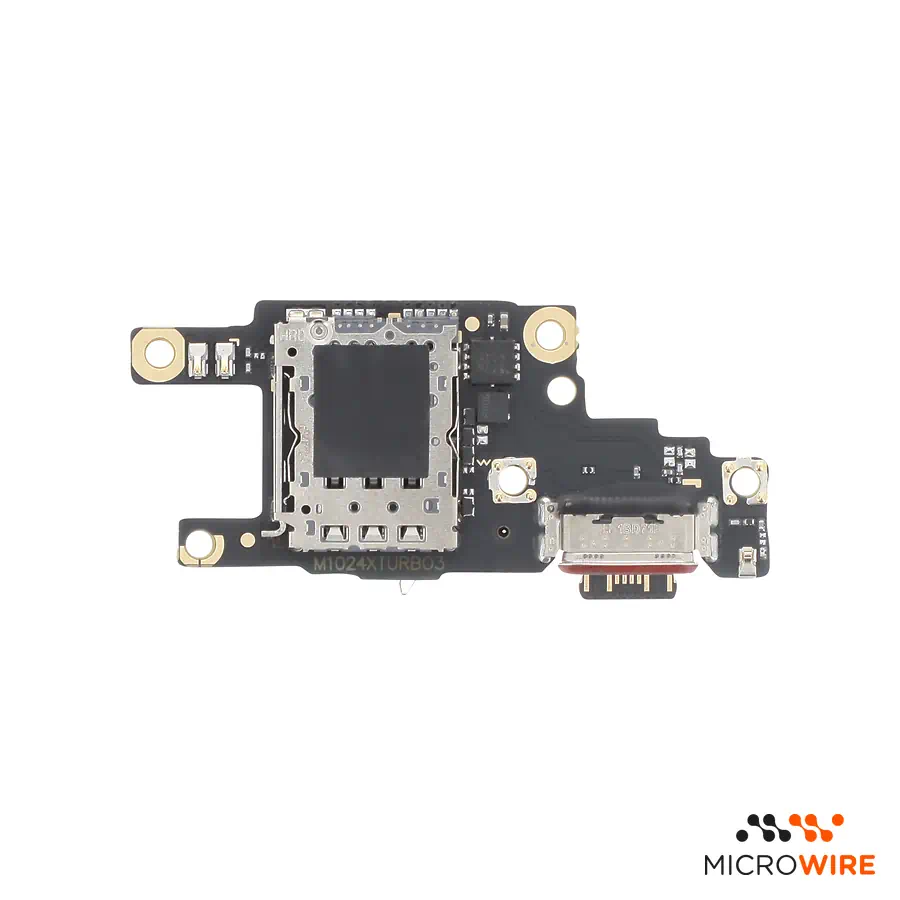

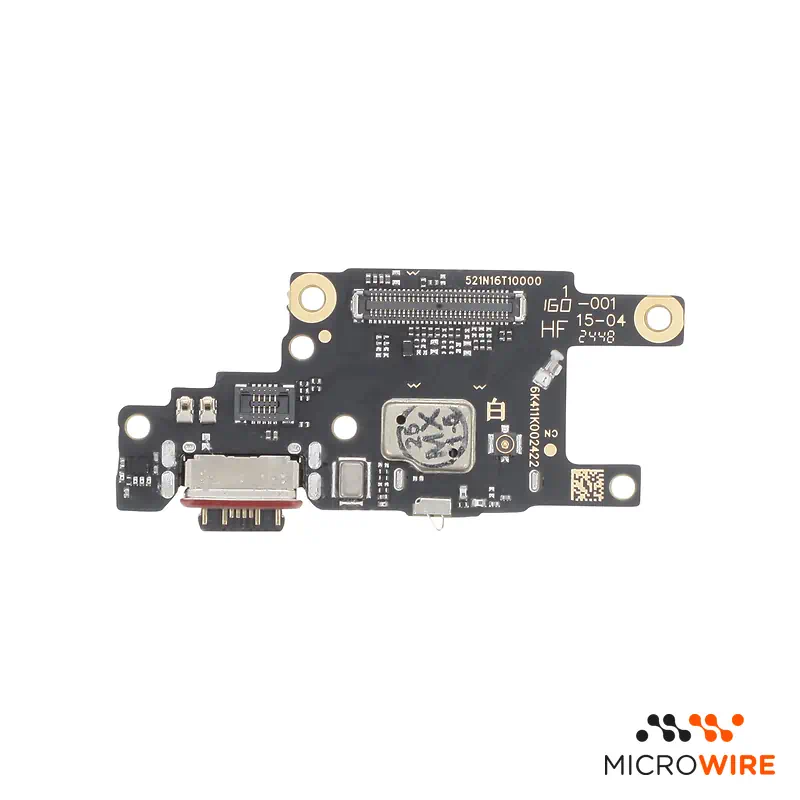

Xiaomi Poco F6 Charging Port: Replacement USB-C Connector

This charging port is specifically designed to restore power and data communication in the Xiaomi Poco F6. It replaces the damaged USB-C sub-board caused by wear, looseness or moisture, allowing you to recover stable mobile phone charging.

Technical Specifications

• Part type: Charging port (USB-C sub-board)
• Compatibility: Xiaomi Poco F6 (24069PC21G, 24069PC21I)
• Quality: Premium

When to Replace

• The phone does not detect the charging cable or loses connection at the slightest movement
• Bad contact in the USB-C connector that prevents regular charging
• The computer does not recognize the equipment via USB cable — confirm the diagnosis
• Input with physical damage, broken pins or visible corrosion

Notes for the Technician

• Test before applying: before fixing, confirm charging and, if applicable, data transfer and microphone. Thus, if there is any problem, the return or warranty is handled quickly and simply.
• Intervention difficulty: Medium.
• Access made by removing the back cover and dismantling the lower speaker shielding.
• Always disconnect the battery before handling or unplugging the intermediate flex cable from the lower board.
• Check the integrity of the microphone integrated into the board and test data transfer and charging before gluing the back cover; adhesive sold separately.

What Distinguishes This Version

This part integrates the Premium quality tier, representing the highest level available in the aftermarket market for this component. It is the recommended solution for technicians looking for a reliable and precisely assembled repair without compromising the client's budget.

Frequently Asked Questions

Does this charging port solve computer recognition issues on the Xiaomi Poco F6?
Yes, if the anomaly is caused by broken or oxidized data pins on the physical USB-C connector, replacing this secondary board resolves the failure.

Does the part include the complete lower sub-board circuit?
Yes, this is the complete lower board dedicated to the Xiaomi Poco F6, integrating the USB-C plug and the necessary connection points for the lower peripheral components.
