Xiaomi Poco F6 Pro Charging Port

Xiaomi Poco F6 Pro Charging Port: Stable Connection and Charging

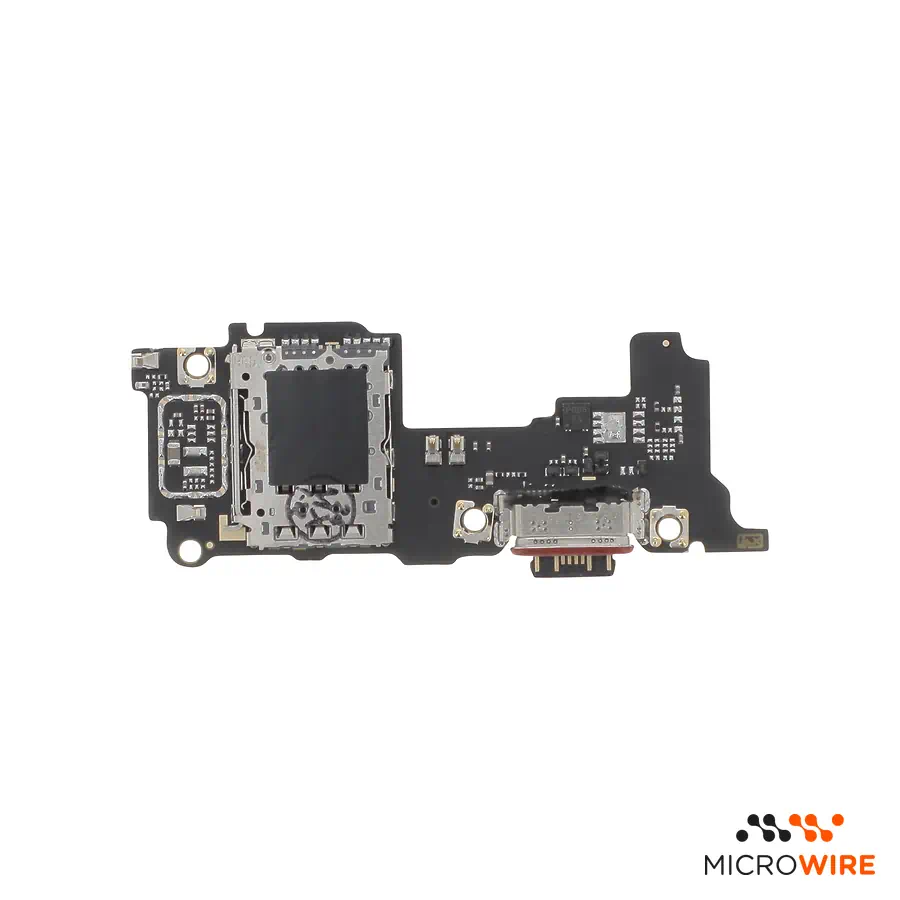

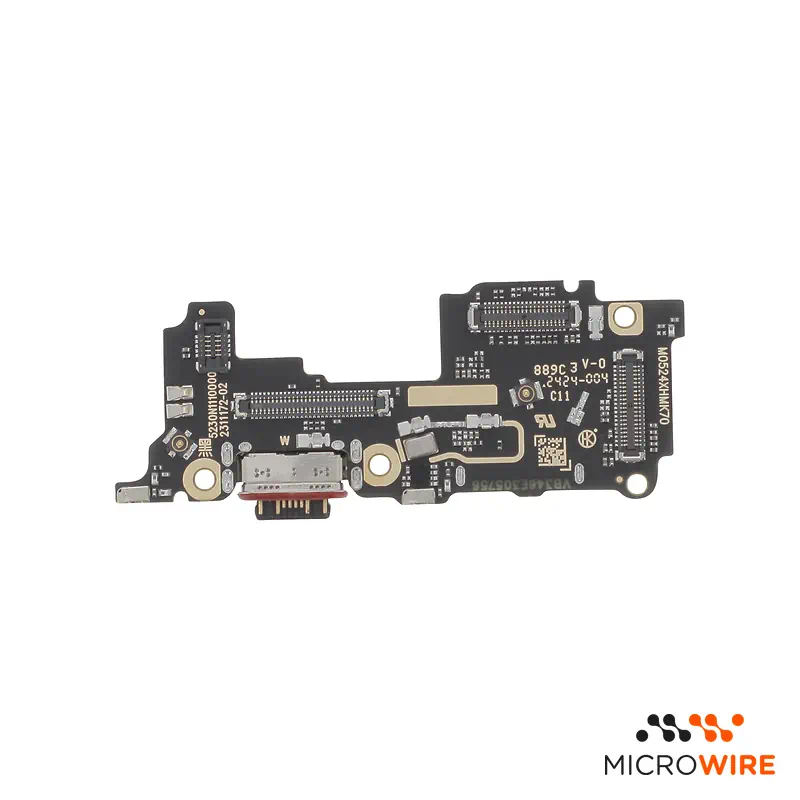

This charging port for Xiaomi Poco F6 Pro restores the physical connection of the mobile phone to the charging and data transfer cable. This is the charging board indicated to replace the connector damaged by wear, moisture or impact.

Technical Specifications

• Part type: USB-C charging port
• Compatibility: Xiaomi Poco F6 Pro (23113RKC6G)
• Quality: Premium

When to Replace

• The mobile phone does not detect the charger or only charges in a specific position
• Poor contact when connecting the USB-C cable to the connector
• Interruptions during data transfer to the computer
• The mobile phone does not charge — confirm the diagnosis

Notes for the Technician

• Test before applying: before fixing, confirm charging and, if applicable, data transfer and microphone. Thus, if there is any problem, the return or warranty is handled quickly and simply.
• Difficulty: Medium
• The intervention requires removing the back cover and the lower speaker module to access the board
• Disconnect the battery before handling intermediate flex cables and coaxial antenna connectors
• New adhesive to close the back cover is sold separately

What Distinguishes This Version

This part integrates the Premium quality level, the highest range available in the aftermarket market for this model. It is the appropriate choice for technicians and professionals looking for a reliable component for a rigorous repair.

Frequently Asked Questions

• Does this charging port fit the standard Xiaomi Poco F6?
  No, this component is intended exclusively for the Xiaomi Poco F6 Pro and is not compatible with the base Poco F6.
• Does replacing the charging board solve lower microphone issues?
  If the voice capture failure is associated with damage to the lower component, replacing the board can solve the problem, although it is recommended to previously rule out software anomalies or dirt in the grills.
