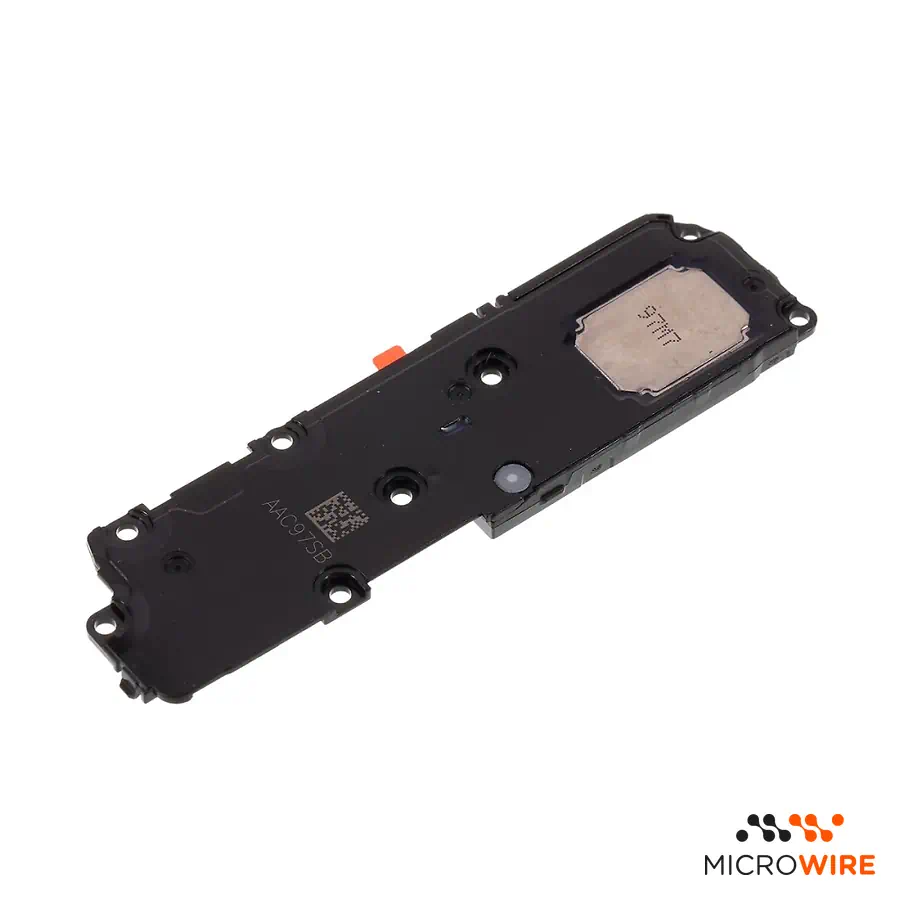

Buzzer Loudspeaker Huawei P40 Lite 4G

Buzzer Loudspeaker for Huawei P40 Lite 4G: Audio and Loudspeaker Restoration

This buzzer loudspeaker is designed to resolve sound reproduction faults in the Huawei P40 Lite 4G. The part replaces the damaged lower sound module, restoring the clear emission of ringtones, alerts, and multimedia content.

Technical Specifications

• Part type: Lower buzzer loudspeaker
• Compatibility: Huawei P40 Lite 4G (JNY-L21A, JNY-L01A, JNY-L21B, JNY-L22A, JNY-L02A, JNY-L22B)
• Reference: SKP-HWP40LITE-4G
• Quality: Premium

When to Replace

• The phone does not emit sound when receiving calls or notifications
• Distorted multimedia audio, with noise or a metallic effect
• No sound in loudspeaker mode during calls
• Excessively low volume even at maximum level — confirm the diagnosis

Notes for the Technician

• Test before applying: connect the part to the equipment and confirm its operation before fixing or gluing it permanently. Thus, if there is any problem, the return or warranty is handled quickly and simply.
• Installation difficulty: Medium
• Accessing the module requires removing the back cover and the plastic middle frame
• Disconnect the battery before unscrewing and removing the lower acoustic block
• Clean the sound output grille on the chassis before positioning the new component
• Fixing adhesive for the back cover sold separately

What Distinguishes This Version

This is a Premium level part, the highest range available in the replacement market for this model. It is the indicated choice for professional technicians seeking acoustic reliability and a perfect fit in the chassis.

Frequently Asked Questions

Is this buzzer compatible with the Huawei P40 Lite 5G?
No. The internal structure of the Huawei P40 Lite 4G differs from the 5G version, so this component is exclusively intended for the 4G model.

Does this module resolve audio problems during ear calls?
No. This speaker is the lower buzzer for loudspeaker and multimedia; the sound near the ear depends on the upper earpiece.
